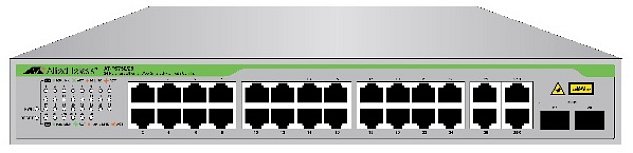

Allied Telesis 24xFE smart+2xGb+2SFP AT-FS750/28

Parametry - Allied Telesis 24xFE smart+2xGb+2SFP AT-FS750/28

AT-FS750/28: 24-port 10/100TX + 2 10/100/1000T + 2 SFP/1000T Combo Ports
OVERVIEW These advanced Allied Telesis WebSmart switches integrate the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective, yet secure and reliable, solution for users to integrate management at the edge of their networks. With user-friendly web-based management, the FS750 Series is an ideal option for integrating simple management and security into a network solution.
TECHNICAL SPECS VLAN *IEEE 802.1Q tagged *Port-based *Up to 256 groups Quality of Service Classification *IEEE 802.1p tagging *Port-based priority *Four priority queues per port IP Multicast Support (IPv4) *IGMP snooping (v1/v2) *Static multicast group (up to 256) *Spanning-Tree, IEEE 802.1d/w/s IEEE 802.3ad Link Aggregation IEEE 802.1x Port-based and MAC-based *Network Access Control *Local authentication server (MD5 only) *Remote authentication through RADIUS *Dynamic VLAN assignment RADIUS Client DHCP Client DHCP Snooping Statistics Charts in Web Jumbo Frames - up to 10K Others *IEEE 802.3x flow control or HOL (†) blocking prevention († when flow control is off) *Port mirroring *Destination MAC filtering *Ingress/egress rate limiting *Broadcast storming control *100/1000 SFP supported Management Features *Web-based configuration *Discovery support *SNMP trap view *LLDP *Firmware upgrade by FTP and HTTP *Configuration backup/restore by FTP and HTTP *Factory reset *Password access control and restricted IP access *List *SNMPv1/v2c/v3 *Management IP: DHCP client for Web *Management and static IP setting *Syslog support *System time configuration (SNTP, manual) MIBs *RFC 1213 MIB-II *RFC 1643 Ethernet MIB *RFC 1493 Bridge MIB *RFC 2131 DHCP client *Private Enterprise MIB (Allied Telesis provides the spec) RMON Groups (1, 2, 3, 9) *Stats *History *Alarms *Events ACL *200 entries (shared)
