Aruba 8400 1 MM 3 PS 2 FM 32/8 Bdl

Parametry - Aruba 8400 1 MM 3 PS 2 FM 32/8 Bdl

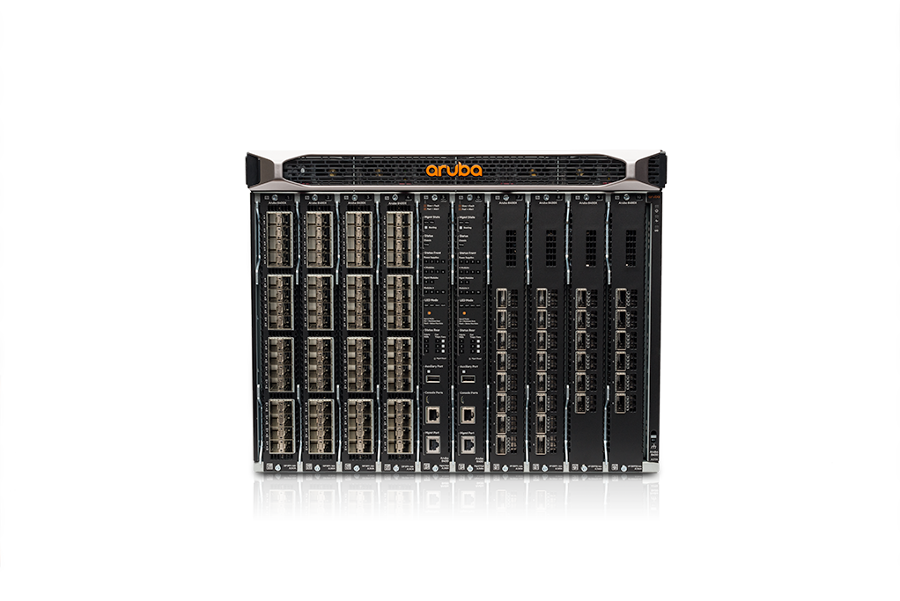

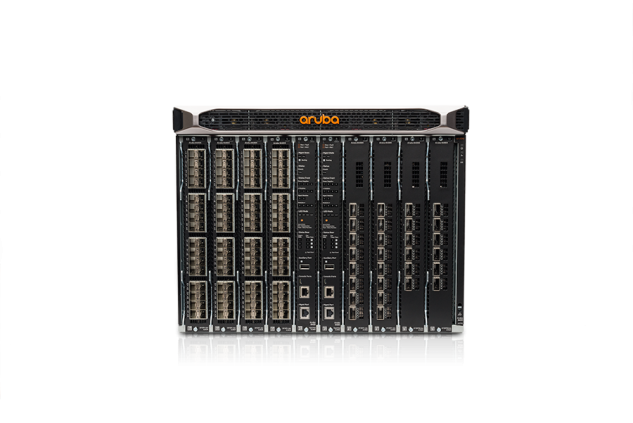

10-slot horizontal chassis, 8U, with 8 I/O , 2 management module slots, 3 switch fabric slots, 4 power supply slots. Includes one 32-port 10G module, one 6-port 40/100G IO module, 2 fabric modules, one management module, three power supplies, three fan trays each with six fans, cable manager, and 2-post rack kit.
specifikace: Ports 8 I/O module slots Ships with 32 10GbE (SFP/SFP+) and 6 40/100GbE (QSFP28) ports. Supports a maximum of 256 10GbE (SFP/SFP+) ports, or 64 40GbE (QSFP+) ports, or 48 ports 40/100GbE (QSFP28), or a combination. Throughput 8.6 Bpps Maximum, depending on model and configuration Switching capacity 19.2 Tbps Maximum, depending on model and configuration Management features Out-of-band management (serial RS-232C), SNMP Manager, Telnet, terminal interface (serial RS-232C), modem interface, IEEE 802.3 Ethernet MIB, Ethernet Interface MIB Input voltage 90 – 140 / 180 – 264 VAC Power consumption 2750 W Minimum dimensions (W x D x H) 33 x 44.2 x 66 cm Weight 74 kg
odkaz na stránky výrobce: https://www.hpe.com/ca/en/product-catalog/networking/networking-switches/pip.specifications.aruba-8400-1x-mgmt-mod-3x-ps-2x-8400x-fabric-mod-1x-32p-10g-mod-and-1x-8p-40g-mod-bundle.1010137524.html
