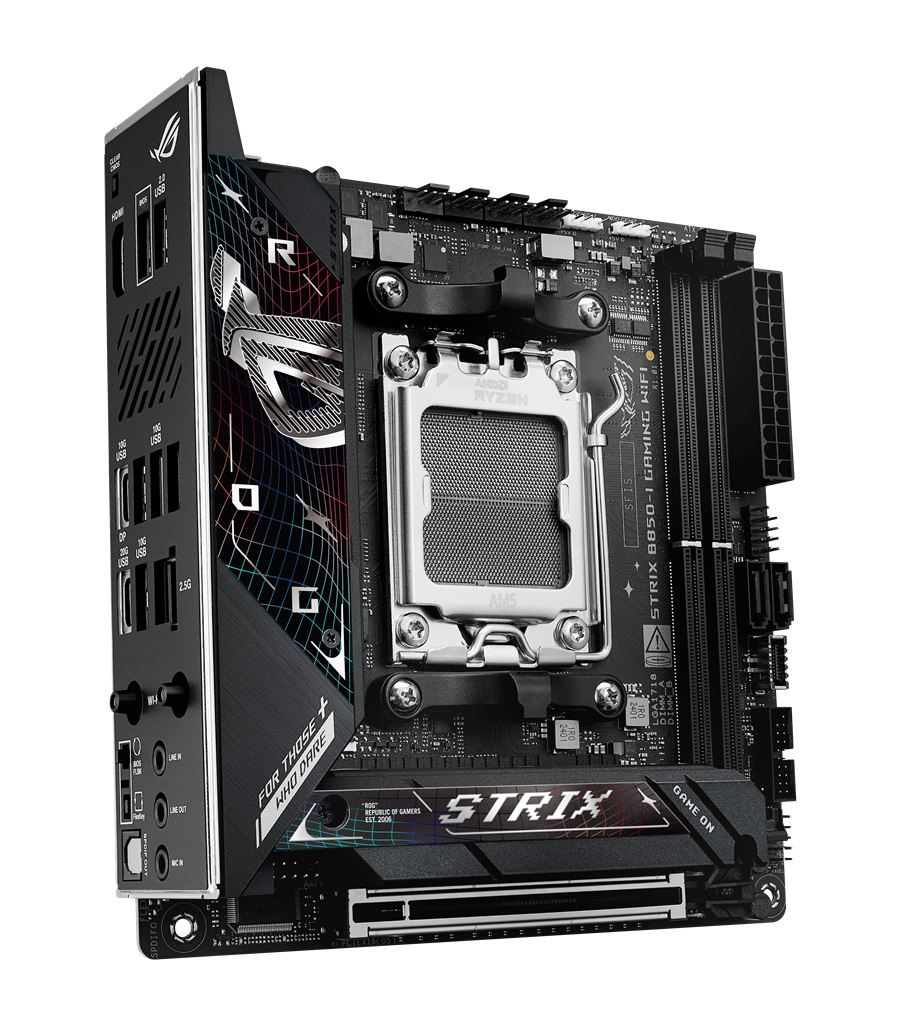

ASUS ROG STRIX B850-I GAMING WIFI

Parametry - ASUS ROG STRIX B850-I GAMING WIFI

ROG STRIX B850-I Gaming WIFI * ATX Form Factor
CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset: AMD B850
Paměť: *2 x DIMM slot, max 96GB, DDR5 *Dvoukanálová paměťová architektura *Podpora rozšířených profilů AMD pro přetaktování (EXPO™) *Podpora modulů DIMM Flex *Rozšířený profil paměti ASUS (AEMP) *ECC a Non-ECC Un-buffered DIMM
Grafické porty: *1 x HDMI™ port *1 x USB 10Gbps ports support USB Type-C® display outputs
Rozšiřující sloty: AMD Ryzen™ 9000 & 7000 Series Desktop Processors* *1 x PCIe 5.0 x16 slot(s) AMD Ryzen™ 8000 Series Desktop Processors* *1 x PCIe 4.0 x16 slot(s)
Úložný prostor: Total Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors *M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors *M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Ethernet: *1 x Intel® 2.5Gb Ethernet *ASUS LANGuard
Připojení a Bluetooth: *Wi-Fi 7 *2x2 Wi-Fi 7 (802.11be) *Supports 2.4/5/6GHz frequency band** *Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. *Bluetooth® v5.4***
USB: Zadní USB (Total 8 ports) *1 x USB 20Gbps port(s) (1 x USB Type-C®) *5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®) *2 x USB 2.0 port(s) (2 x Type-A) Přední USB (Total 5 ports) *1 x USB 10Gbps *1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports *1 x USB 2.0 header(s) support(s) 2 additional USB 2.0 ports *USB Type-C® power delivery output: max. 5V/3A
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 *SupremeFX Shielding Technology *Savitech SV3H712 AMP *Rear optical S/PDIF out port *Premium audio capacitors *Unique de-pop circuit *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

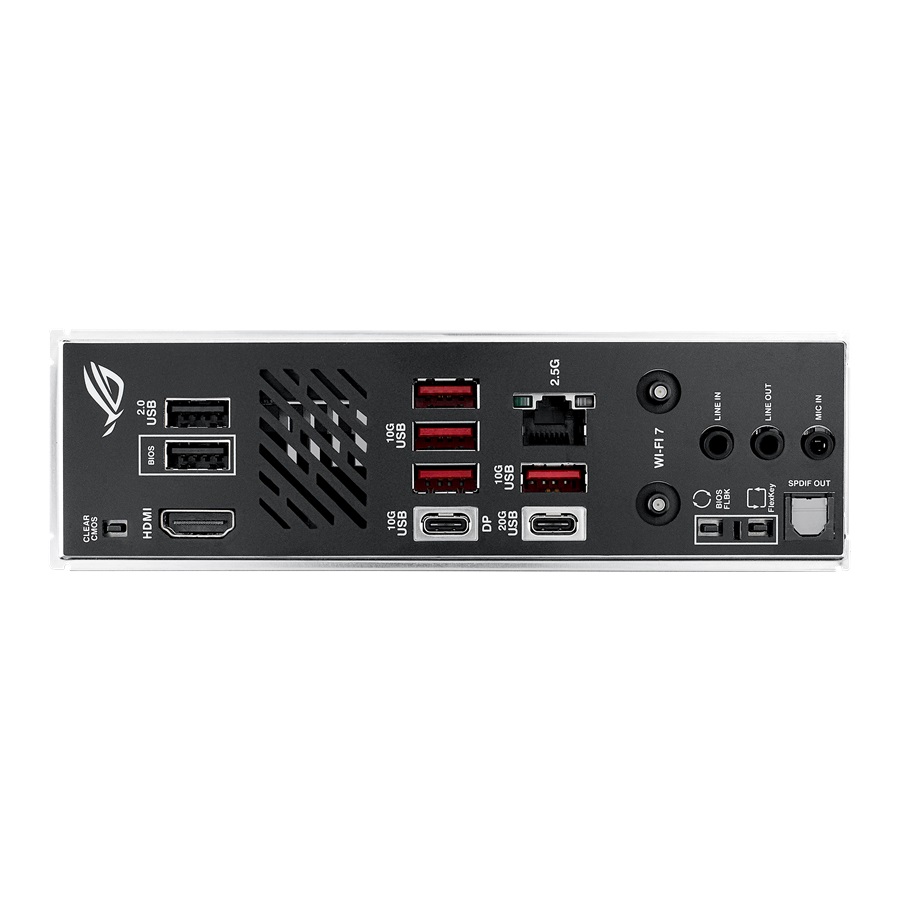

Vstupy/výstupy zadního panelu: *1 x USB 20Gbps port(s) *5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C® with DP Alt mode) *2 x USB 2.0 port(s) (2 x Type-A) *1 x HDMI™ port *1 x Wi-Fi module *1 x Intel® 2.5Gb Ethernet port *3 x Audio jacks *1 x Optical S/PDIF out port *1 x BIOS FlashBack™ button *1 x Clear CMOS button *1 x FlexKey button
Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header(s) *1 x 4-pin AIO Pump header(s) *1 x 4-pin Chassis Fan header(s) *1 x Extra Flow Fan header(s) Napájení: *1 x 24-pin Main Power connector *1 x 8-pin +12V CPU Power connector Úložiště: *2 x M.2 slots (Key M) *2 x SATA 6Gb/s ports USB: *1 x USB 10Gbps connector (support(s) USB Type-C® ) *1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports *1 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Různé: *2 x Addressable Gen 2 header(s) *1 x CPU Over voltage jumper *1 x Front Panel Audio header (F_AUDIO) *1 x 10-1 pin Front System Panel header *1 x Thermal Sensor header

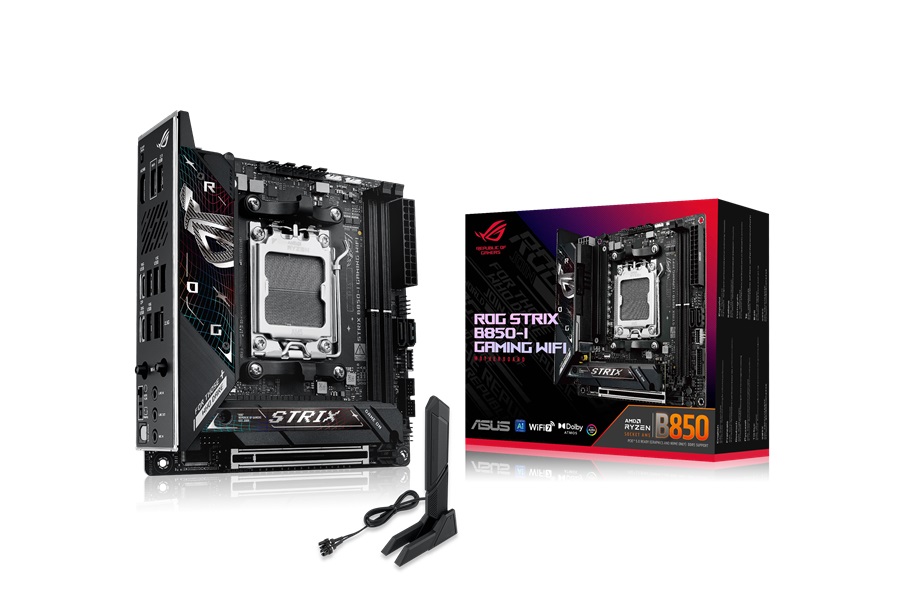

Příslušenství: Kabely: *1 x Panel cable *1 x ROG USB2.0 splitter cable *2 x SATA 6Gb/s cables Různé: *1 x ASUS WiFi Q-Antenna *1 x Cable ties package *1 x M.2 backplate Q-Latch package(s) *1 x M.2 Q-Slide package *1 x ROG key chain *1 x M.2 backplate rubber package(s) *1 x Screw package(s) for M.2 SSD Dokumenty: *1 x Quick start guide
