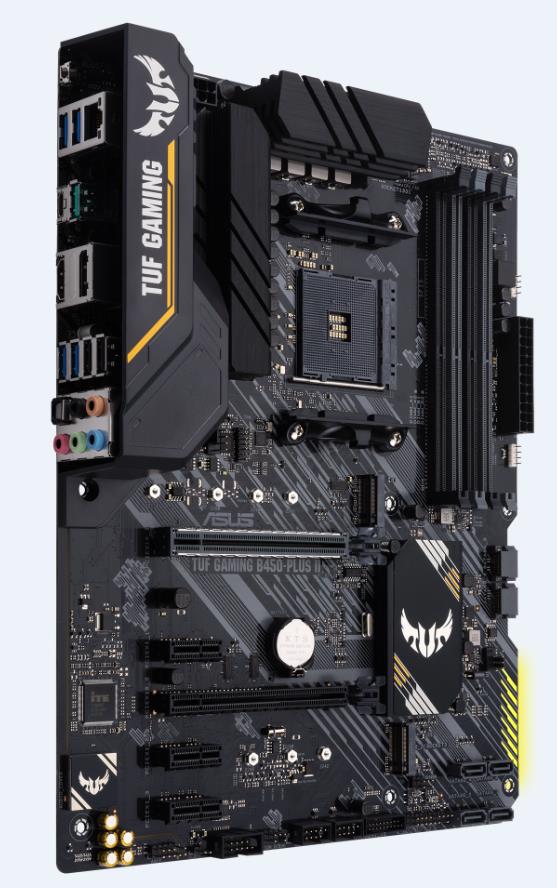

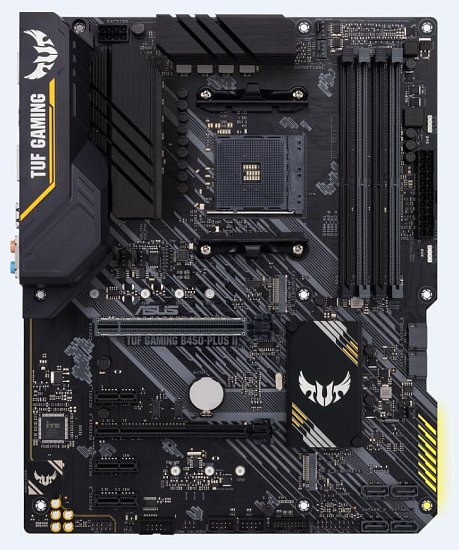

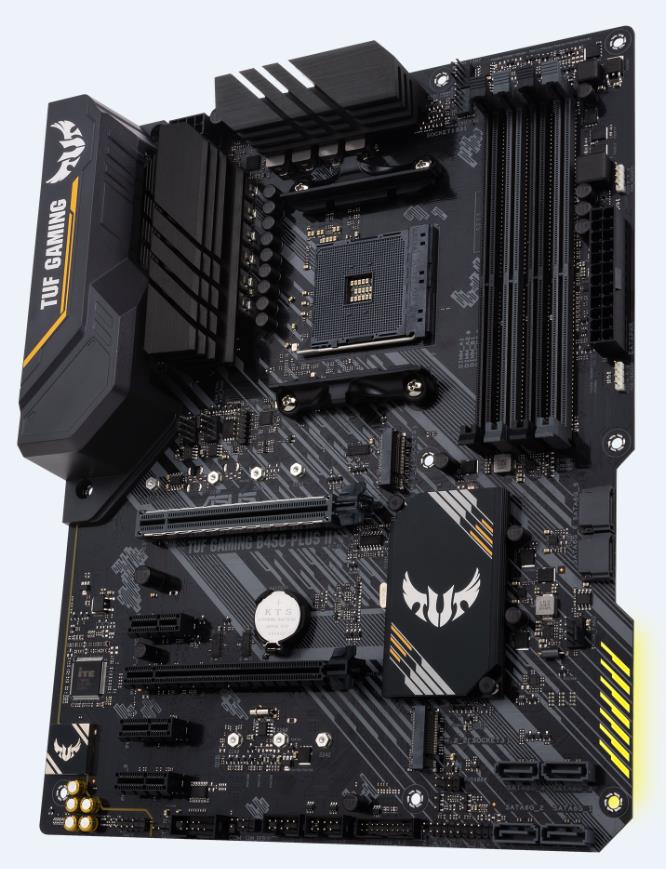

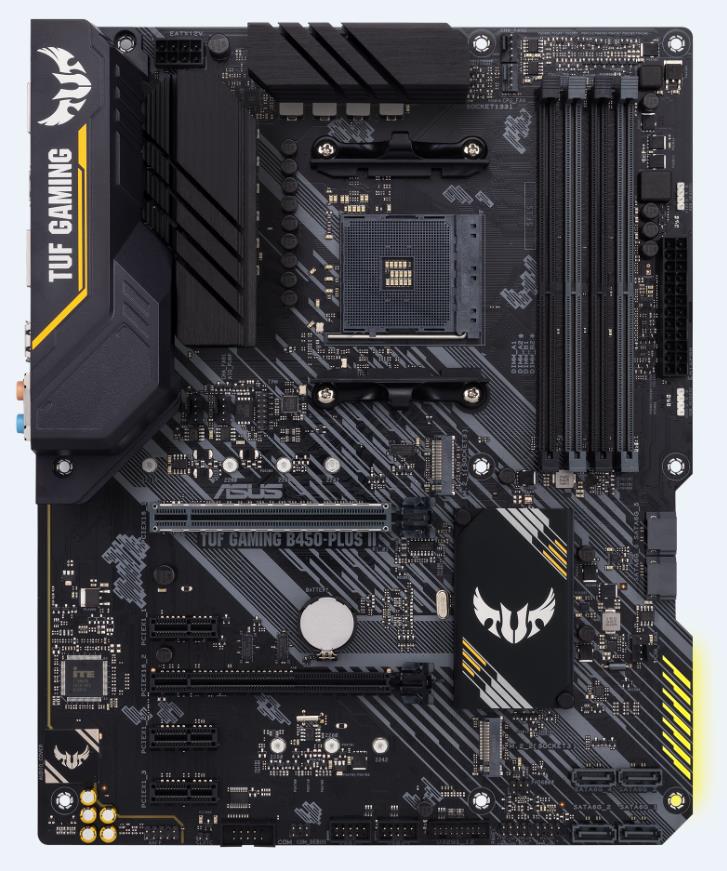

ASUS TUF GAMING B450-PLUS II

Popis - ASUS TUF GAMING B450-PLUS II

Chipset: AMD B450
Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors
Patice procesoru: AM4
Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti: 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode) support varies by CPU
Grafická karta: *Integrated Graphics Processor (na základě procesorů 2. a 1. generace AMD s Radeon Grpahics/Athlon)
Multi GPU: AMD CrossFireX™ Technology
Zvuková karta: *Realtek® ALC S1200A 8-Channel High Definition Audio CODEC
Síťová karta: *Realtek® L8200A
Rozšiřující sloty: *
3rd/2nd/1st Gen AMD Ryzen™ Processors *1x PCIe 3.0/2.0 x16 (x16 mode) *
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors *1x PCIe 3.0/2.0 x16 (x8 mode) *
AMD Athlon™ with Radeon™ Vega Graphics Processors *1x PCIe 3.0/2.0 x16 (x4 mode) *
AMD B450 chipset *1x PCIe 2.0 x16 (max at x4 mode) *3x PCIe 2.0 x1
RAID řadič: 0, 1, 10
SATA: *6x SATA 6Gb/s ports
M.2: *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode)
USB: *
zadní USB porty ( celkem 8 ) *2x USB 3.2 Gen 2 port(s)(1 x USB Type-C®)(1 x Type-A +0 x ) *4x USB 3.2 Gen 1 port(s)(4 x Type-A) *2x USB 2.0 port(s)(2 x Type-A) *
přední USB porty ( celkem 6 ) *2x USB 3.2 Gen 1 port(s) *4x USB 2.0 port(s)
Interní porty: *1x CPU Fan connector(s) (1 x 4 -pin) *3x Chassis Fan connector(s) (3 x 4 -pin) *1x AIO_PUMP connector (1 x 4 -pin) *2x Aura RGB Strip Header *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 2.0 x 4 mode) *1x SPI TPM header *6x SATA 6Gb/s connector(s) *1x 24-pin EATX Power connector(s) *1x 8-pin ATX 12V Power connector(s) *1x Front panel audio connector(s) (AAFP) *1x System panel(s) *1x Clear CMOS jumper(s) *1x COM port header

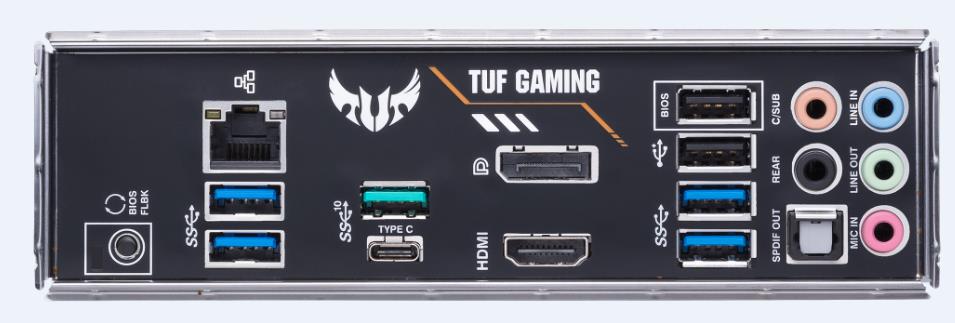

Externí porty: *1x DisplayPort *1x HDMI *1x LAN (RJ45) port(s) *2x USB 3.2 Gen 2 (1 x USB Type-C®+1 x Type-A) *4x USB 3.2 Gen 1 Type-A *2x USB 2.0 *5x Audio jack(s) *1x BIOS FlashBack™ Button(s)

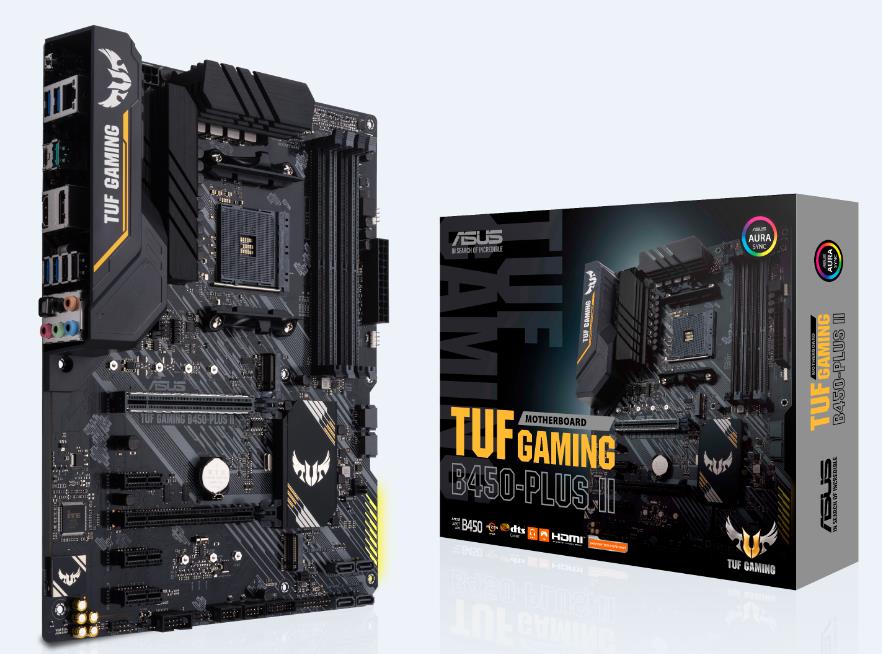

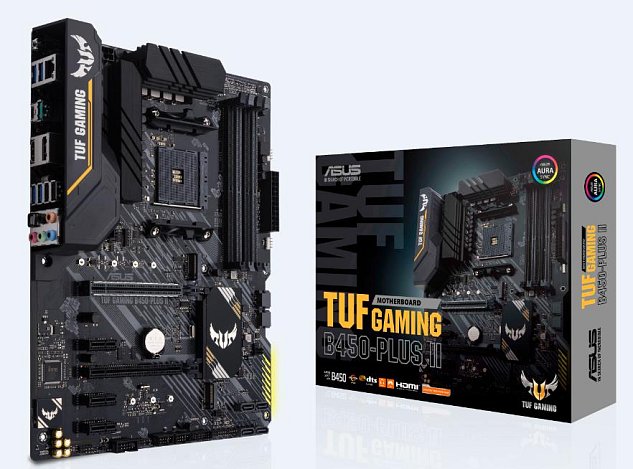

Obsah balení: *User's manual *I/O Shield *2x SATA 6Gb/s cable(s) *1x M.2 Screw Package *1x Supporting DVD *1x TUF GAMING Sticker *1x TUF Certification card(s)
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
