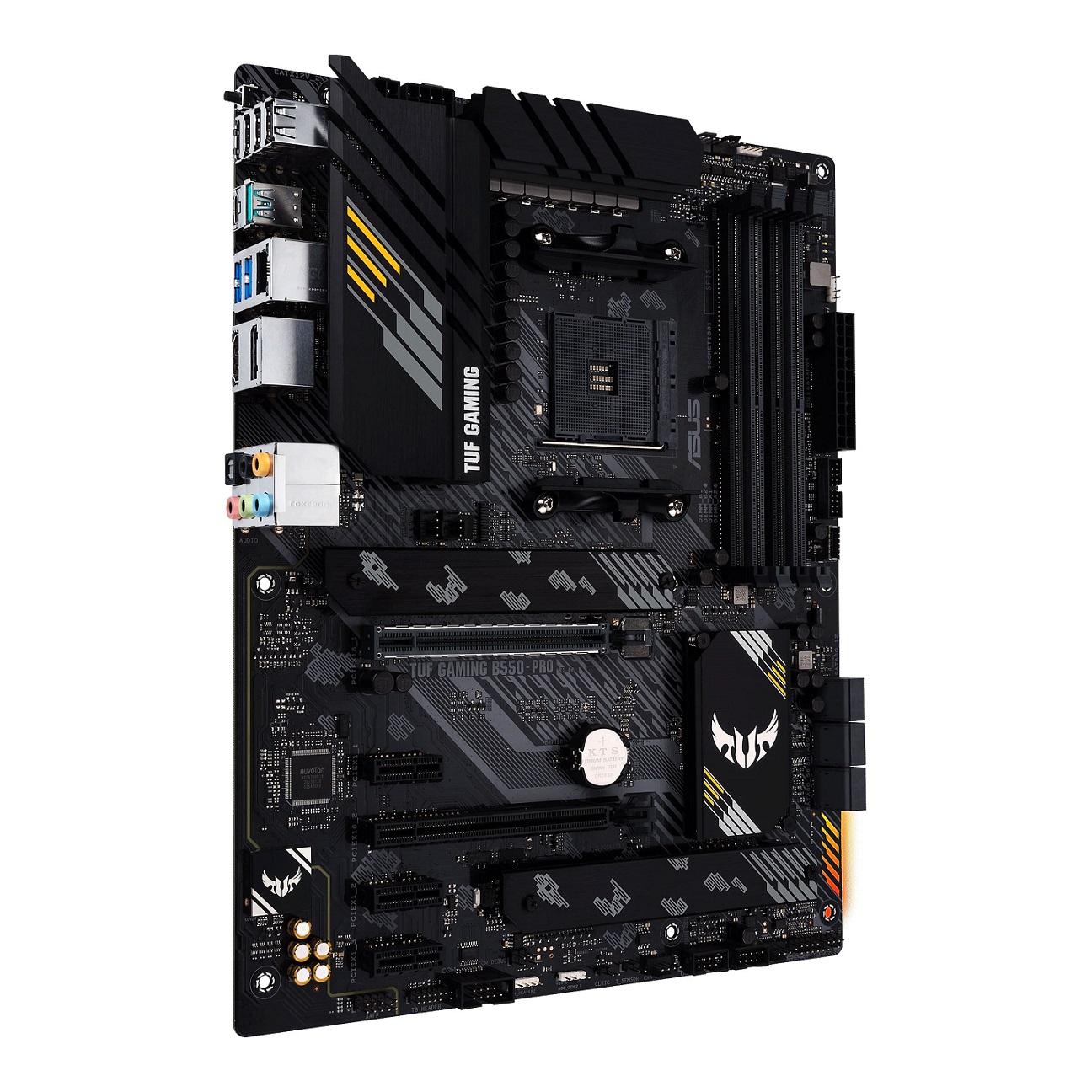

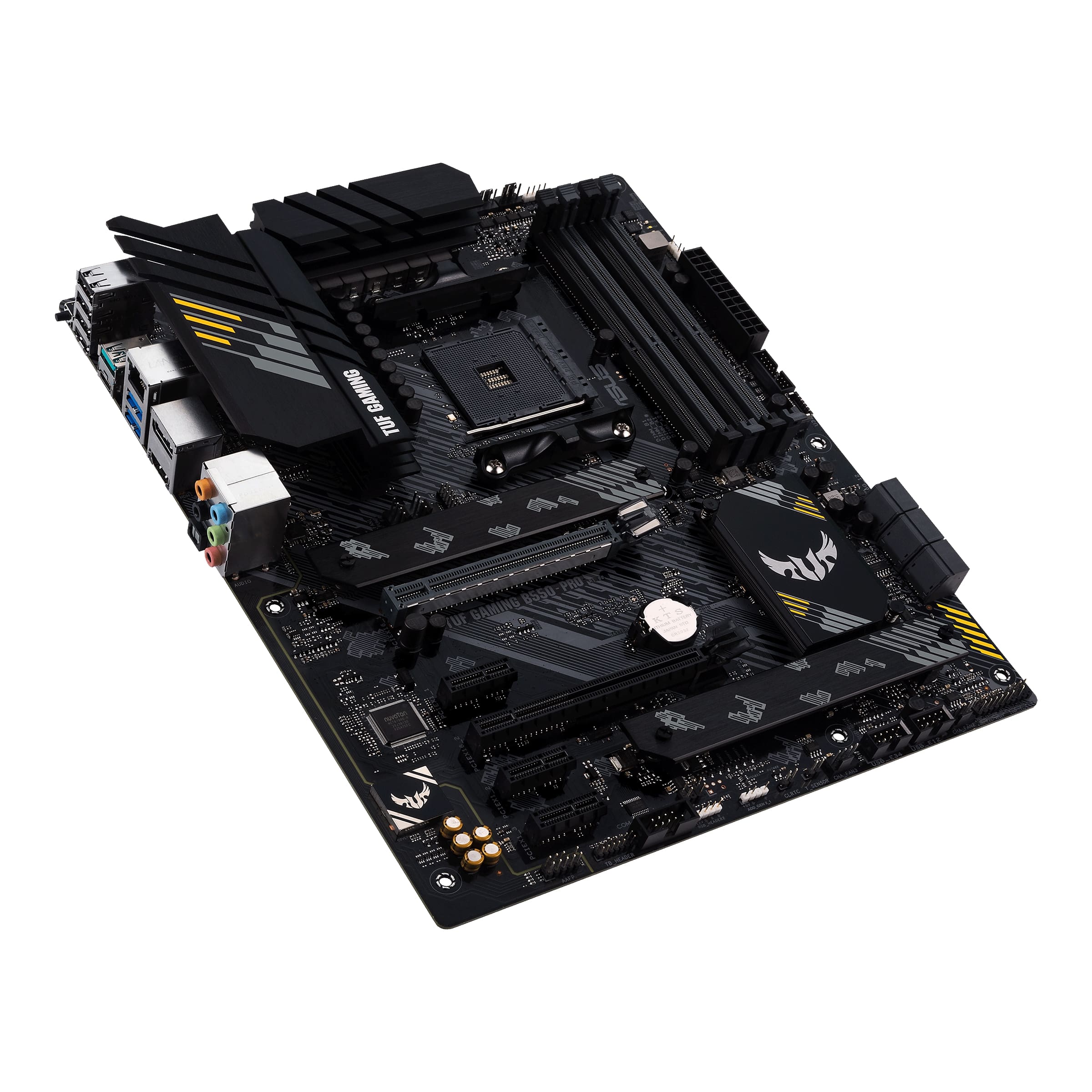

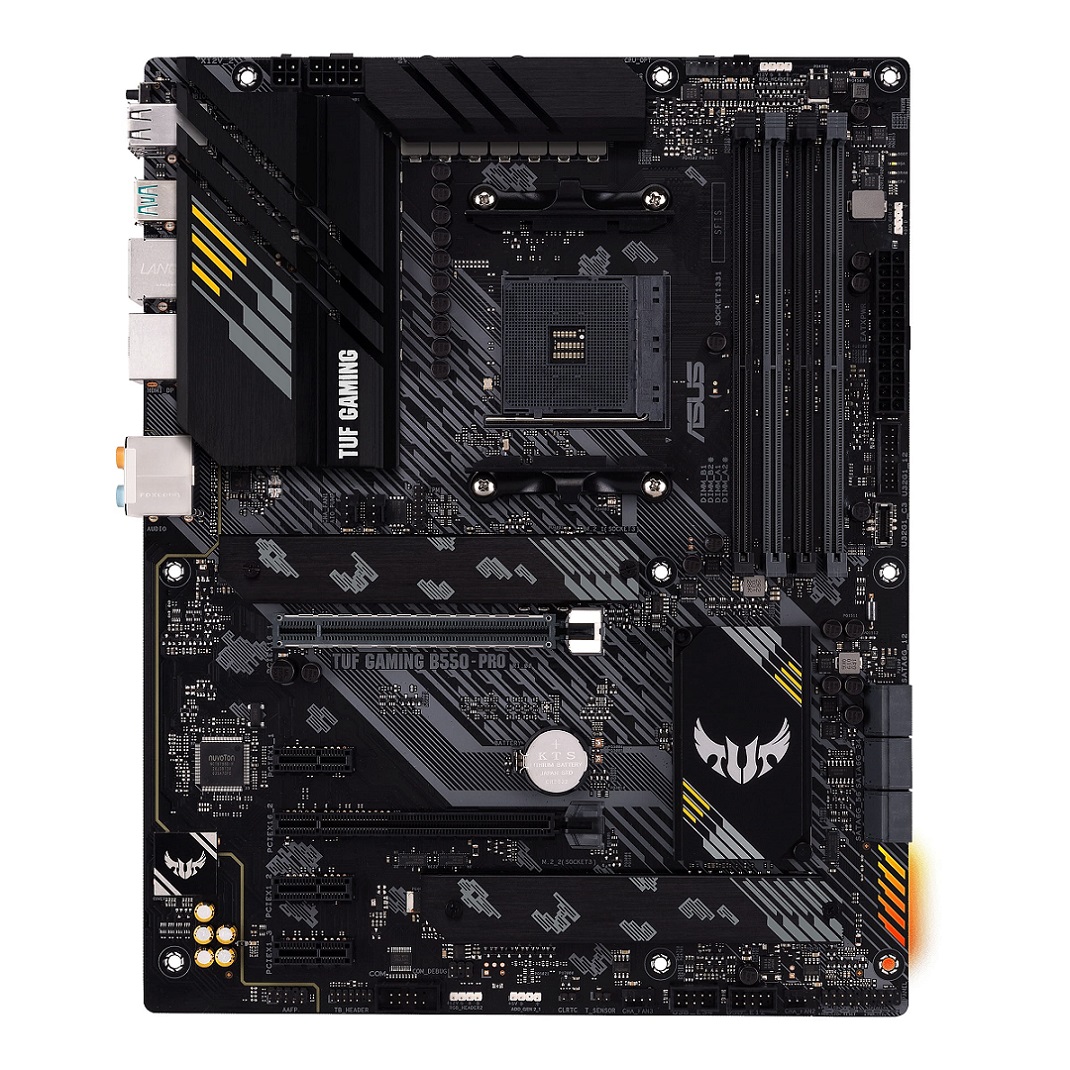

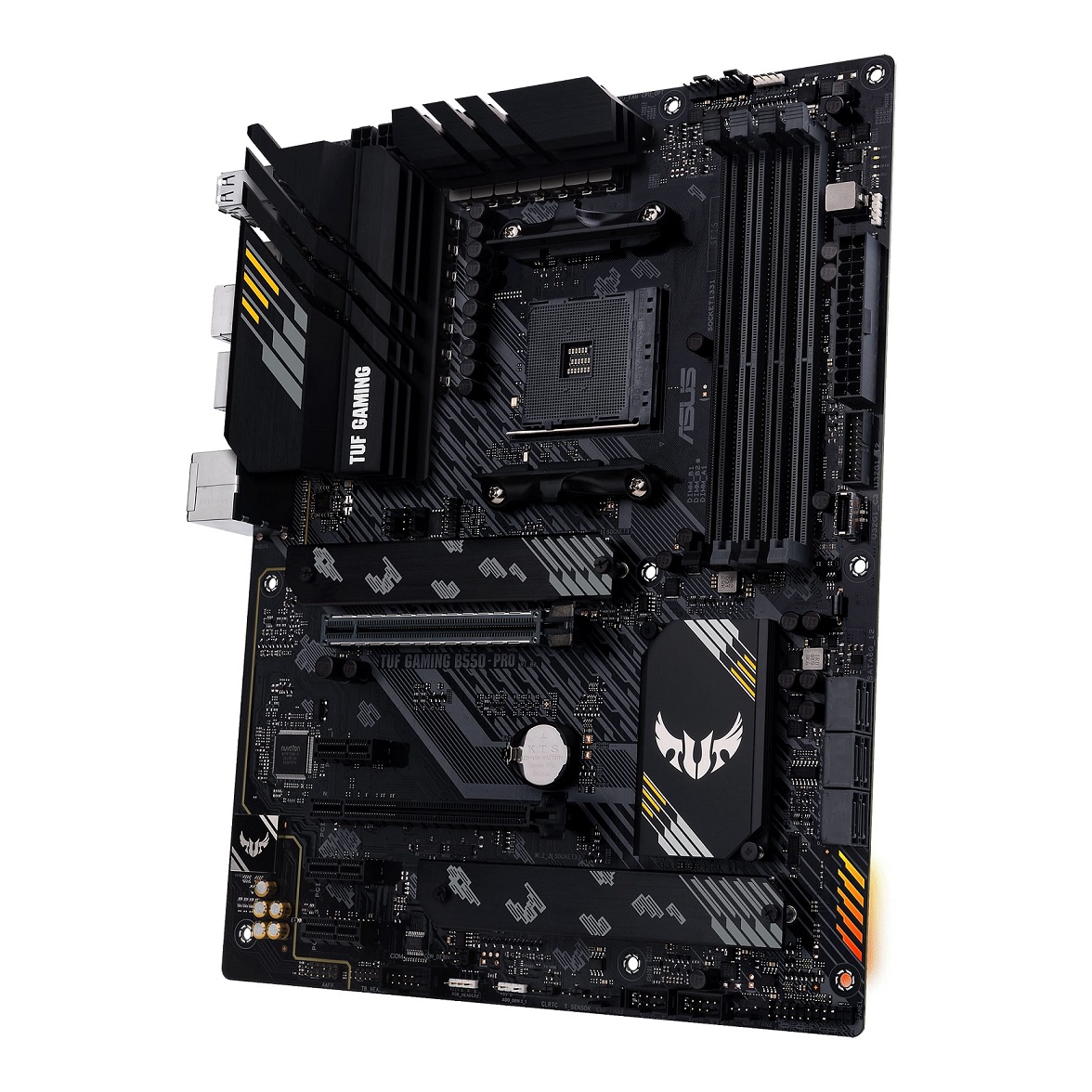

ASUS TUF GAMING B550-PRO

Parametry - ASUS TUF GAMING B550-PRO

Chipset: AMD B550
Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Patice procesoru: AM4
Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti: *AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *AMD Ryzen™ 4000 G-Series Processors 5100(O.C)/4866(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode) support varies by CPU
Grafická karta: *Integrated Graphics Processor (na základě procesoru)
Multi GPU: AMD 2-Way CrossFireX Technology
Zvuková karta: *Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
Síťová karta: *Realtek RTL8125B 2.5Gb Ethernet (TUF LANGuard)
Rozšiřující sloty: *
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors *1x PCIe 4.0 x16 (x16 mode) *
AMD Ryzen™ 4000 G-Series Processors *1x PCIe 3.0 x16 (x16 mode) *
AMD B550 Chipset *1x PCIe 3.0 x16 (x4 mode) *3x PCIe 3.0 x1
RAID řadič: 0, 1, 10
SATA: *6x SATA 6Gb/s
M.2: *
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : *1x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) *
AMD Ryzen™ 4000 G-Series Processors : *1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support *
AMD B550 Chipset : *1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
USB: *
zadní USB porty ( celkem 8 ) *2x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®) *2x USB 3.2 Gen 1 port(s)(2 x Type-A) *4x USB 2.0 port(s)(4 x Type-A) *
přední USB porty ( celkem 7 ) *3x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C) *4x USB 2.0 port(s)(4 x Type-A)
Interní porty: *1x CPU Fan connector(s) *1x CPU OPT Fan connector(s) *3x Chassis Fan connector(s) *1x AIO_PUMP connector *2x Aura RGB Strip Headers *2x Addressable Gen 2 header(s) *1x USB 3.2 Gen 1 front panel TypeC™ connector *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x M.2 with E key for Wi-Fi module *1x SPI TPM header *6x SATA 6Gb/s connector(s) *1x Thunderbolt header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin ATX 12V Power connector(s) *1x 4-pin ATX 12V Power connector(s) *1x Front panel audio connector(s) (AAFP) *1x Thermal sensor connector(s) *1x Clear CMOS jumper(s) *1x System panel connector *1x COM port header

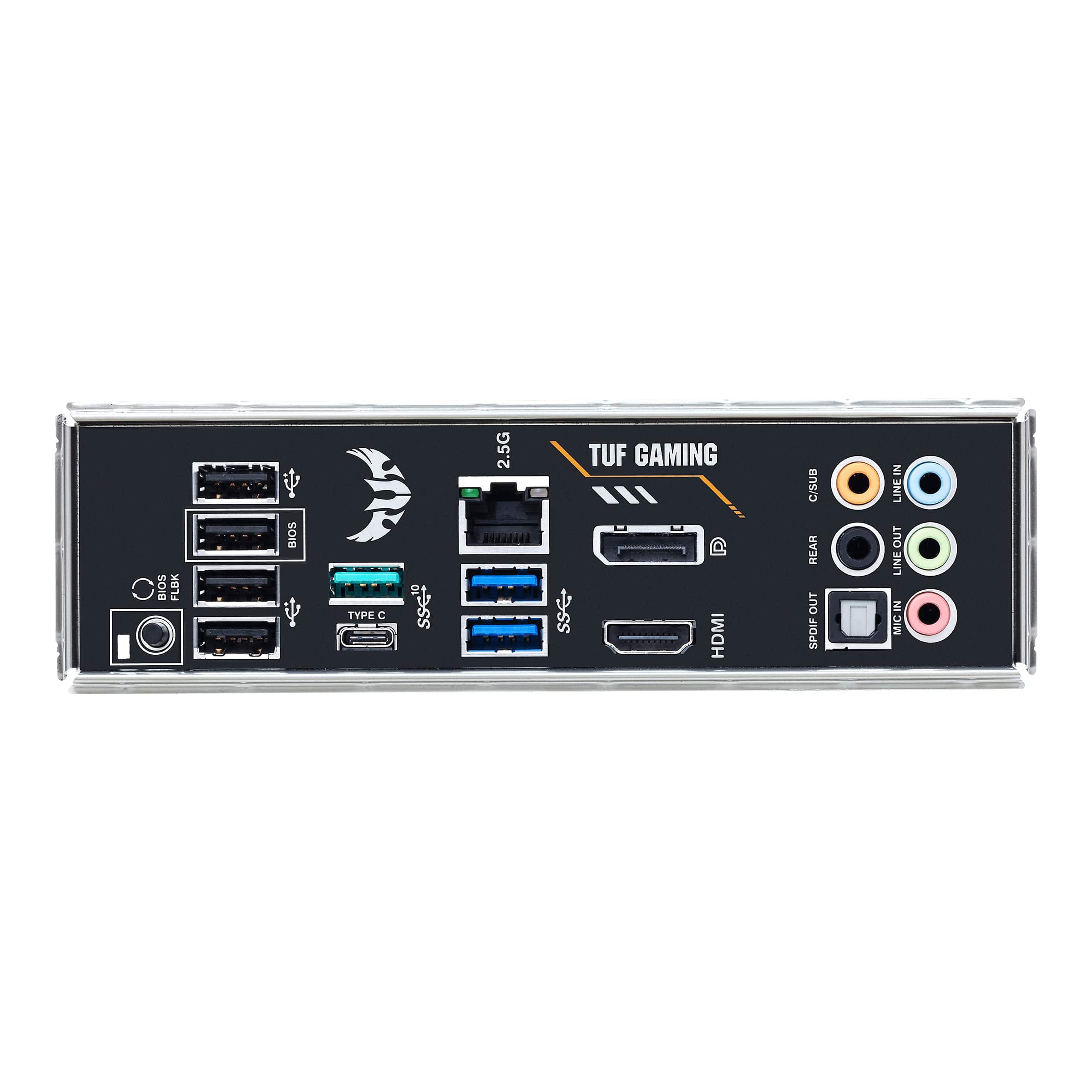

Externí porty: *1x DisplayPort *1x HDMI *1x LAN (2.5G) port(s) *2x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®) *2x USB 3.2 Gen 1 (blue) Type-A *4x USB 2.0 (one port can be switched to USB BIOS FlashBack™) *1x Optical S/PDIF out *5x Audio jack(s) *1x BIOS FlashBack™ Button(s)

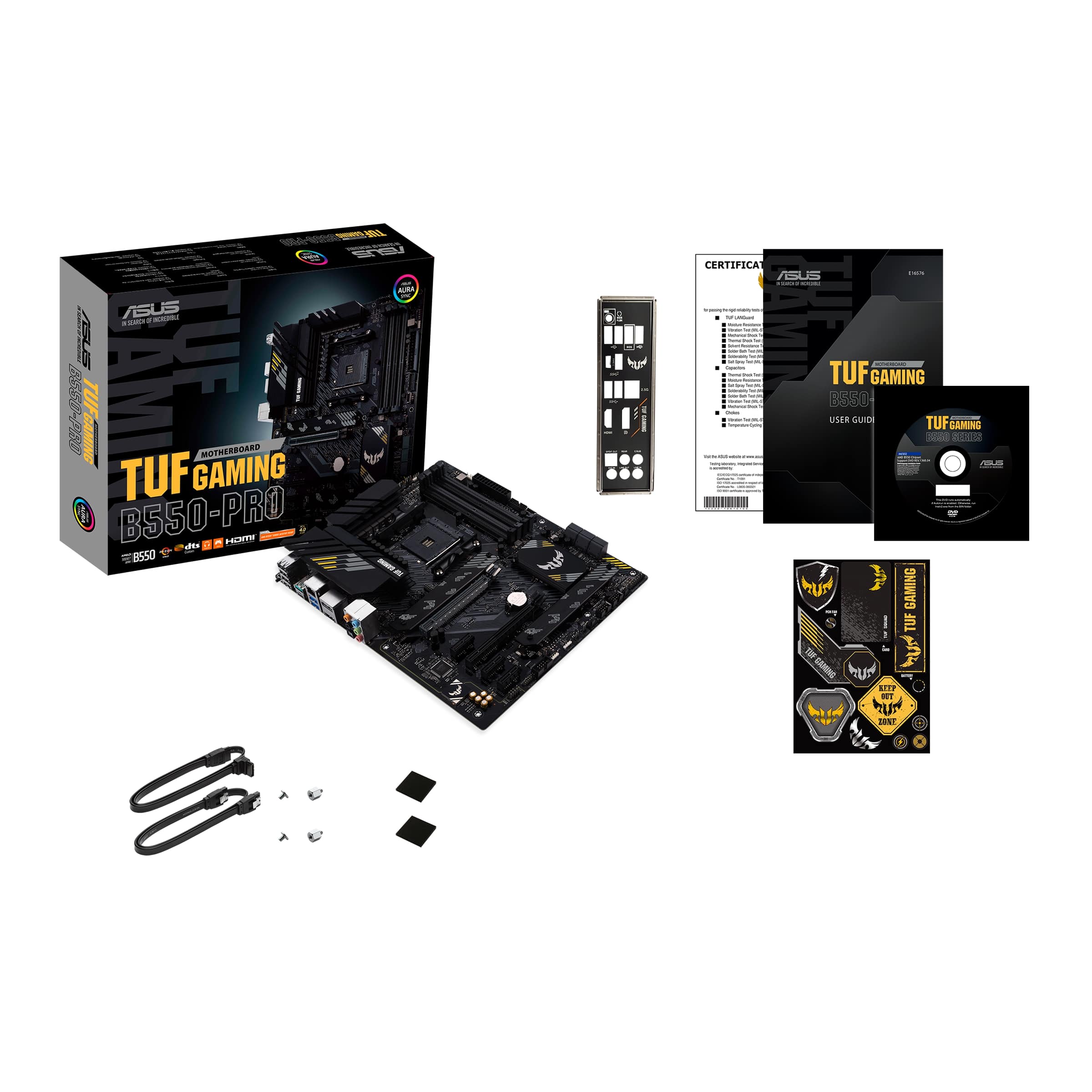

Obsah balení: *User´s manual *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *1x TUF Gaming Sticker *1x TUF Certification card(s) *1x M.2 SSD screw package(s) *1x M.2 Rubber Package(s)
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
