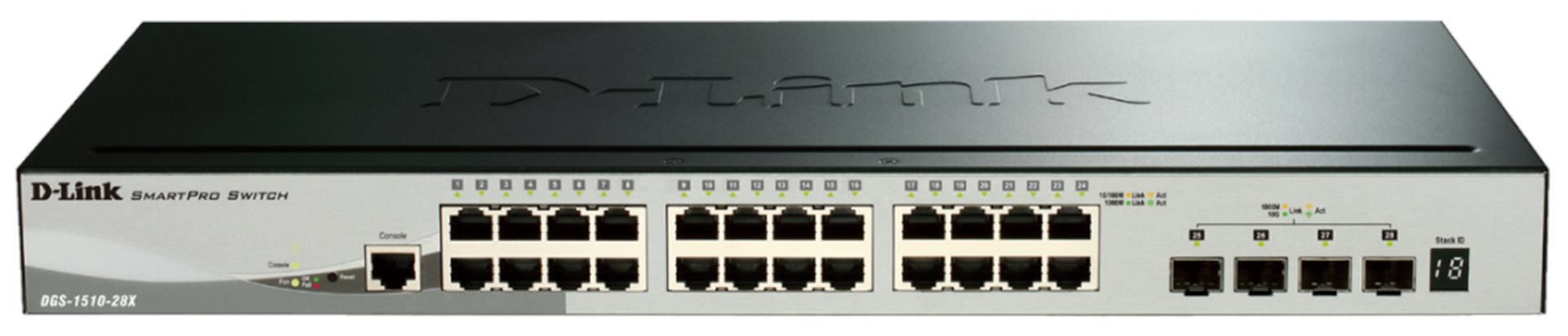

D-Link DGS-1510-28X Switch 24xGb+4xSFP+

Parametry - D-Link DGS-1510-28X Switch 24xGb+4xSFP+

D-Link DGS-1510-28X Switch 24xGb+4xSFP+ Informace k záruce: Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě. Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál. http://www.dlink.com/cz/cs/support/product-registration-and-support-log-in
SPECIFICATIONS GENERAL Port Standards & Functions * IEEE 802.3 10BASE-T Ethernet * IEEE 802.3u 100BASE-TX Fast Ethernet * IEEE 802.3ab 1000BASE-T Gigabit Ethernet * 802.3ae 10 GbE * IEEE 802.3x Flow Control for Full-Duplex Mode * Auto-negotiation Number of Ports * DGS-1510-28X - 24 10/100/1000 Mbps, 4 10G SFP+ Network Cables * UTP Cat. 5, Cat. 5e (100 m max.) * EIA/TIA-568 100-ohm STP (100 m max.) Full/Half Duplex * Full/half duplex for 10/100 Mbps and Gigabit speed Media Interface Exchange * Auto or configurable MDI/MDIX PERFORMANCE Switching Capacity * DGS-1510-28X - 128 Gbps Transmission Method * Store-and-forward MAC Address Table * 16,000 entries per device MAC Address Update * Up to 512 static MAC entries * Enable/disable auto-learning of MAC addresses Maximum 64 bytes Packet Forwarding Rate * DGS-1510-28X - 95.24 Mpps Packet Buffer Memory * DGS-1510-20/28/28X/28P - 1.5 MB per device PHYSICAL & ENVIRONMENT AC Input * 100 to 240 VAC 50/60 Hz internal universal power supply Maximum Power Consumption * DGS-1510-28X - 22.3 W Standby Power Consumption * DGS-1510-28X - 15.2 W Smart Fan Quantity * DGS-1510-20/28/28X - 1 Acoustics * DGS-1510-28X - 42.7 dB(A) Heat Dissipation * DGS-1510-28X - 76.043BTU/hr Operation Temperature * -5 to 50 °C Storage Temperature * -20 to 70°C Operation Humidity * 0% to 95% non-condensing Storage Humidity * 0% to 95% non-condensing Dimensions * DGS-1510-28X - 440 x 210 x 44 mm Weight * DGS-1510-28X - 2.00 kg Diagnostic LEDs * Power/Stacking ID/Fan (per device) * Link/Activity/Speed (per 10/100/1000 Mbps port) * Link/Activity/Speed (per Gigabit SFP port) * Link/Activity/Speed (per 10G SFP+ port) Certifications * CE * FCC * C-Tick * VCCI * BSMI * CCC Safety * cUL * CB SOFTWARE FEATURES Stackability * Virtual Stacking Support: D-Link Single IP Management, Up to 32 devices per virtual stack, Up to 20G stacking bandwidth * Physical Stacking: Supports Duplex Chain/Ring topology, Up to 40G stacking bandwidth full duplex, Up to 6 units per stack L2 Features * MAC Address Table: 16K * Flow Control: 802.3x Flow Control, HOL Blocking Prevention * Jumbo Frame up to 9000 Bytes * IGMP Snooping: IGMP v1/v2 Snooping, IGMP v3 awareness, Supports 512 IGMP groups, Supports 128 static multicast addresses, IGMP per VLAN, Supports IGMP Snooping Querier, Host-based IGMP Snooping Fast Leave * MLD Snooping: Supports MLD v1/v2 awareness, Supports 512 groups, Supports 128 Static Multicast Addresses, Per VLAN MLD Snooping, Host-Based MLD Fast Leave, * MLD Snooping Querier Spanning Tree Protocol: 802.1D STP, 802.1w RSTP, 802.1s MSTP * Loopback Detection * 802.3ad Link Aggregation: Max. 32 groups per device/8 ports per group * Port Mirroring: Support 4 mirroring groups, One-to-One, Many-to-One, Supports Mirroring for Tx/Rx/Both * Multicast Filtering: Forwards all unregistered groups, Filters all unregistered groups * LLDP, LLDP-MED VLAN * 802.1Q Tagged VLAN * 4K VLAN Groups * Configurable VID: 0~4094 * Asymmetric VLAN * Auto Voice VLAN * Auto Surveillance VLAN Quality of Service (QoS) * 802.1p Quality of Service * Queue Handling: Strict, Weighted Round Robin (WRR) * 8 queues per port * Bandwidth Control: Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 64 Kb/s) * CoS based on: 802.1p priority, VLAN, MAC address, Ether type, IP address, DSCP, Protocol type, TCP/UDP port number, DSCP of IPv6 Traffic Class, IPv6 flow label L3 Features * ARP: 256 Static ARP, Supports Gratuitous ARP * IPv6 Neighbour Discovery (ND) * Default Routing * Static Routing: 64 IPv4 Static Route Entries, 32 IPv6 Static Route Entries Access Control List (ACL) * ACL based on: 802.1p priority, VLAN, MAC address, Ether type, IP address, DSCP, Protocol type TCP/UDP port number, DSCP of IPv6 Traffic Class, IPv6 flow label * ACL Actions: Permit, Deny * Max. 256 access list * Max. 768 rules * Single or multiple ports (each rule) * Time-based ACL * ACL Statistics Security * Port Security: Supports up to 128 MAC addresses per port * Broadcast/Multicast/Unicast Storm Control * Dynamic ARP Inspection * Static MAC * D-Link Safeguard Engine * DHCP Server Screening * ARP Spoofing Prevention: Max. 64 entries * SSH: Supports v02, Supports IPv4/IPv6 * SSL: Supports v1/v2/v3, Supports IPv4/IPv6 * Traffic Segmentation * IP-MAC-Port Binding: DHCP snooping, IP Source Guard, Dynamic ARP inspection, DHCPv6 Guard, RA Guard, IPv6 Snooping, IPv6 source guard * DoS Attack Prevention AAA * Compound Authentication * 802.1X Port and MAC-based Authentication: Supports RADIUS and Local Server, Supports EAP, OTP, TLS, TTLS, PEAP * Web-based Access Control (WAC): Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment * MAC-based Access Control (MAC): Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment * Japan Web-based Access Control (JWAC): Port-based Access Control, Host-based Access Control, Dynamic VLAN Assignment OAM * Cable Diagnostics * Factory Reset Management * CLI * Telnet Server * TFTP Client * IPv6 Neighbor Discovery * Configurable MDI/MDIX * SNMP: Supports v1, v2c, v3, SNMP Trap * System Log: Max. 10,000 log entries * DHCP Client * D-Link Network Assistant support * SNTP * ICMPv6 * IPv4/v6 Dual Stack * DHCP Auto Configuration * RMON v1 D-Link Green 3.0 Technology * Power Saving by: Link Status, LED or Port Shutoff, System Hibernation mode,
