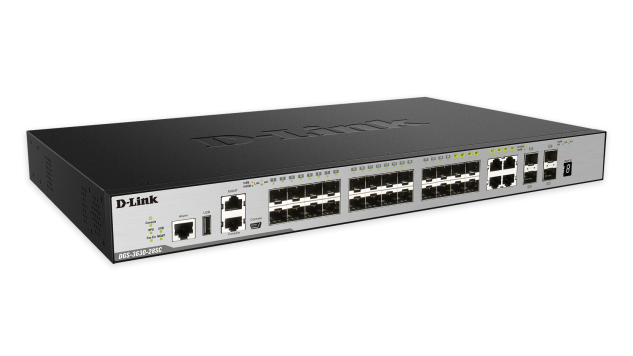

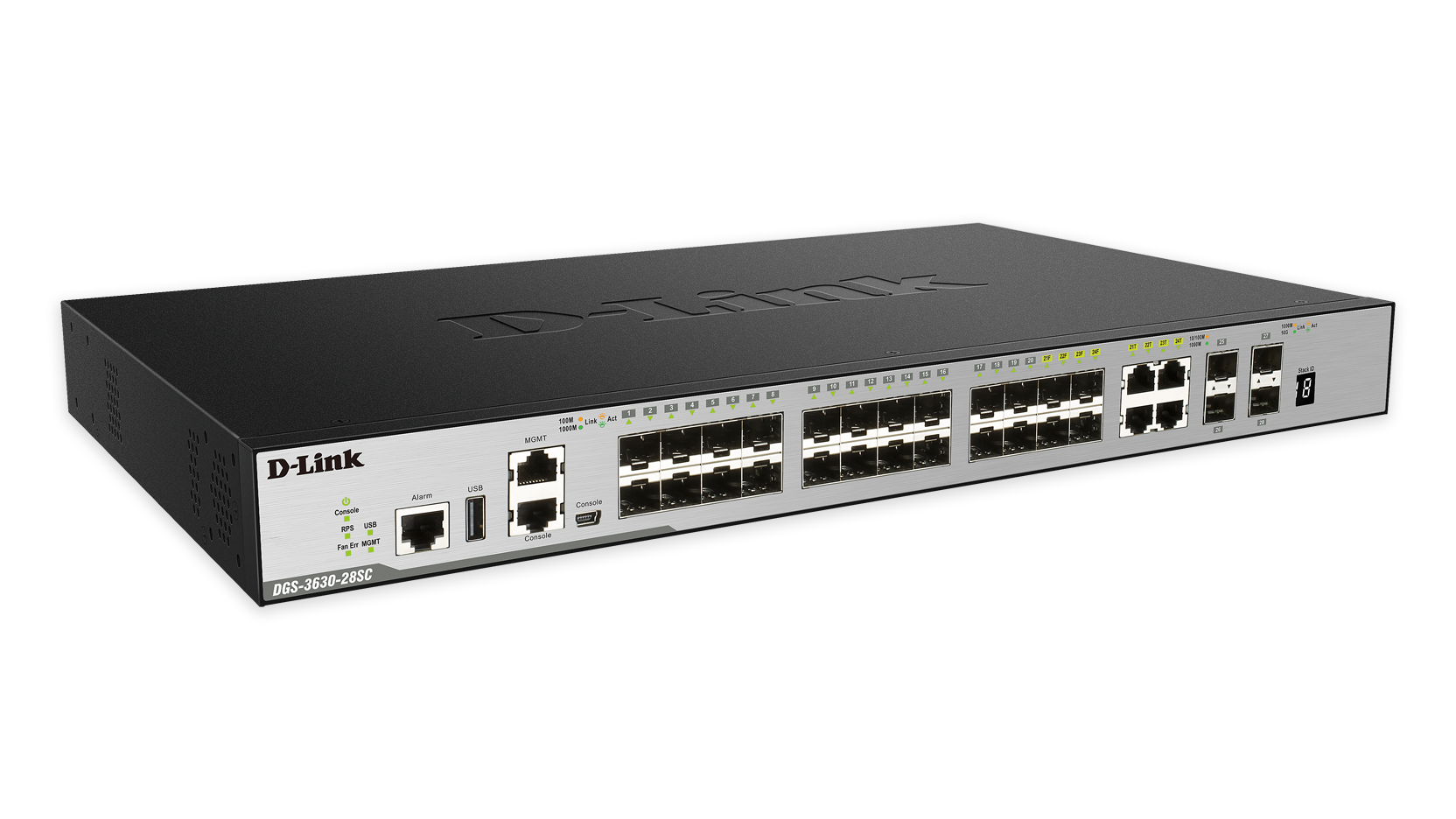

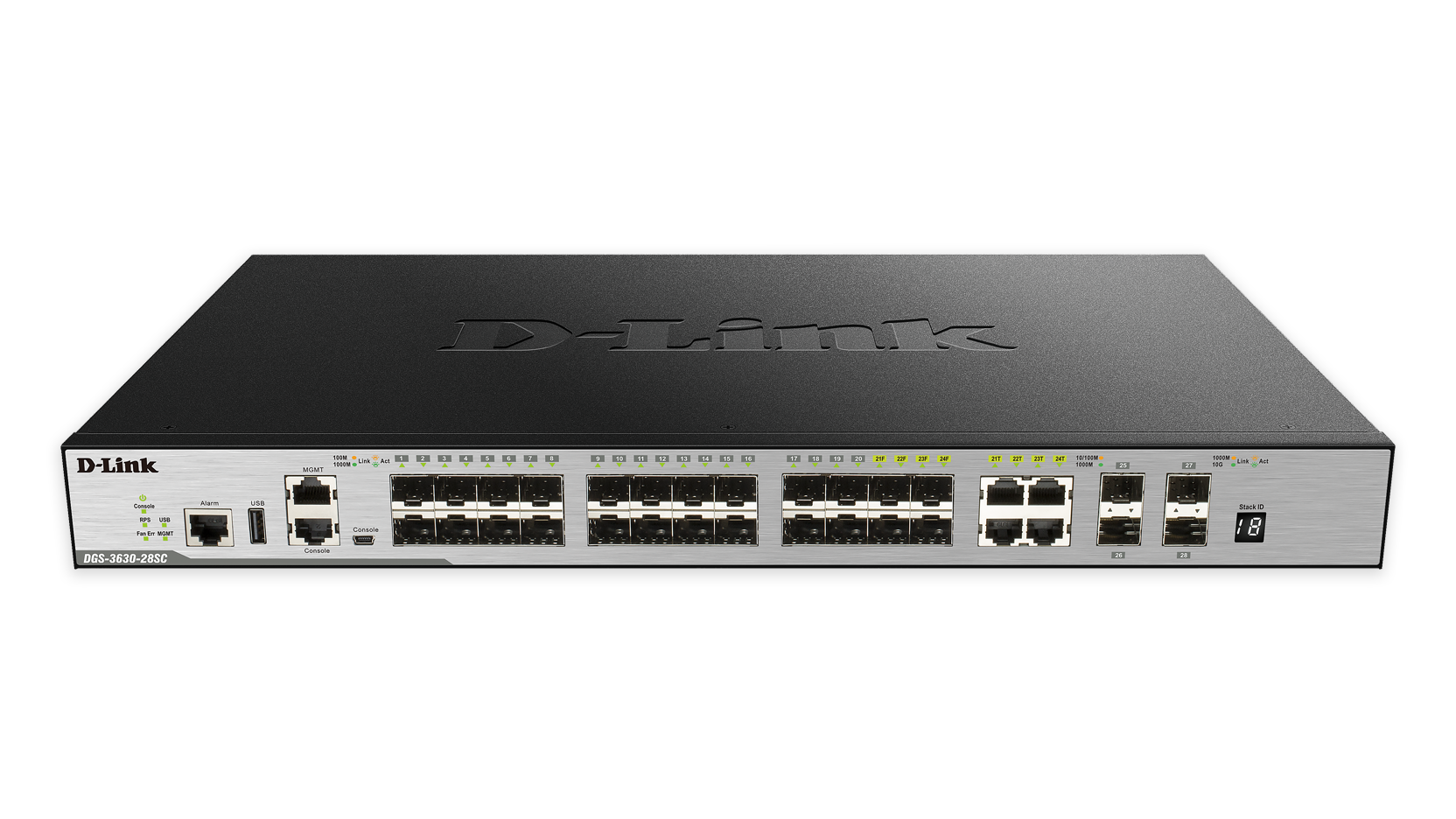

D-Link DGS-3630-28SC/SI

Parametry - D-Link DGS-3630-28SC/SI

Informace k záruce: Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě. Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál.
Popis The DGS-3630 Series Layer 3 Stackable Managed Switches are designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), larger Enterprises, and ISPs. They deliver high performance, flexibility, fault tolerance, and advanced software features for maximum return on investment. With Gigabit Ethernet RJ45 and SFP ports, 10 GbE SFP+ ports, advanced security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches. High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications.
Technická specifikace Technical Specifications Interfaces • Gigabit SFP Ports 20 • Combo 10/100/1000BASE-T or SFP Ports 4 • 10 Gigabit SFP+ Ports 4 • Console Port RJ45 and Mini USB console ports for out-of-band CLI management • Management Port 10/100/1000BASE-T RJ45 Ethernet for out-of-band IP management • Alarm Port RJ45 • USB Port USB 2.0 Type A • Optional Redundant Power Supply DPS-500A *Performance *Switch Capacity 128 Gbps • Packet Forwarding Rate 95.24 Mpps • Packet Buffer 4 MBytes • MAC Address Table 68K entries • IPv4 Routing Table 16K entries • IPv6 Routing Table 7K entries • IPv4 Forwarding Table 32K entries • IPv6 Forwarding Table 16K entries • Jumbo Frame Size 12 KBytes Physical and Environmental • MTBF 280,612 hours • Acoustics 56 dB(A) • Heat Dissipation 217 BTU/hr • Power Input 100 to 240 VAC, 50/60 Hz • Max Power Consumption 63.6 W • Standby Power Consumption 30.1 W • Dimensions 441 x 260 x 44 mm • Weight 3.79 kg • Ventilation 2 Smart Fans • Operating Temperature -5°C to 50°C • Storage Temperature -40°C to 70°C • Operating Humidity 10% to 95% RH • Storage Humidity 5% to 95% RH • Safety Certifications cUL, CB, CE, CCC, BSMI • EMI/EMC CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
