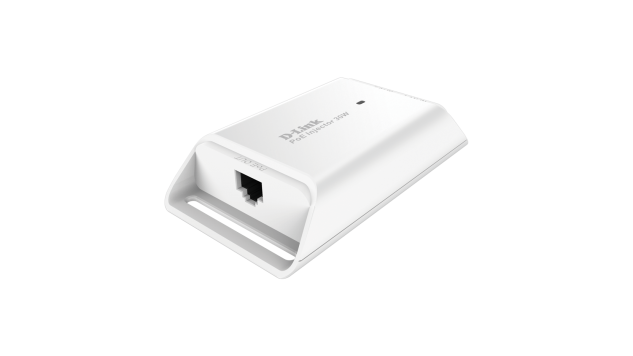

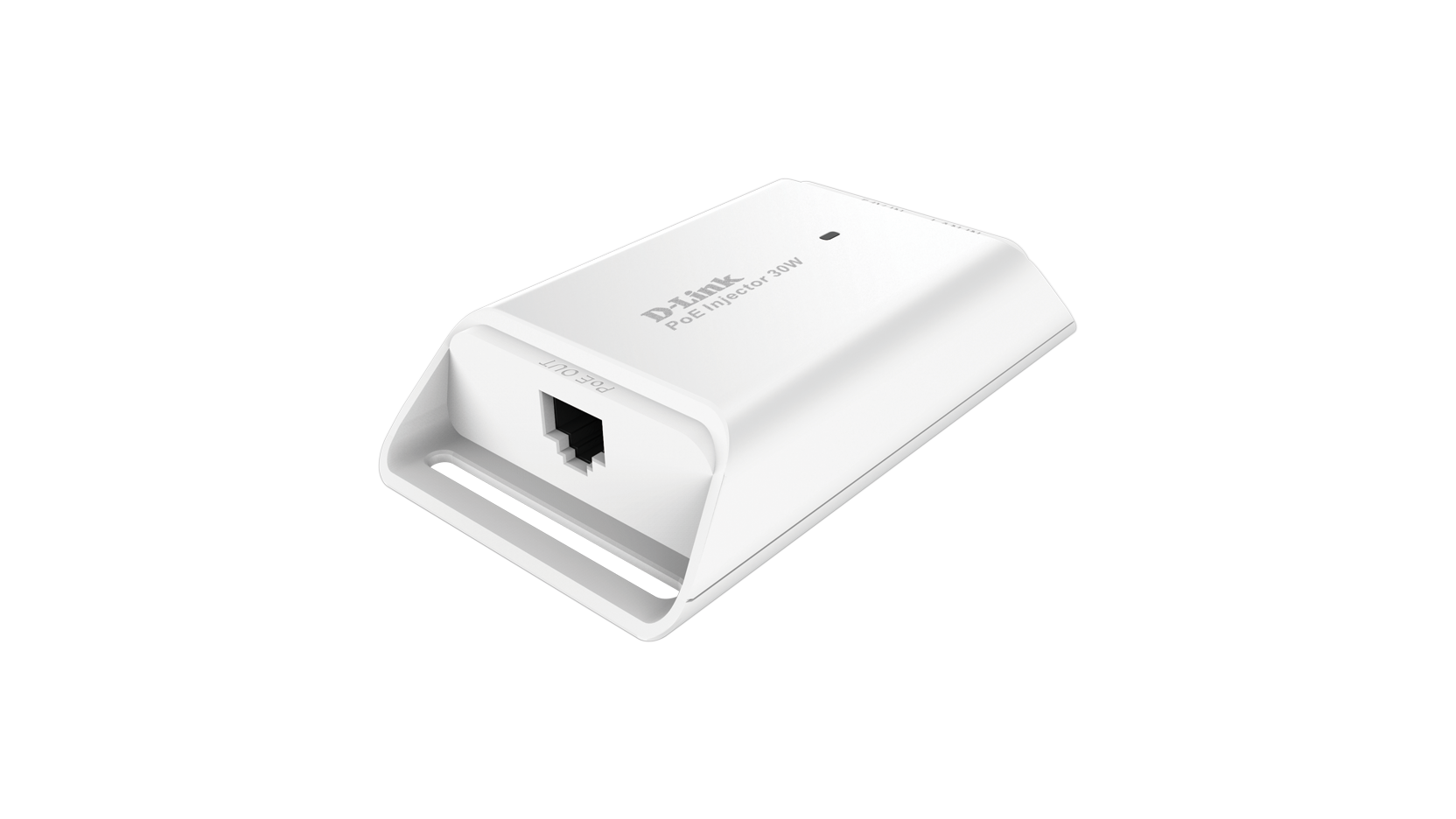

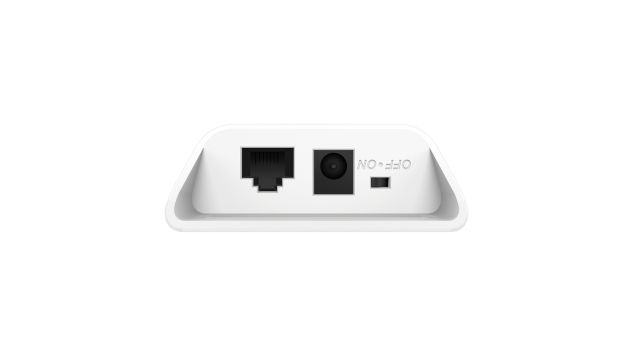

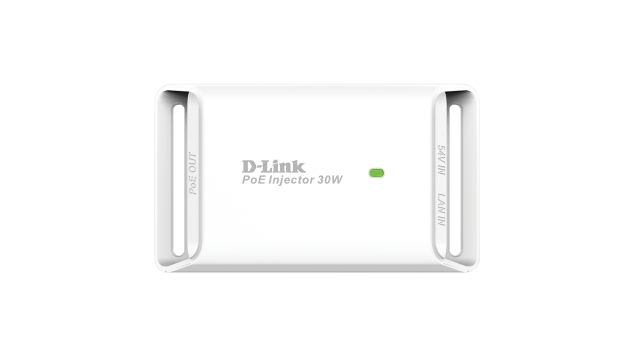

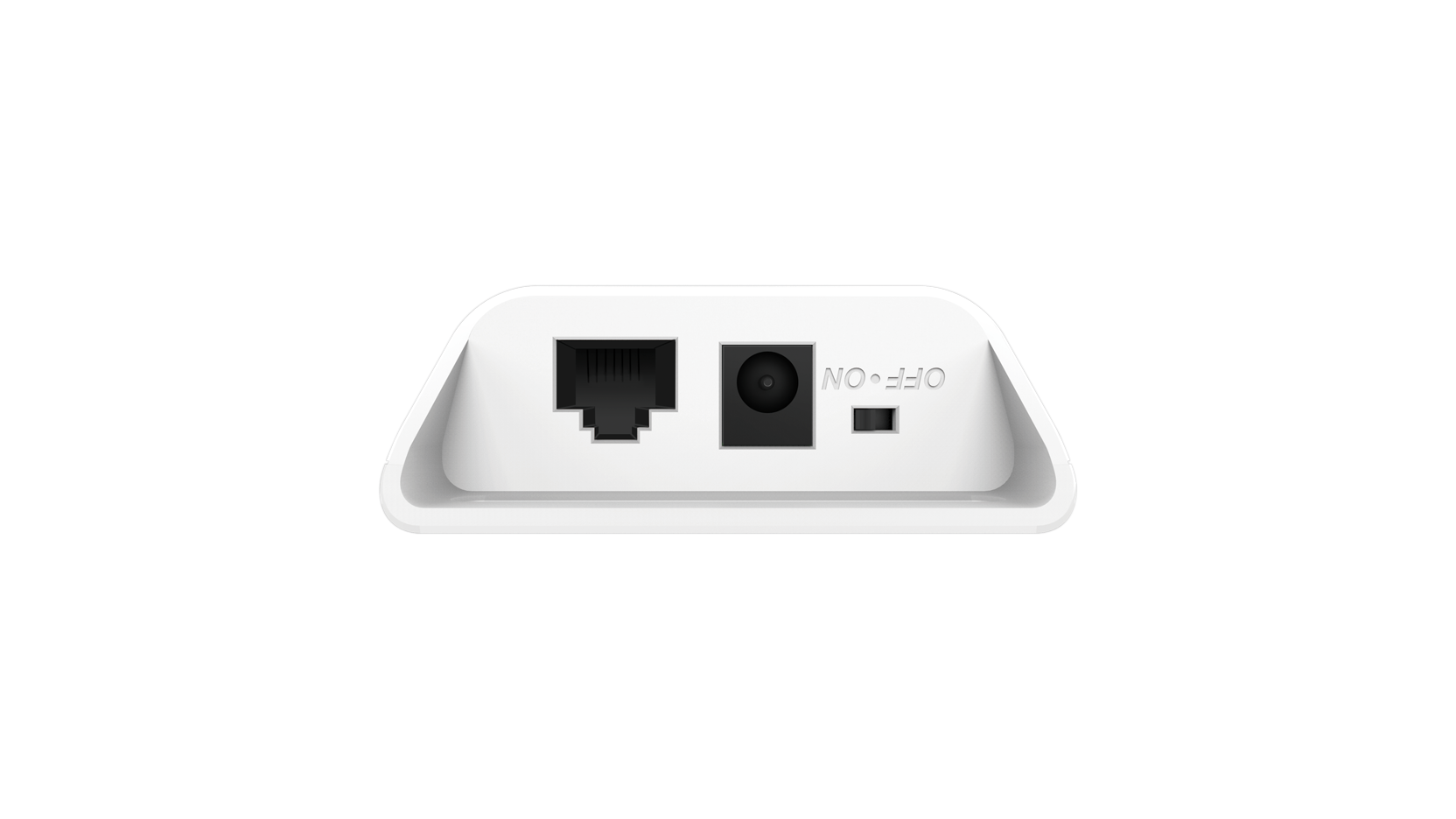

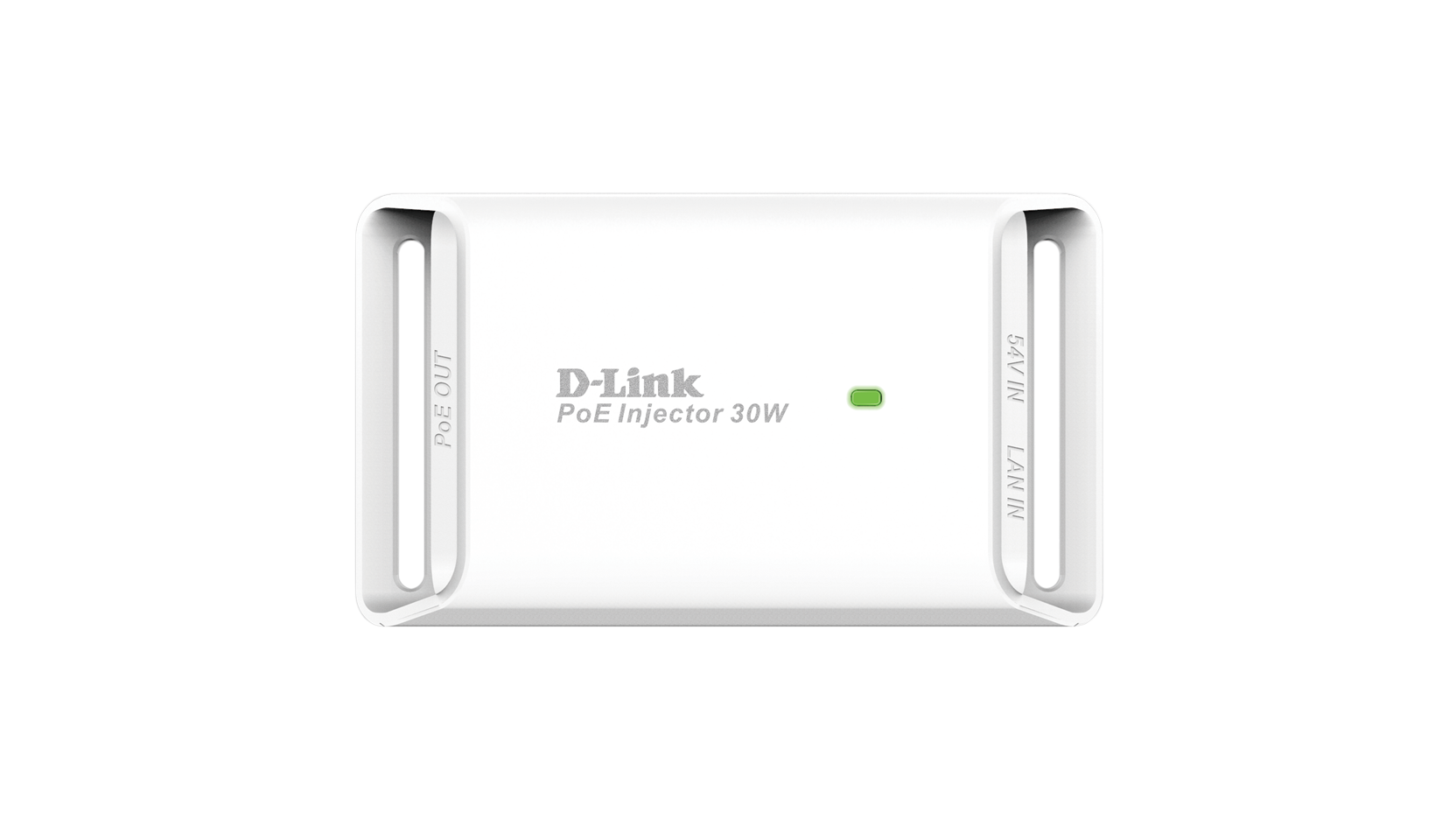

D-Link DPE-301GI 1-Port Gigabit 30W PoE+ Injector

Parametry - D-Link DPE-301GI 1-Port Gigabit 30W PoE+ Injector

OVERVIEW *The IEEE 802.3at (PoE+)/802.3af (PoE) compliant DPE-301GI Gigabit PoE+ Injector is designed to supply data and up to 30 watts of power to PoE-enabled devices such as network cameras and wireless access points. *The DPE-301GI gives you the ability to mount your PoE device virtually anywhere in a building, such as on ceilings or near entryways, by eliminating the need for a nearby power outlet. *D-Link's DPE-301GI combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal for transmission over a single Ethernet cable, to up to 100 metres1 distance. *Examples where the DPE-301GI is ideal include powering network devices such as professional network cameras with pan/tilt/zoom, night vision or internal heating/cooling features, as well as the latest wireless access points that support the high throughput 802.11ac standard.
TECHNICAL SPECS
Ports
PoE + Data Port (out) *Supports half/full-duplex operation *10/100/1000BASE-T port *IEEE 802.3 compliant *IEEE 802.3u compliant *IEEE 802.3at compliant *IEEE 802.3af compliant *IEEE 802.3ab compliant
Data Port (in) *Supports half/full-duplex operation *IEEE 802.3 compliant *IEEE 802.3u compliant *IEEE 802.3ab compliant *10/100/1000BASE-T port
LED Indicators *Blue: Power On *Green: Link On
Physical
Dimensions (L x W x H) *109.8 x 62.2 x 24.5 mm
Weight *65 grams
Power *Power Adapter: 55 V / 0.6 A *Max Consumption: 32.4 watts *Output: 0.6 A at 55 V
Temperature *Operating: -10 to 50 °C *Storage: -30 to 70 °C
Humidity *Operating: 5% to 95% non-condensing *Storage: 5% to 95% non-condensing
Certifications *CE *FCC *VCCI *RCM *RoHS *BSMI
