D-Link GO-SW-24G 24-Port GIGABIT DESKTOP SWITCH

Parametry - D-Link GO-SW-24G 24-Port GIGABIT DESKTOP SWITCH

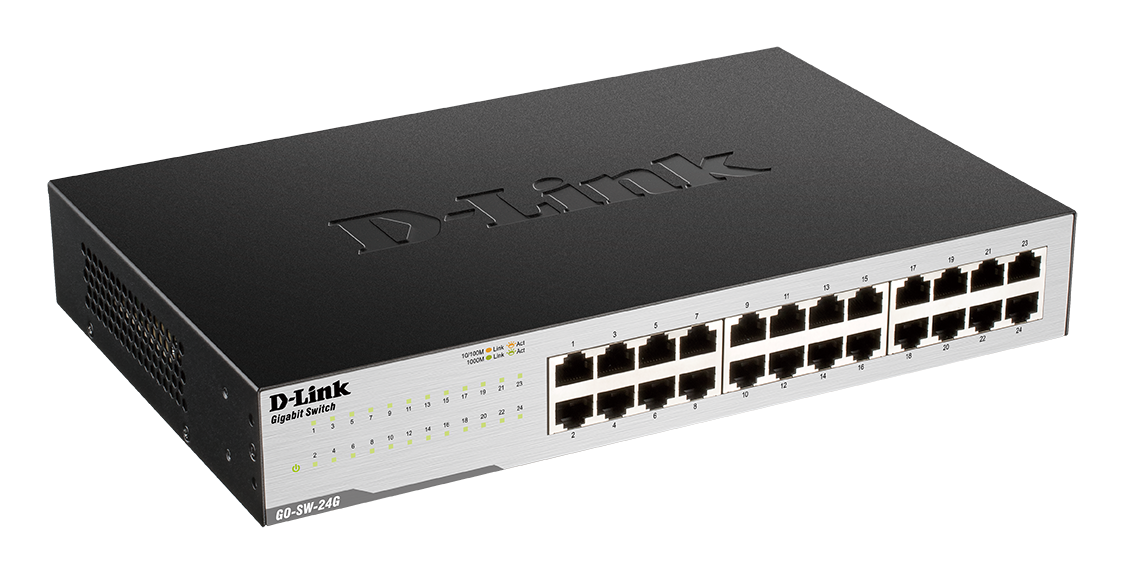

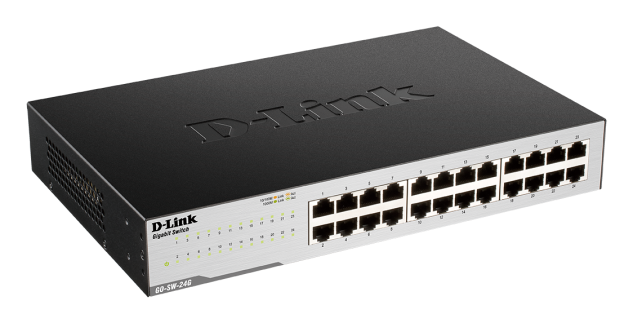

D-Link GO-SW-24G 24-Port Unmanaged Gigabit Switch
OVERVIEW The D-Link GO-SW-16G 16-Port Unmanaged Gigabit Switch and GO-SW-24G 24-Port Unmanaged Gigabit Switch each offer an economical way for SOHO and small to medium businesses (SMB) to deploy an energy-efficient switch that features the increased bandwidth of Gigabit ports.
SPECIFICATIONS GENERAL Number of Ports • Twenty-four 10/100/1000 Gigabit ports Standards • IEEE 802.3 10BASE-T Ethernet • IEEE 802.3u 100BASE-TX Fast Ethernet • IEEE 802.3ab 1000BASE-T Gigabit Ethernet • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x Flow Control Data Tranfer Rates Ethernet: • 10 Mbps (half duplex) • 20 Mbps (full duplex) Fast Ethernet: • 100 Mbps (half duplex) • 200 Mbps (full duplex) Gigabit Ethernet: • 2000 Mbps (full duplex) Network Cables 10BASE-T: • UTP CAT 3, 4, 5/5e (100 m max) • EIA/TIA-586 100-ohm STP (100 m max) 100BASE-TX, 1000BASE-T: • UTP CAT 5/5e (100 m max) • EIA/TIA-568 100-ohm STP (100 m max) FUNCTIONALITY D-Link Green Features • IEEE 802.3az Energy Efficient Ethernet (EEE) • Link status detection power saving • Cable length detection power saving • RoHS Compliance LAN Features • Back pressure at half-duplex operation • Auto MDI/MDIX • Wire speed reception and transmission • Store-and-Forward switching method • 16K MAC addresses • 3.5 Mbits RAM for data buffering • Jumbo Frames: 9216 Bytes • Switching Capacity 48 Gbps Port Packet Filtering • 10M: 14,880 pps • 100M: 148,800 pps • 1000M: 1,488,000 pps PHYSICAL LEDs • Power LED • 24 Link/Activity/Speed LEDs (one per port) Power Inputs • Switching 12V/1A level V power adapter Power Consumption • Power on (standby): AC input: 4.94 Watts • Power max.: AC input: 15.7 Watts Heat Dissipation • Power on (Standby): AC input: 16.86 BTU/h • Power max.: AC input: 53.58 BTU/h MTBF • 336,072 hours Dimensions • 257 x 178 x 46 mm Weight • 0.76 kg Operating Temperature • 0 to 40 °C Storage Temperature • -10 to 70 °C Humidity • 5% to 90% non-condensing Certifications • FCC Class A • ICES-003 Class A • CE Class A • C-Tick Class A • CB • cUL
