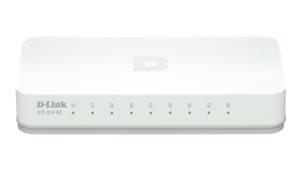

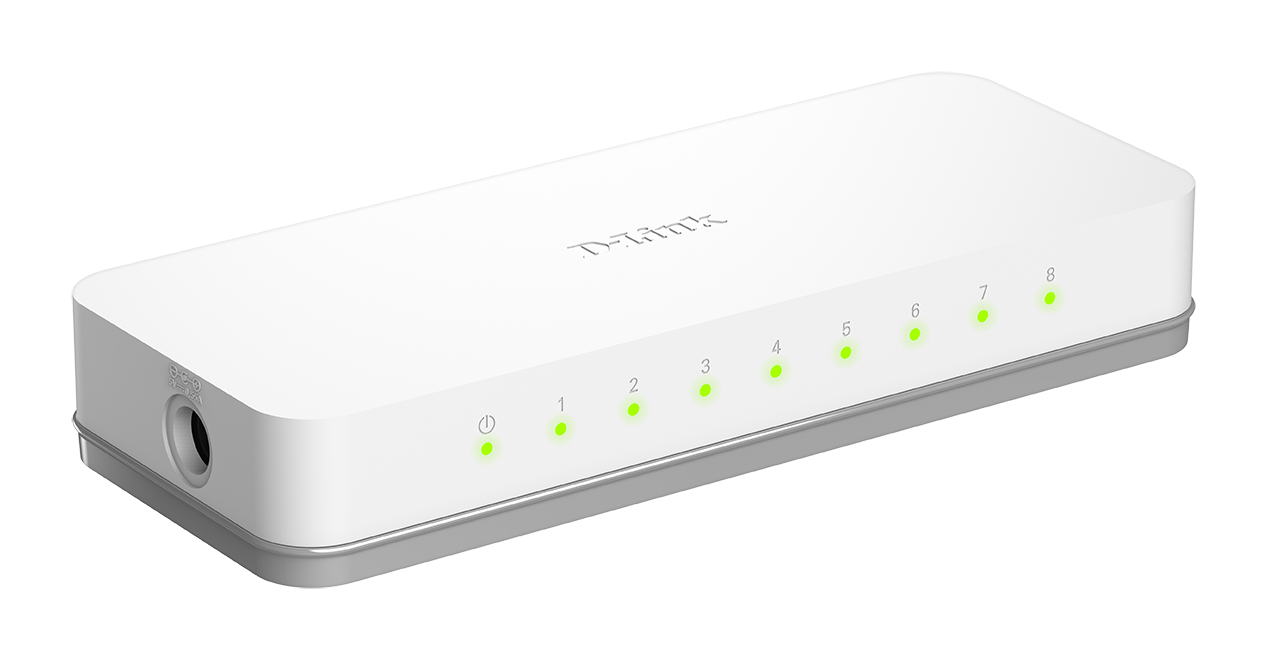

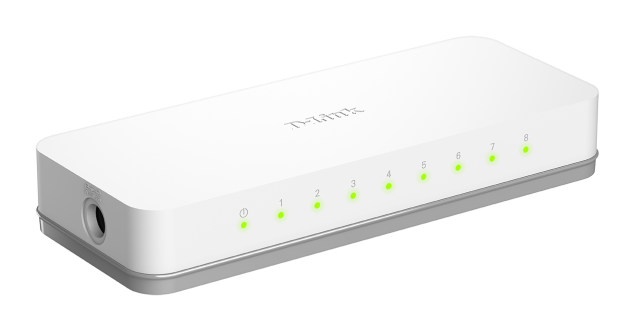

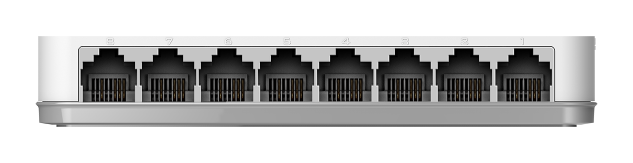

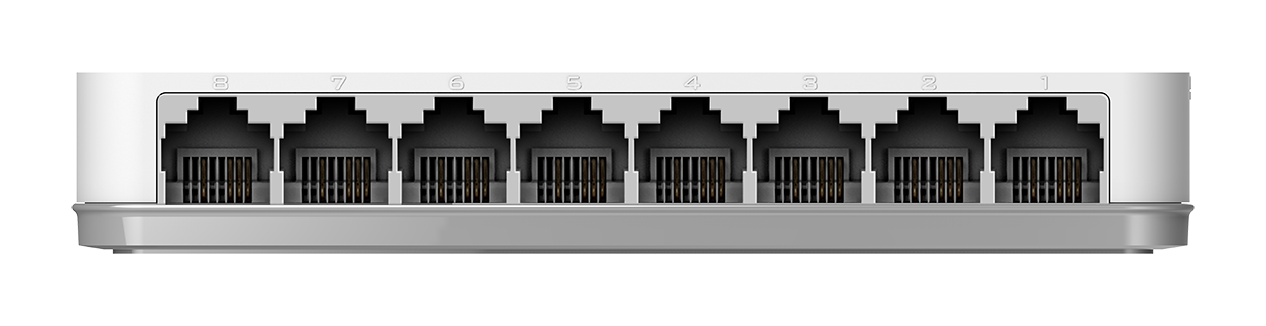

D-Link GO-SW-8E 8-Port 10/100M DESKTOP SWITCH

Parametry - D-Link GO-SW-8E 8-Port 10/100M DESKTOP SWITCH

D-Link GO-SW-8E 8-Port Fast Ethernet Easy Desktop Switch
OVERVIEW The dlinkgo GO-SW-8E 8-Port Fast Ethernet Easy Desktop Switch allows you to quickly set up a fast, reliable, and efficient wired network in your home or office. The GO-SW-8E is an unmanaged 10/100Mbps switch designed to enhance small workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands. Connect the GO-SW-8E to multiple computers to share files and folders, or connect it to a router to share an Internet connection.
SPECIFICATIONS Device Interfaces • Eight 10/100 Fast Ethernet LAN ports Advanced Features • Green Ethernet • 1.6 Gbps switching fabric • Auto MDI/MDIX crossover for all ports • Secure store-and-forward switching scheme • Compliance with IEEE802.3az EEE power saving • Full/half-duplex for Ethernet/Fast Ethernet speeds • IEEE 802.3x Flow Control • Plug-and-play installation • RoHS compliant • Supports 2048-byte Jumbo Frames Protocol • CSMA/CD Data Transfer • Rates Ethernet: o 10 Mbps (half duplex) o 20 Mbps (full duplex) • Fast Ethernet: o 100 Mbps (half duplex) o 200 Mbps (full duplex) Transmission Method • Store-and-forward MAC Address Table • 2K MAC Address Learning • Automatic Update Packet Filtering/Forwarding Rates • Ethernet: 14,880 pps per port • Fast Ethernet: 148,800 pps per port RAM Buffer • 128 KB per device LED Indicators • Per port: Link/Activity • Per device: Power Media Interface Exchange • Auto MDI/MDIX adjustment for all ports Dimensions • 130.04 x 79.2 x 22.8 mm Power • 5 V/1 A Power Adapter Heat Dissipation • Power On (Standby): AC input:2.0472 Btu/h • Maximum: AC input:7.47228 Btu/h Power Consumption • Power On (Standby): DC input: 0.36 watts, AC input: 0.6 watts • Maximum: DC input: 1.78 watts, AC input: 2.19 watts • Link Up: EEE mode: DC input: 0.75 watts AC input: 1.1. watts Temperature • Operating: 0 to 50 °C • Storage: -10 to 70 °C Humidity • Operating: 10% to 90% non-condensing • Storage: 5% to 90% non-condensing MTBF • 2,137,319 hours Certifications • CE class B • ICES-003 Class B • C-Tick Class B • FCC class B • cUL/UL • CCC • Anatel • CB • VCCI Class B
