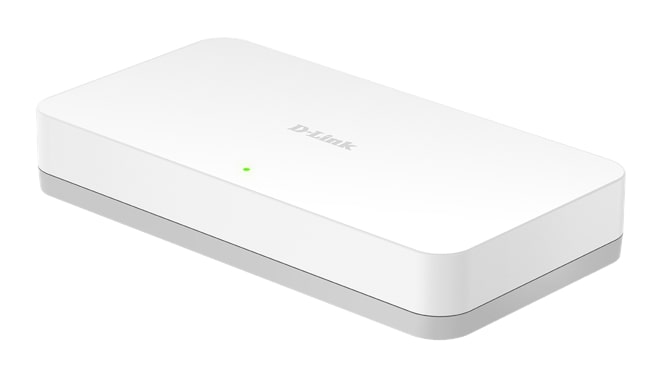

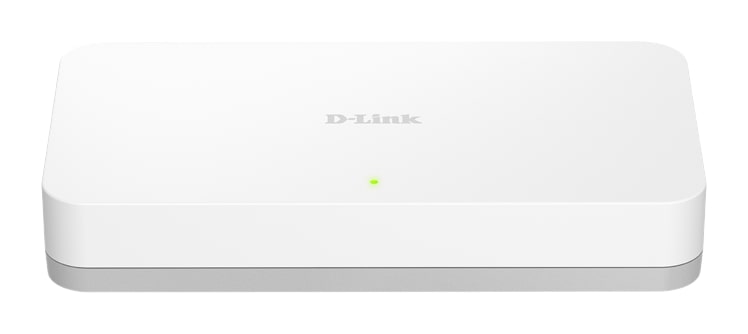

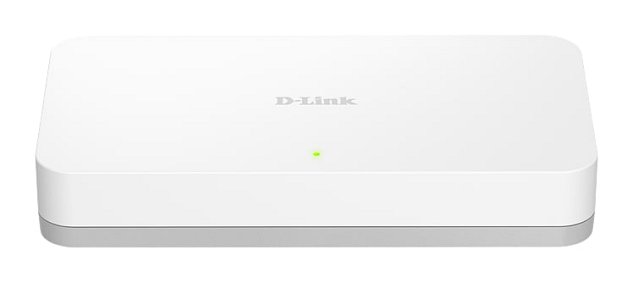

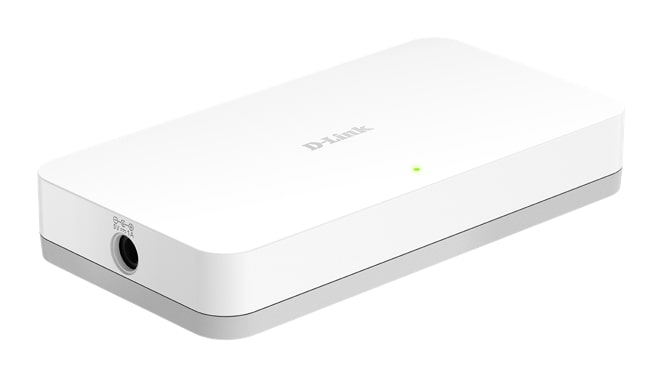

D-Link GO-SW-8G 8-Port GIGABIT EASY DESKTOP SWITCH
Skladem 20 ks Náš kód: 51202582 EAN: 790069365690 P/N: GO-SW-8G/E
Výrobce: D-LINK Záruka: 24 měsíců
D-Link GO-SW-8G Osmi portový gigabitový jednoduchý stolní switch PŘEHLED 8-Portový Gigabitový jednoduchý stolní switch (GO-SW-8G) nabízí ekonomický způsob, jak mohou malé a střední podniky (SMB) využívat zvýšenou…
Parametry - D-Link GO-SW-8G 8-Port GIGABIT EASY DESKTOP SWITCH
D-Link GO-SW-8G 8-Port Gigabit Easy Desktop Switch
OVERVIEW
The 8-Port Gigabit Easy Desktop Switch (GO-SW-8G) offers an economical way for SOHO and small to medium businesses (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. It provides eight Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
SPECIFICATIONS
Switching Fabric
• 16Gbps
Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol
• CSMA/CD
Data Transfer Rates
• Ethernet:
• 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet:
• 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit Ethernet:
• 2000 Mbps (full duplex)
Topology
• Star
Network Cables
• 10BASE-T:
• UTP CAT 3, 4, 5/5e (100 m max.)
• EIA/TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX, 1000BASE-T:
• UTP CAT 5/5e (100 m max.)
• EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange
• Auto MDI/MDIX adjustment for all ports

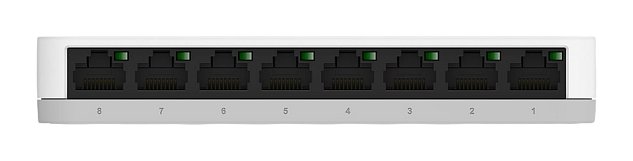

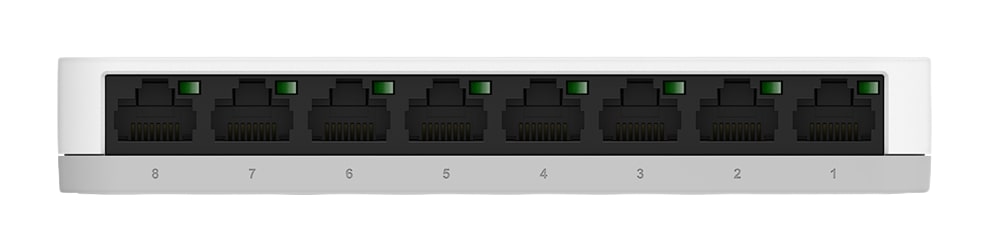

LED Indicators
• Per port: Link/Activity/Speed
• Per device: Power
Transmission Method
• Store-and-forward
MAC Address Table
• 8K
MAC Address Learning
• Automatic update
Packet Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer
• 128KB per device
Jumbo Frames
• 9,216 Bytes
DC Input

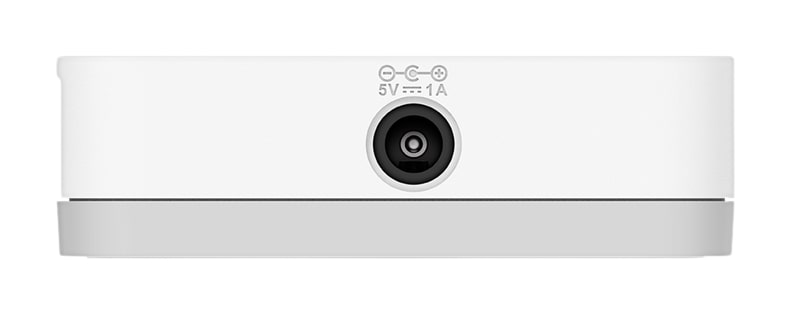

• External 5 V/1 A Level "V" Power Adapter
Power Consumption
• DC input: 3.06 watts
• AC input: 3.9 watts
MTBF
• 412,433 hours
Operating Temperature
• 0 to 40 °C
Storage Temperature
• -10 to 70 °C
Operating Humidity
• 10% to 90% RH non-condensing
Storage Humidity
• 5% to 90% RH non-condensing
Dimensions
• 128 x 68.5 x 25.4 mm
Weight
• 195 grams
Certifications
• FCC Class B
• ICES-003 Class B
• CE Class B
• C-Tick Class B
• VCCI Class B
• cUL/UL
• CCC
• Anatel
• LVD
