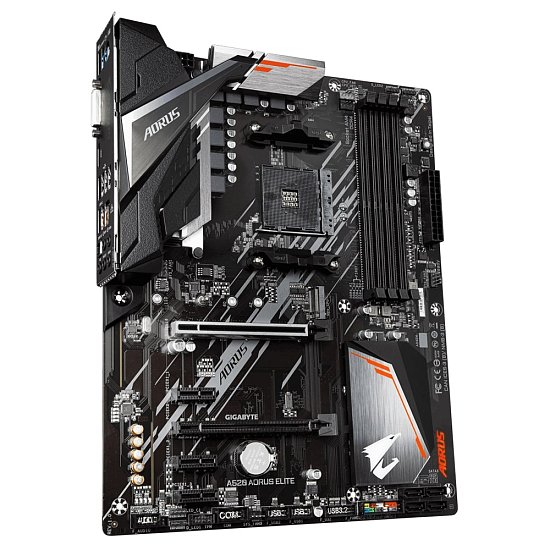

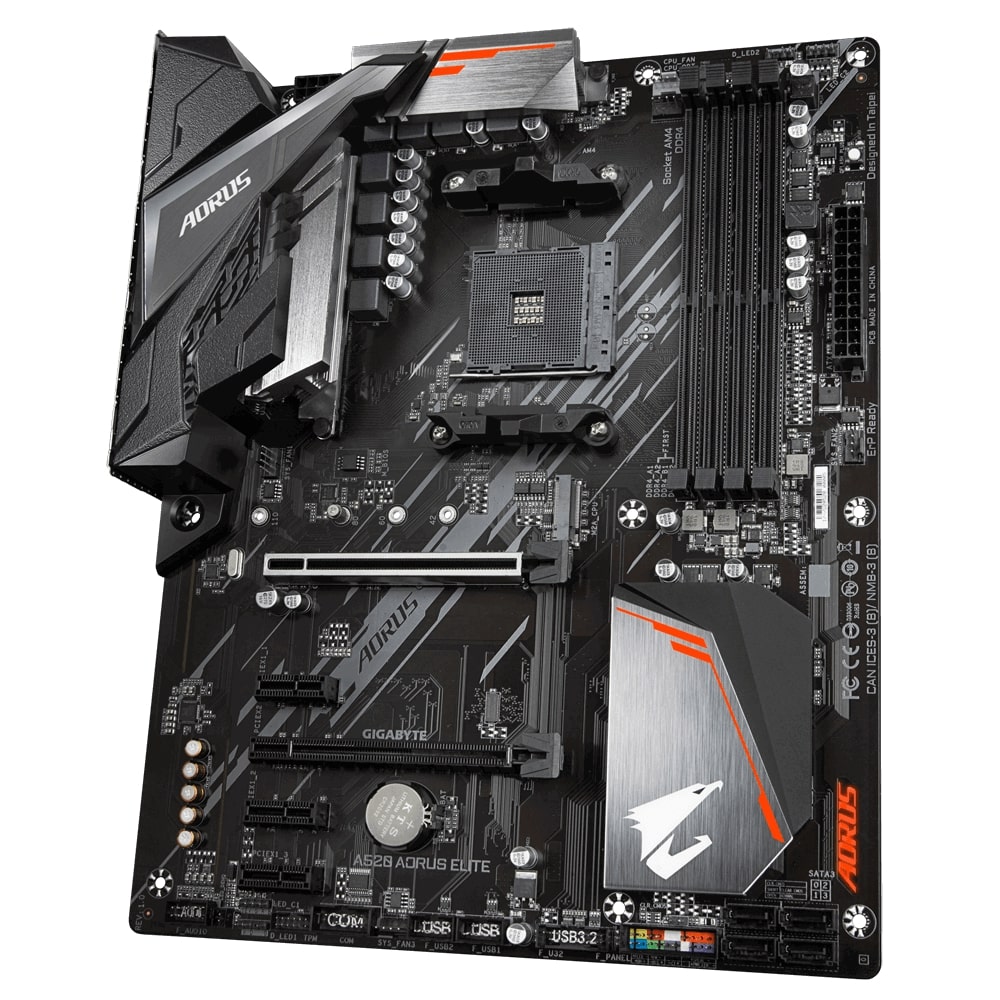

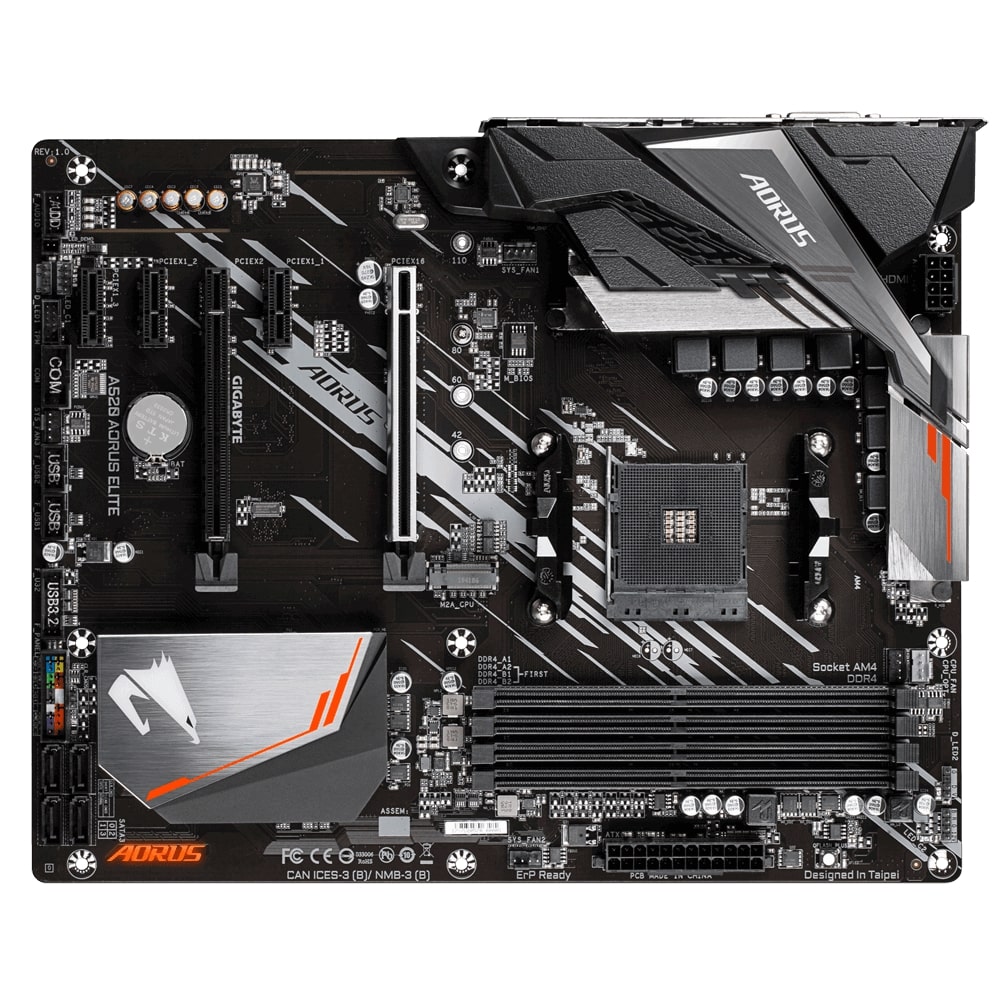

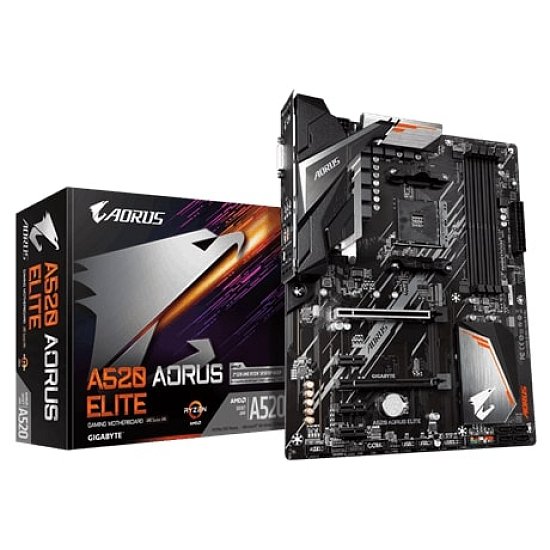

GIGABYTE A520 AORUS ELITE (rev. 1.0)

Popis - GIGABYTE A520 AORUS ELITE (rev. 1.0)

Chipset: AMD A520
Rozměrový formát: ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
Patice procesoru: AM4
Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti:
3rd Gen AMD Ryzen™ Processors: 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4 *Dual channel memory architecture *Podpora ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules *Podpora non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules *Podpora Extreme Memory Profile (XMP) memory modules
Grafická karta: *Integrovaná v 3. generaci AMD Ryzen™ s Radeon™ grafickým procesorem (na základě cpu)
Zvuková karta: *Realtek® ALC1200 codec
Síťová karta: *Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Rozšiřující sloty: *1x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) *1x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) *3x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2, PCIEX1_3)
RAID řadič: 0, 1, 10
SATA: *4x SATA 6Gb/s ports
M.2: *1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
USB: *
zadní USB porty ( celkem 8 ) *1x USB 3.2 Gen 2 Type-A port (red) *3x USB 3.2 Gen 1 ports *4x USB 2.0/1.1 ports *
přední USB porty ( celkem 6 ) *2x USB 3.2 Gen 1 ports *4x USB 2.0/1.1 ports
Interní porty: *1x 24-pin ATX main power connector *1x 8-pin ATX 12V power connector *1x CPU fan header *1x water cooling CPU fan header *3x system fan headers *2x addressable LED strip headers *2x RGB LED strip headers *1x M.2 Socket 3 connector *4x SATA 6Gb/s connectors *1x front panel header *1x front panel audio header *1x USB 3.2 Gen 1 header *2x USB 2.0/1.1 headers *1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) *1x serial port header *1x Clear CMOS jumper *1x Q-Flash Plus button

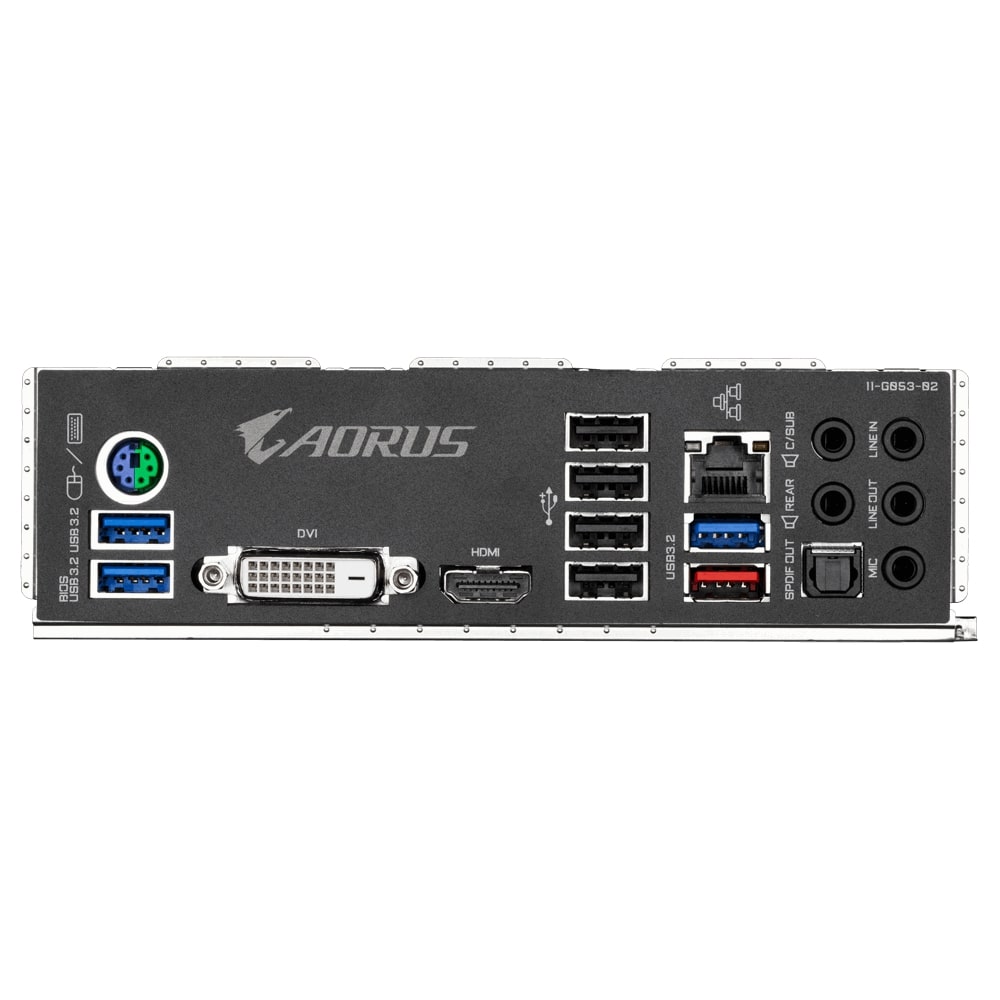

Externí porty: *1x PS/2 keyboard/mouse port *1x DVI-D port *1x HDMI port *1x USB 3.2 Gen 2 Type-A port (red) *3x USB 3.2 Gen 1 ports *4x USB 2.0/1.1 ports *1x RJ-45 port *1x optical S/PDIF Out connector *5x audio jacks
BIOS: 128 Mbit flash, AMI UEFI BIOS
Stránka výrobce: https://www.gigabyte.com/Motherboard/A520-AORUS-ELITE-rev-10
