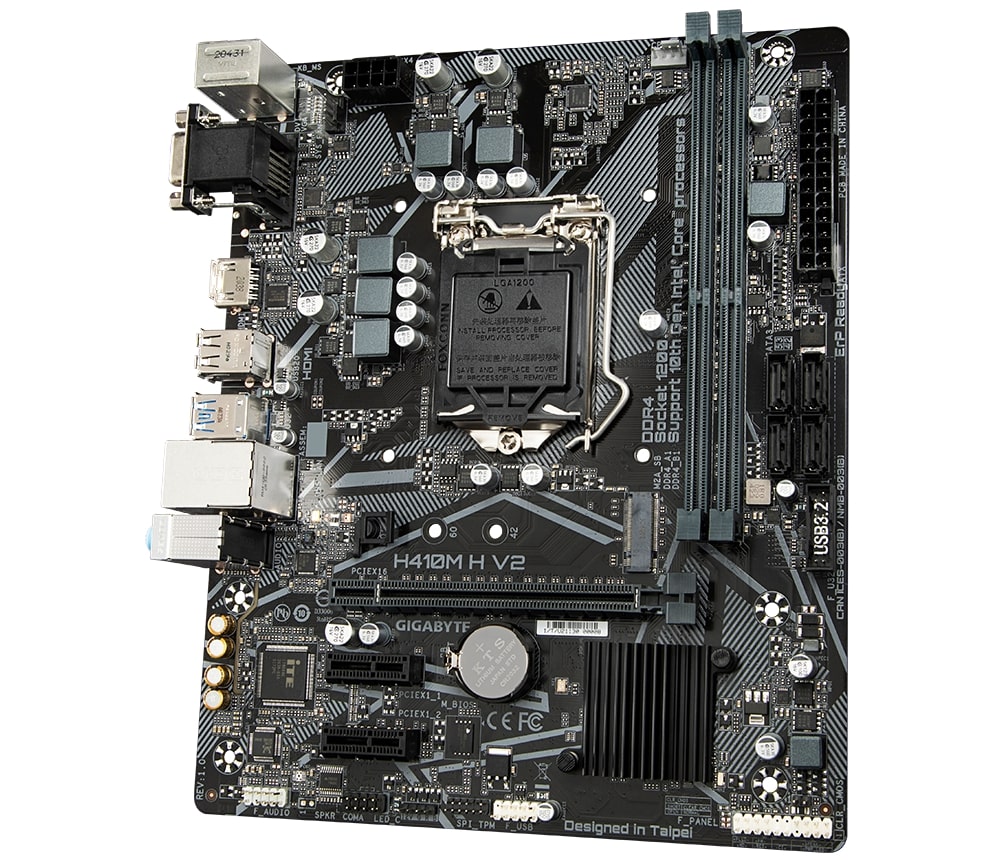

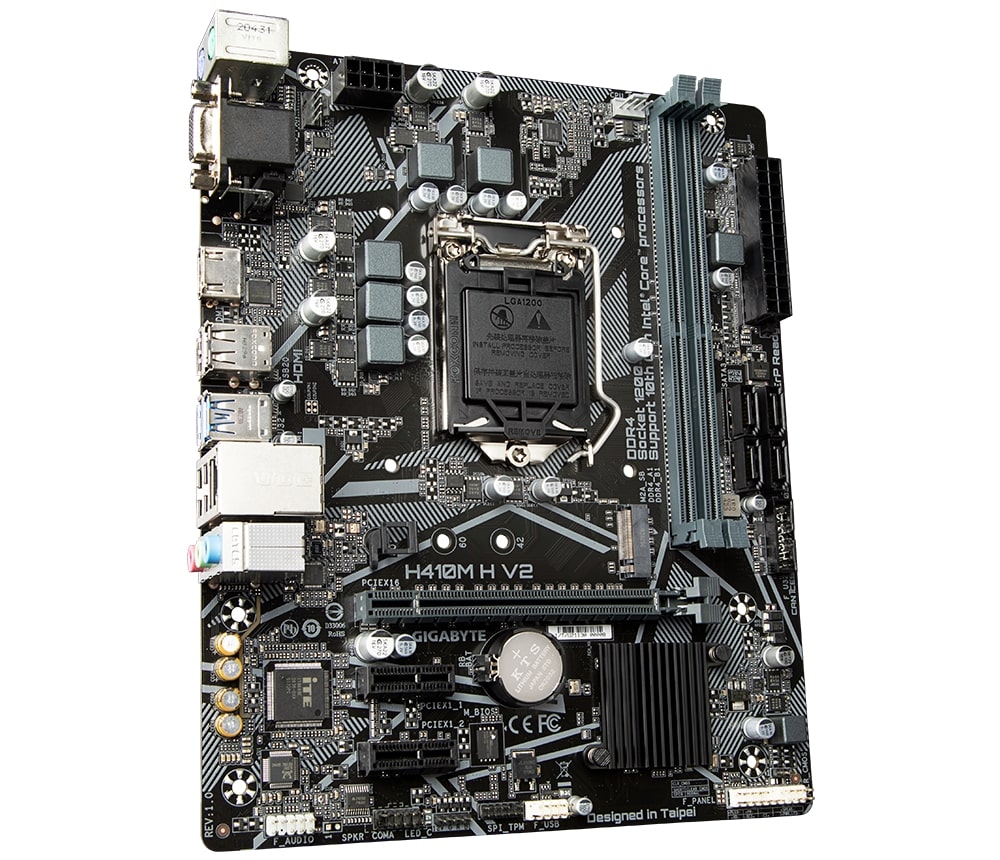

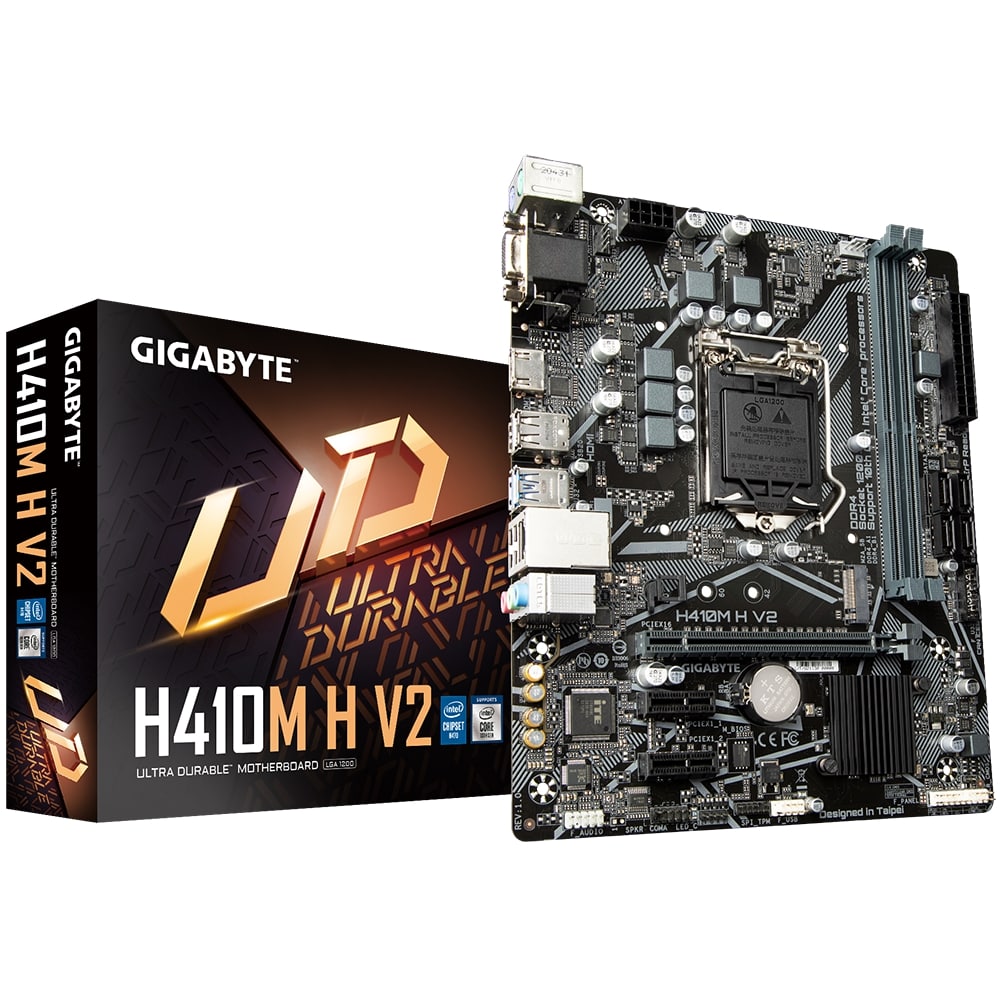

GIGABYTE H410M H V2

Popis - GIGABYTE H410M H V2

Chipset: Intel® H470
Rozměrový formát: Micro ATX Form Factor (226 mm x 185 mm)
Podpora pro procesory: Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
Patice procesoru: LGA 1200
Pozice na paměti: 2x DDR4 DIMM
Podpora pro paměti: *Intel® Core™ i9/i7 processors: DDR4 2933/2666/2400/2133 MHz memory modules *Intel® Core™ i5/i3/Pentium®/Celeron® processors: DDR4 2666/2400/2133 MHz memory modules
Max.velikost operační paměti: 64 GB
Podpora pro paměti typu: DDR4 *Dual channel memory architecture *ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) *non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules *Extreme Memory Profile (XMP) memory modules
Grafická karta: *Integrated Graphics Processor (na základě procesoru)
Zvuková karta: *Realtek® Audio CODEC
Síťová karta: *Intel® GbE LAN chip (1 Gbit/100 Mbit)
Rozšiřující sloty: *1x PCI Express x16 slot, running at x16 *2x PCI Express x1 slots
RAID řadič: 0, 1, 5, a 10
SATA: *4x SATA 6Gb/s
M.2: *1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
USB: *
zadní USB porty ( celkem 6 ) *2x USB 3.2 Gen 1 ports *4x USB 2.0/1.1 ports *
přední USB porty ( celkem 4 ) *2x USB 3.2 Gen 1 ports *2x USB 2.0/1.1 ports
Interní porty: *1x 24-pin ATX main power connector *1x 8-pin ATX 12V power connector *1x CPU fan header *1x system fan header *1x RGB LED strip header *4x SATA 6Gb/s connectors *1x front panel header *1x front panel audio header *1x USB 3.2 Gen 1 header *1x USB 2.0/1.1 header *1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *1x serial port header *1x Clear CMOS jumper

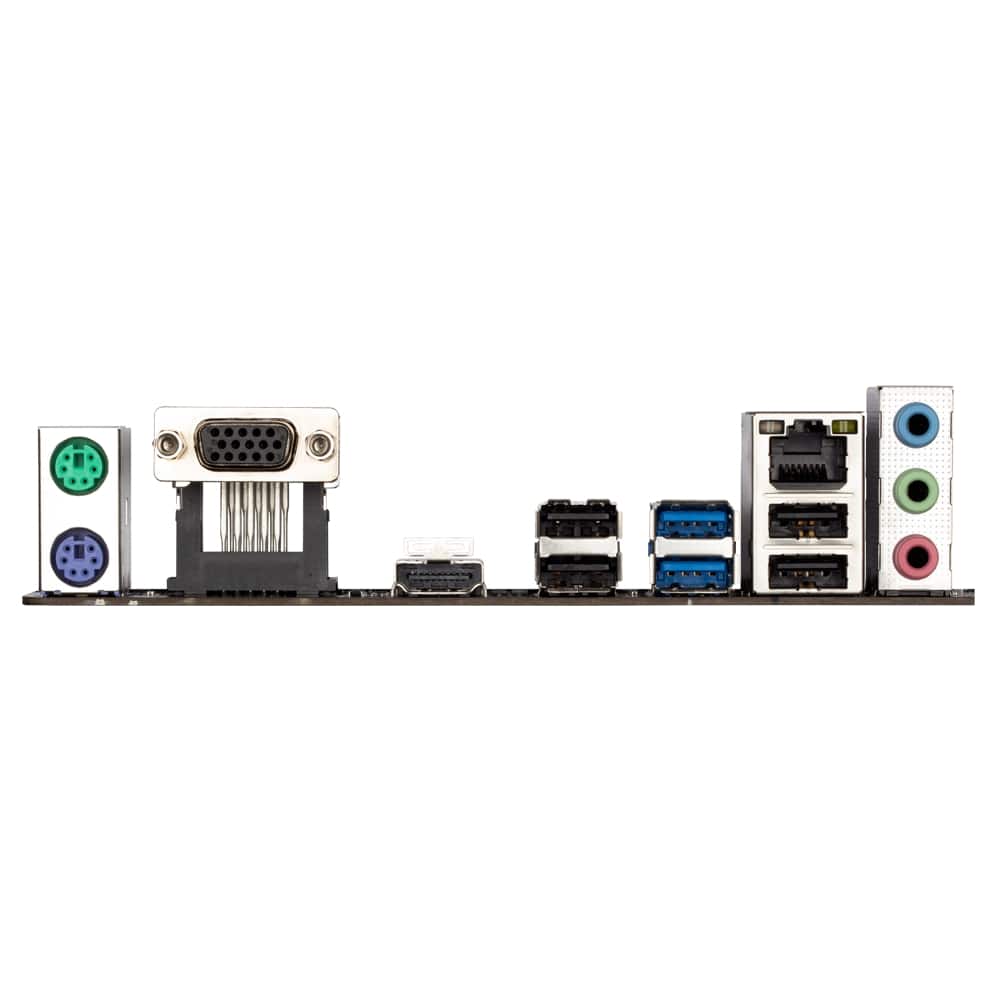

Externí porty: *1x PS/2 keyboard/mouse port *1x D-Sub port *1x HDMI port *2x USB 3.2 Gen 1 ports *4x USB 2.0/1.1 ports *1x RJ-45 port *3x audio jacks
BIOS: 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Stránka výrobce: https://www.gigabyte.com/Motherboard/H410M-H-V2-rev-10
