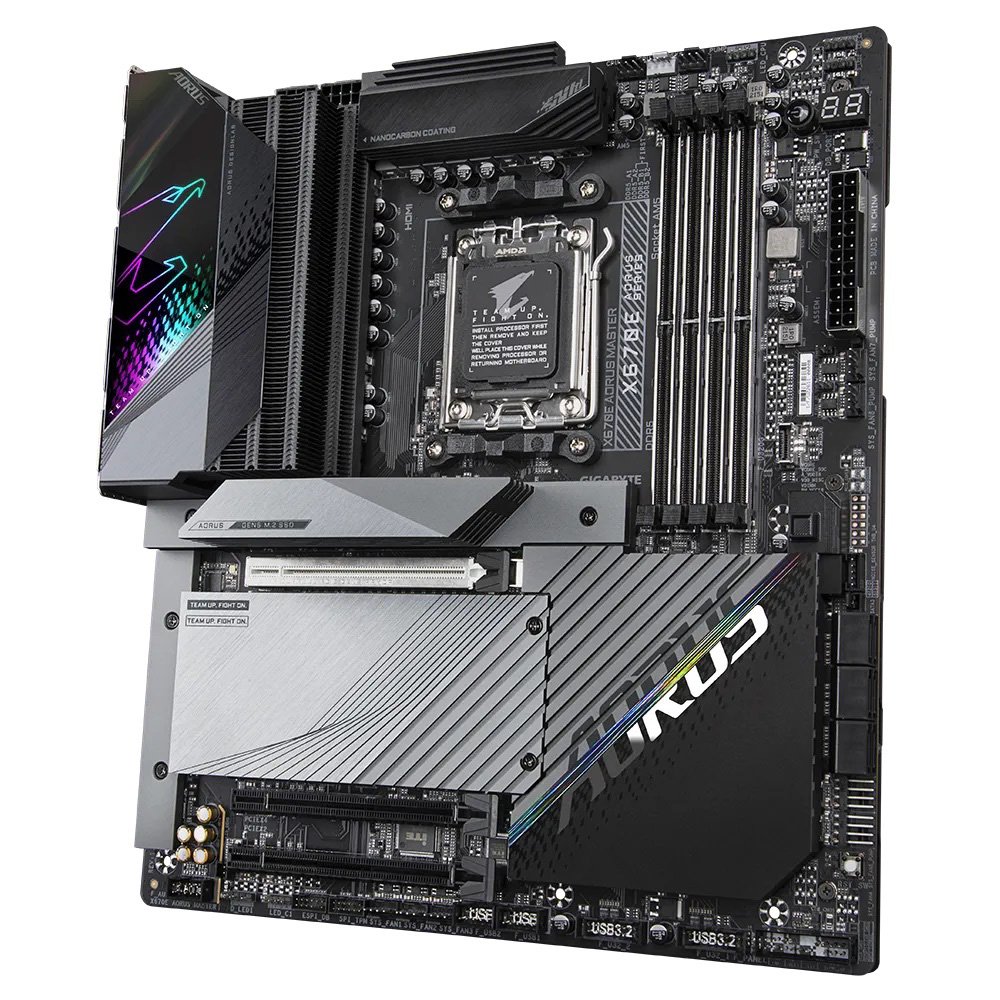

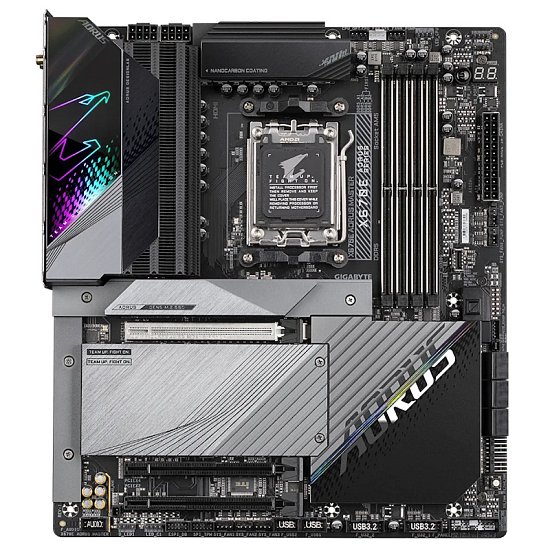

GIGABYTE X670E AORUS MASTER/AM5/E-ATX

Popis - GIGABYTE X670E AORUS MASTER/AM5/E-ATX

Chipset: AMD X670
Rozměrový formát: E-ATX Form Factor; (30.5cm x 26.9cm)
Podpora pro procesory: AMD Ryzen 7000 Series Processors
Patice procesoru: AM5
Pozice na paměti: 4 x DDR5 DIMM, Dual channel memory architecture
Podpora pro paměti: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s
Max.velikost operační paměti: 128 GB (32 GB single DIMM capacity)
Podpora pro paměti typu: non-ECC, XMP
Grafická karta: (na základě procesoru) *1 x DisplayPort 1.4, maximální rozlišení 3840x2160@144 Hz *1 x USB Type-C port maximální rozlišení 3840x2160@144 Hz *1 x HDMI port, maximální rozlišení 4096x2160@60 Hz
Zvuková karta: Realtek ALC1220-VB CODEC *2/4/5.1/7.1-channel output *Podpora S/PDIF Out
Síťová karta: *Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) *Wi-Fi 6E AX210 a, b, g, n, ac, ax *Bluetooth 5.3
Rozšiřující sloty: *1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 *1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2
RAID řadič: RAID 0, RAID 1, RAID 10
SATA: 6 x SATA 6Gb/s connectors
M.2: 4 x M.2 Socket 3 connectors
USB: *
Interní: *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *2 x USB 3.2 Gen 1 headers *2 x USB 2.0/1.1 headers *
Externí: *1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support *1 x USB Type-C port, with USB 3.2 Gen 2x2 support *4 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *2 x USB 2.0/1.1 ports
Interní porty: *1 x 24-pin ATX main power connector *2 x 8-pin ATX 12V power connectors *1 x CPU fan header *1 x water cooling CPU fan header *4 x system fan headers *4 x system fan/water cooling pump headers *2 x addressable LED strip headers *2 x RGB LED strip headers *1 x CPU cooler LED strip/RGB LED strip header *4 x M.2 Socket 3 connectors *6 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *2 x USB 3.2 Gen 1 headers *2 x USB 2.0/1.1 headers *1 x noise detection header *1 x THB_U4 add-in card connector *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *1 x power button *1 x reset button *1 x reset jumper *1 x Clear CMOS jumper *2 x temperature sensor headers

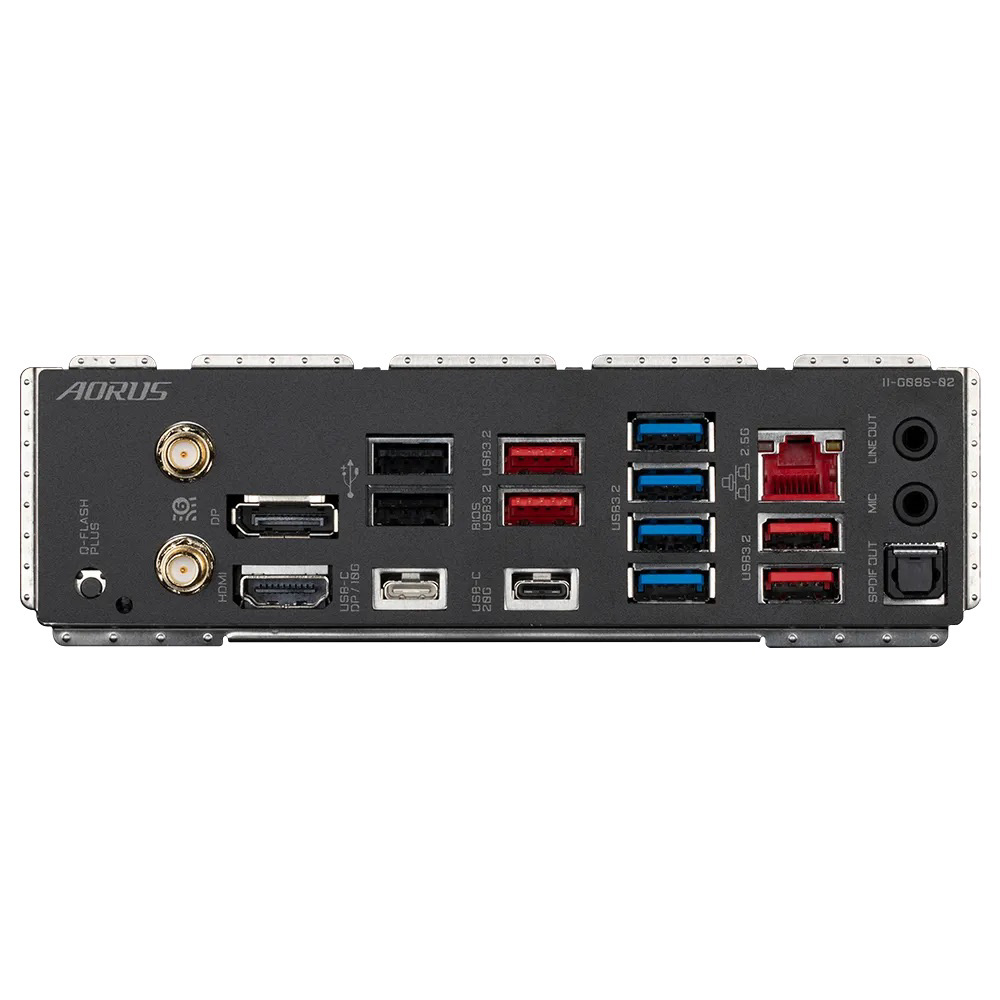

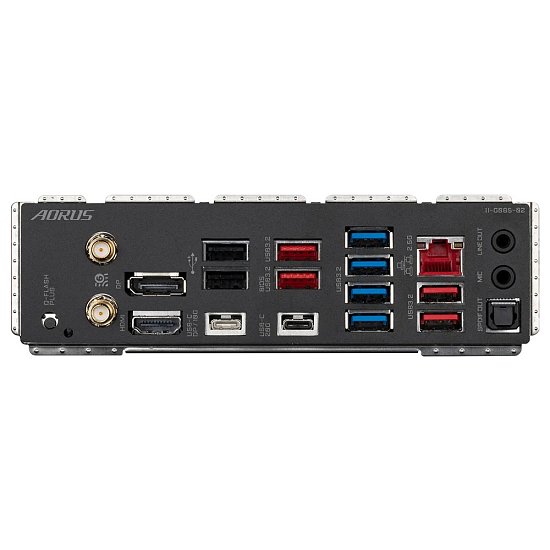

Externí porty: *1 x Q-Flash Plus button *2 x SMA antenna connectors (2T2R) *1 x DisplayPort *1 x HDMI port *1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support *1 x USB Type-C port, with USB 3.2 Gen 2x2 support *4 x USB 3.2 Gen 2 Type-A ports (red) *4 x USB 3.2 Gen 1 ports *2 x USB 2.0/1.1 ports *1 x RJ-45 port *1 x optical S/PDIF Out connector *2 x audio jacks
BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash
Stránka výrobce: http://www.gigabyte.com/Motherboard/X670E-AORUS-MASTER-rev-10#kf
