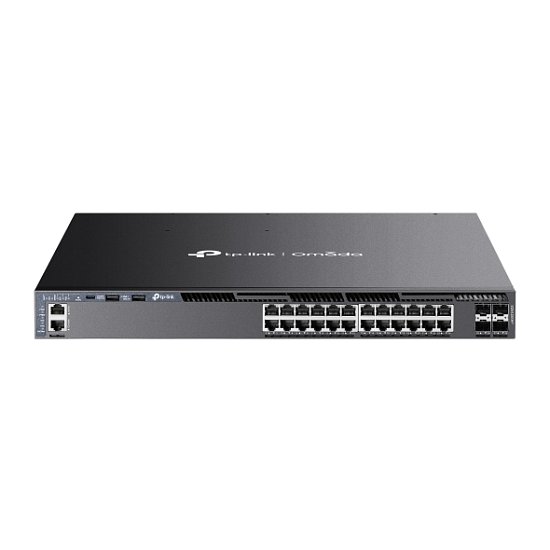

SG6428XHP Omada 24G stack L3 PoE+ 4x10Gb SPF+

Parametry - SG6428XHP Omada 24G stack L3 PoE+ 4x10Gb SPF+

SG6428XHP Omada 24portový gigabitový stohovatelný L3 řízený přepínač PoE+ se 4 sloty 10G
Funkce *24× gigabitových portů RJ45 PoE+ *4× 10 Gb/s SFP+ sloty *Celkový rozpočet PoE až 720 W* *Fyzické stohování pro vestavěnou redundanci a výkon *Funkce L3: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay *Strategie zabezpečení: ACL, zabezpečení portů, DoS Defend, 802.1X *Vysoce dostupný díky dvěma napájecím zdrojům vyměnitelným za provozu, VRRP a ERPS *Centralizovaná správa cloudu prostřednictvím řadičů Omada SDN *Samostatná správa přes web, CLI, SNMP a RMON

Specifikace

Hardware Interface *24× 10/100/1000 Mbps PoE+ RJ45 Ports *4× 10G SFP+ Slots *2× USB 2.0 Ports *1× RJ45 Console Port *1× USB Type-C Console Port *1× RJ45 Management Port Fan Quantity *Four Field-replaceable and Hot-swappable Fans Power Supply *Two Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz) PoE Ports (RJ45) *Standard: 802.3at/af compliant *PoE+ Ports: 24 Ports, up to 30 W per port *PoE Power Budget: up to 720 W Max. Power Consumption *42.9 W (110 V/60 Hz) (With no PD connected) *916.6 W (110 V/60 Hz) (With 720 W PD connected and powered by 2× PSM500-AC) Dimensions ( W x D x H ) *440 × 420 × 44 mm Mounting *Rack Mountable Max Heat Dissipation *146.29 BTU/hr (110 V/60 Hz) (With no PD connected) *3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC)
Výkon Switching Capacity *128 Gbps per Unit Stacking *Stacking Number: 8 *Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports) *Stack Bandwidth: Up to 80 Gbps (4 stack ports) Packet Forwarding Rate *95.2 Mpps MAC Address Table *32 K Packet Buffer Memory *3 MB Jumbo Frame *9 KB
Software
Quality of Service -Class of Service *8 Queues of Priority *Port Priority *IEEE 802.1p Priority *DSCP Priority *Queue Min-Bandwidth *Schedule Mode (SP, WRR, SP+WRR) -Bandwidth Control *Rate Limit *Storm Control -Voice VLAN -User-Defined OUI -Smoother Performance -Action for Flows *QoS remark (802.1P Remark, DSCP Remark)
L3 Features -IP Interfaces: *IPv4: Max 256, IPv6: Max 256 -Static Routing *Max 1,024, IPv6: Max 512 -Host Route Table: Max 6,100 entries -RIP: Version v1/v2, Max 8,190 -OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097 -VRRP: Version v2/v3, Max 64 groups -ECMP: 256 entries, max 32 ECMP Nexthops per Destination -Static ARP: 512 static entries -Dynamic ARP: 7,680 dynamic entries -Proxy ARP -DHCP Server: *Max 8K IP Pools *Max 1,000 Manual Binding Entries -DHCP Relay: *Relayed Interface *Relayed VLAN
L2 and L2+ Features -Link Aggregation -Spanning Tree Protocol -Port-based and VLAN-based Loopback Detection -802.3x Flow Control -Supports 2,048 IGMP groups -ERPS -Mirroring -RSPAN -MAC Address Table -PIM-DM (IPv4) -Multicast *IGMP Snooping *MLD Snooping *L2 Multicast Table *Fast Leave *Multicast VLAN Registration (MVR) *Static Multicast IP *Multicast Filtering
Advanced Features -Automatic Device Discovery -Batch Configuration -Batch Firmware Upgrading -Intelligent Network Monitoring -Abnormal Event Warnings -Unified Configuration -Reboot Schedule
ISP Features -802.3ah Ethernet Link OAM -L2PT (Layer 2 Protocol Tunneling) -Device Link Detect Protocol (DLDP) -DDM -sFlow -PPPoE ID Insertion
VLAN -Max 4K VLAN Group (802.1q VLAN) -802.1Q Tagged VLAN -MAC VLAN Entries: 200 -Multicast VLAN -Management VLAN -VLAN VPN (QinQ): Max 256 entries -GVRP -Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries -VLAN VPN -Voice VLAN -Private VLAN
Security -Port Isolation -CPU-Deffend -ARP Inspection (Dynamic ARP Inspection) -DoS Defend -IP-MAC-Port Binding *1,024 Entries *DHCP Snooping *ARP Inspection *IPv4 Source Guard -IPv6-MAC *Port Binding *1,024 Entries *DHCPv6 Snooping *ND Detection *ND Snooping *IPv6 Source Guard -DHCP Filter -Static/Dynamic Port Security *Up to 64 MAC addresses per port -Broadcast/Multicast/Unknown-unicast Storm Control *kbps/ratio control mode -802.1X *Port base authentication *Mac base authentication *VLAN Assignment *MAB *Guest VLAN *RADIUS authentication and accountability support -AAA (including TACACS+) -Secure web management through HTTPS with SSLv3/TLS 1.2 -Secure Command Line Interface (CLI) management with SSHv2 -IP/Port/MAC-based access control
Management
Management Features -Web-based GUI -Command Line Interface (CLI) through console port, telnet -SNMPv1/v2c/v3 *Trap/Inform *RMON (1, 2, 3, 9 groups) -SDM Template -DHCP/BOOTP Client -802.1ab LLDP/LLDP-MED -DHCP Auto Install -Dual Image, Dual Configuration -CPU Monitoring -Cable Diagnostics -Password Recovery -SNTP -System Log -EEE
