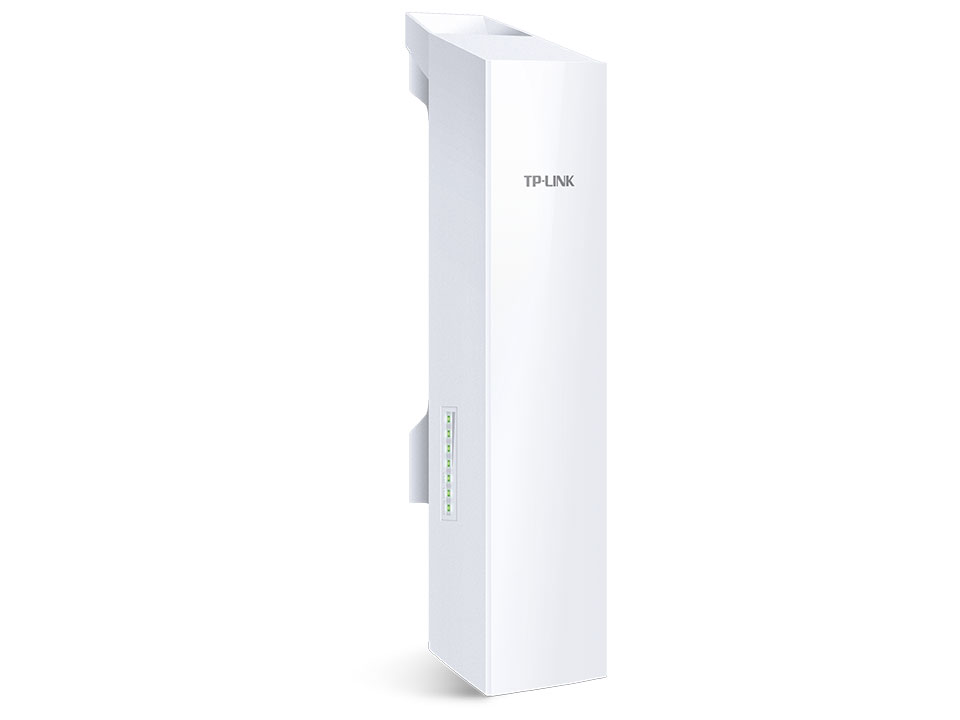

TP-Link CPE220 Outdoor 2,4GHz 300Mbps

Popis - TP-Link CPE220 Outdoor 2,4GHz 300Mbps

Venkovní CPE zařízení 2.4GHz 300Mbit/s 12dBi
CPE220 - Vestavěná 12dBi 2x2 směrová MIMO anténa s dvojitou polarizací - Nastavitelný výkon vysílání od 0 do 30dBm/1000mWOptimalizace na úrovni systému pro více než 13km dosah bezdrátového přenosu - Technologie TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) zlepšuje výkon zařízení co se týče propustnosti, kapacity a latence, ideální pro aplikace PTMP - Centralizovaný sytém ovládání - řízení Pharos - Provozní režimy AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) - Pasivní PoE adaptér podporuje napájení přes Ethernet až na 60 metrů a umožňuje vzdálené resetování zařízení
HARDWARE FEATURES Processor Qualcomm Atheros 560MHz CPU, MIPS 74Kc Memory 64MB DDR2 RAM, 8MB Flash Interface: - 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) - 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) - 1 Grounding Terminal - 1 Reset Button Power Supply: - Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) - Voltage range: 16-27VDC Dimensions (W X D X H) 11×3.1×2.1 inch (276×79×60 mm) Power Consumption 10.8 Watts Max, Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Antenna Type: - Built-in 12dBi 2x2 Dual-polarized Directional Antenna - Beam Width: 60° (H-Plane) / 30° (E-Plane), Note: For more details, please refer to datasheet Protection: - 15KV ESD Protection - 6KV Lightning Protection Enclosure: - Outdoor ASA stabilized plastic material - IPX5 waterproof Certification
WIRELESS FEATURES Wireless Standards IEEE 802.11b/g/n (with Pharos MAXtream disabled) Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds: - Up to 300Mbps (40MHz,Dynamic) - Up to 144.4Mbps (20MHz,Dynamic) - Up to 72.2Mbps (10MHz,Dynamic) - Up to 36.1Mbps (5MHz,Dynamic) Frequency 2.4~2.483GHz, Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. Transmission Power 30dBm/1000mw (Adjustable power by 1dBm), Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES Wireless Configurations: - Pharos MAXtream TDMA Technology - 802.11b/g/n Modes - Selectable Channel Width: 5/10/20/40MHz - Automatic Channel Selection - Transmission Power Control - Dynamic Frequency Selection (DFS) - WDS Enable/Disable - Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption - SSID Broadcast Enable/Disable - Multi-SSID with VLAN Tagging (AP mode only) - Distance/ACK Timeout Setting - Wireless MAC Address Filter - Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation > Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Management: - Discovery and Remote Management via Pharos Control application - HTTP/HTTPS Web-based management - System Log - SNMP Agent(v2c) - Ping Watch Dog - Dynamic DDNS - SSH Server System Tools: - Wireless Signal Quality Indicators: - Signal Strength/Noise/Transmit CCQ/CPU/Memory - Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP - Spectrum Analyzer - Speed Test - Ping - Traceroute System-level Optimizations: - Optimized IGMP Snooping/Proxy for multicast applications - Hardware watch dog
POE ADAPTER FEATURES Interfaces: - 1 AC Jack with Earth Ground - 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data) - 1 10/100Mbps/1000Mbps Shielded Ethernet Port (Data) Efficiency >80% Button Remote Reset Button Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark Power Status LEDs: - 0~0.8A: Green - 0.8A~1.0A: Red Output 24VDC, 1.0A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) Input Voltage 100VA~240VAC @ 50Hz~60Hz Dimensions(W x D x H) 110×57×33.5mm Input Current 0.8A Max @ 100VAC Input 100-240VAC, 50/60Hz Output Voltage 24VDC(+4,5pins; -7,8pins)
OTHERS Certification CE, FCC, RoHS, IPX5 Package Contents: - Outdoor Wireless CPE - 24V 1A Passive PoE Adapter - Pole Mounting Straps - AC Power Cord - Installation Guide System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended. Environment: - Operating Temperature: -30 C - 70 C - Storage Temperature: -40 C - 70 C - Operating Humidity: 10%~90% non-condensing - Storage Humidity: 5%~95% non-condensing
