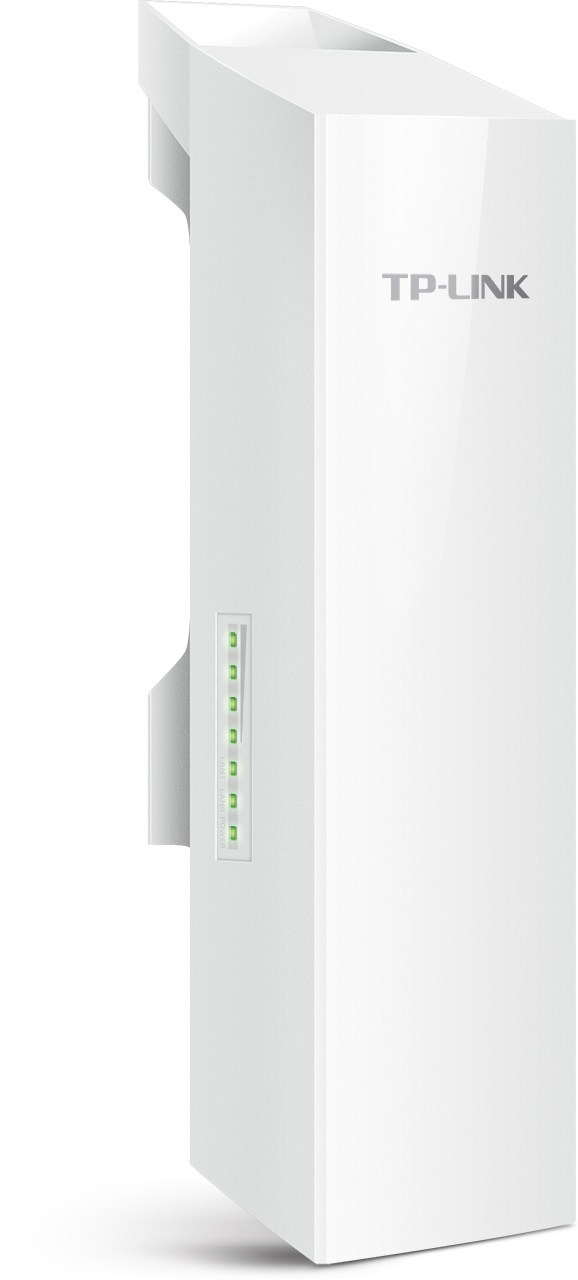

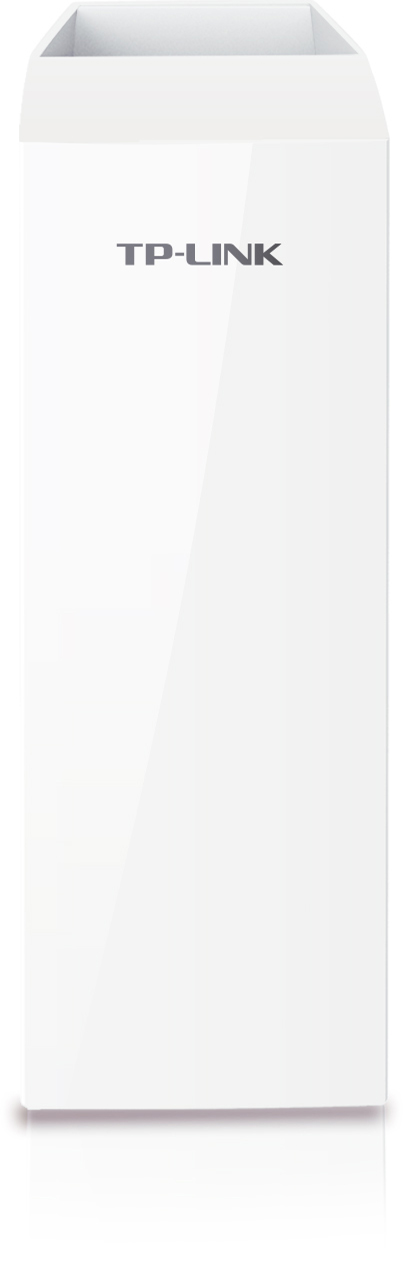

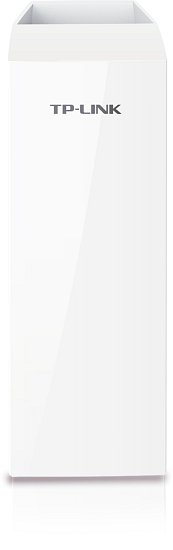

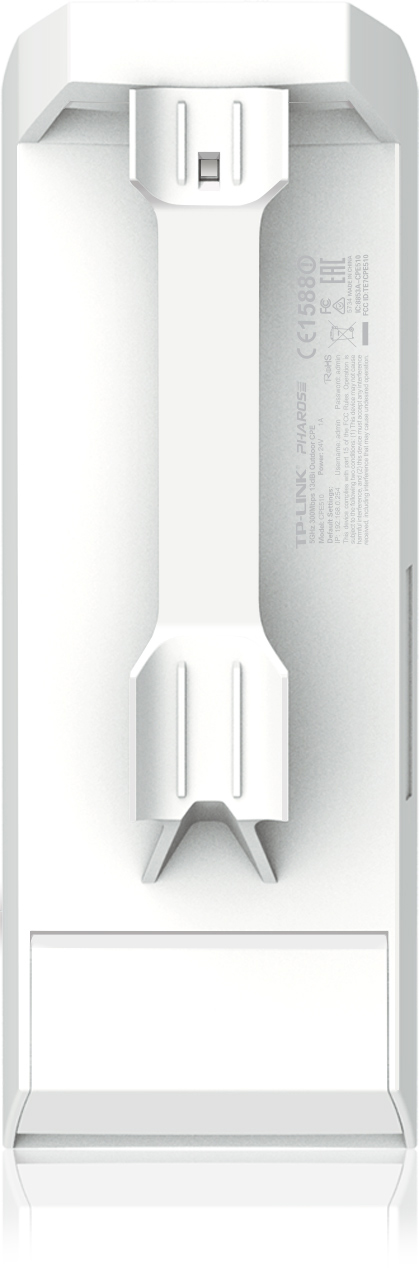

TP-Link CPE510 Outdoor 5GHz 300Mbps

Parametry - TP-Link CPE510 Outdoor 5GHz 300Mbps

TP-Link CPE510 Outdoor 5GHz 300Mbps
PŘEHLED * Vestavěná 13dBi 2x2 duální polarizovaná směrová anténa MIMO * Nastavitelný vysílací výkon od 0 do 27 dBm/500mW * Optimalizace na úrovni systému pro bezdrátový přenos do vzdálenosti více než 15 km * Technologie TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) zlepšuje výkon zařízení co se týče propustnosti, kapacity a latence, ideální pro aplikace PTMP * Centralizovaný systém správy – řízení Pharos * Provozní režimy AP / Klient / AP směrovač / Směrovač AP klienta (WISP) * Pasivní PoE adaptér podporuje napájení přes Ethernet až na 60 metrů a umožňuje vzdálené resetování zařízení
SPECIFIKACE HARDWAROVÉ FUNKCE Processor * Qualcomm Atheros Enterprise AR9350B 560MHz CPU, MIPS 74Kc Memory * 64MB DDR2 RAM, 8MB Flash Rozhraní * 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) * 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) * 1 Grounding Terminal * 1 Reset Button Rozměry (š*h*v) * 224 x 79 x 60 mm Typ antény * Built-in 13dBi 2x2 Dual-polarized Directional Antenna * Beam Width: 45° (H-Plane) / 30° (E-Plane) * Note: For more details, please refer to datasheet Ochrana * 15KV ESD Protection * 6000V Lightning Protection Spotřeba * 13 Watts Max * Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. Napájení * Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) * Voltage range: 16-27VDC Enclosure * Outdoor ASA stabilized plastic material * IPX5 waterproof Certification FUNKCE BEZDRÁTOVÉ SÍTĚ Standardy bezdrátové sítě * IEEE 802.11a/n (with Pharos MAXtream disabled) Proprietary Protocol * TDMA Mode (with Pharos MAXtream enabled) Wireless Speeds * Up to 300Mbps (40MHz,Dynamic) * Up to 144.4Mbps (20MHz,Dynamic) * Up to 72.2Mbps (10MHz,Dynamic) * Up to 36.1Mbps (5MHz,Dynamic) Frekvence * 5.15~5.85GHz Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. Citlivost příjmu * 802.11a: * 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm * 802.11n: * MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, * MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, * MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, * MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, * MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm Transmission Power * 27dBm/500mw (Adjustable power by 1dBm) * Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. SOFTWAROVÉ FUNKCE Wireless Configurations * Pharos MAXtream TDMA Technology * 802.11a/n Modes * Selectable Channel Width: 5/10/20/40MHz * Automatic Channel Selection * Transmission Power Control * Dynamic Frequency Selection (DFS) * WDS Enable/Disable * Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption * SSID Broadcast Enable/Disable * Multi-SSID with VLAN Tagging (AP mode only) * Distance/ACK Timeout Setting * Wireless MAC Address Filter * Wireless Advanced: * > Beacon Interval/RTS Threshold/Fragmentation * >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia Správa * Discovery and Remote Management via Pharos Control application * HTTP/HTTPS Web-based management * System Log * SNMP Agent(v2c) * Ping Watch Dog * Dynamic DDNS * SSH Server System Tools * Wireless Signal Quality Indicators: * Signal Strength/Noise/Transmit CCQ/CPU/Memory * Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP * Spectrum Analyzer * Speed Test * Ping * Traceroute System-level Optimizations * Optimized IGMP Snooping/Proxy for multicast applications * Hardware watch dog JINÉ Certifikace * CE, FCC, RoHS, IPX5 Obsah balení * Outdoor Wireless CPE * 24V 1A Passive PoE Adapter * Pole Mountin
