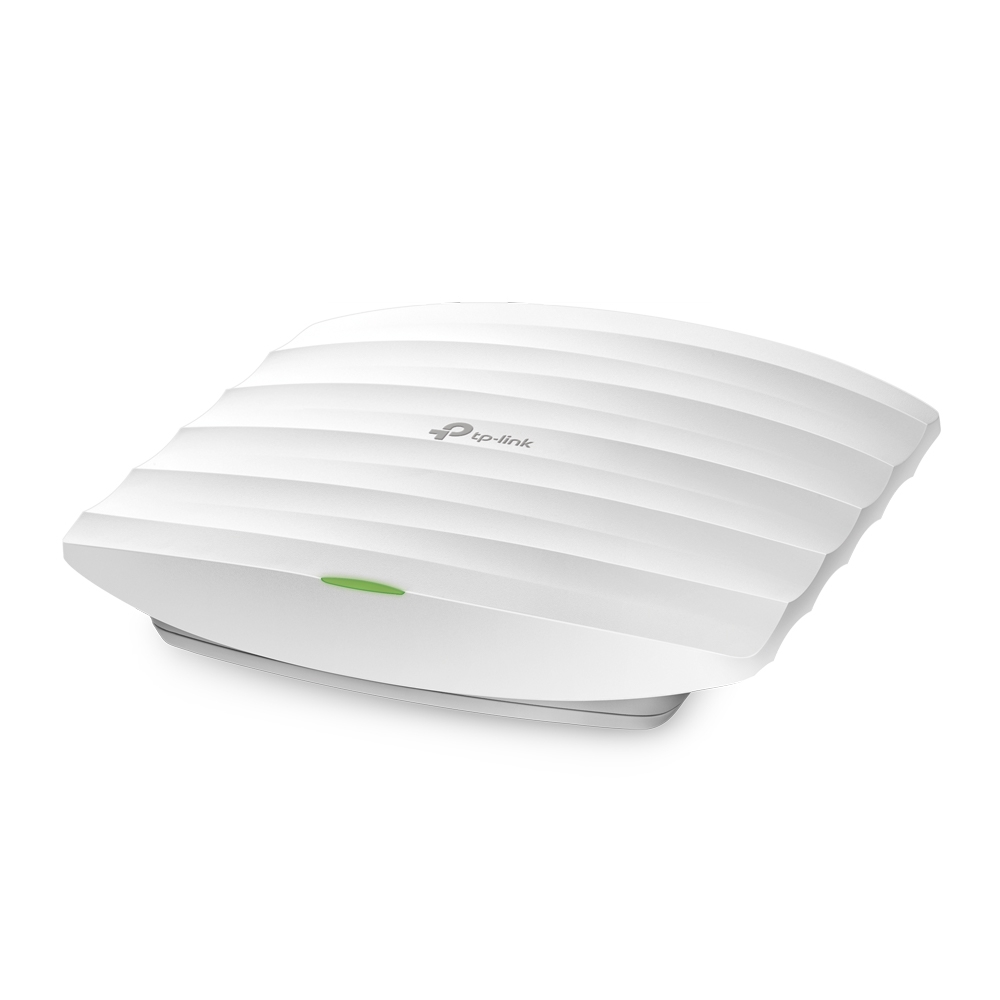

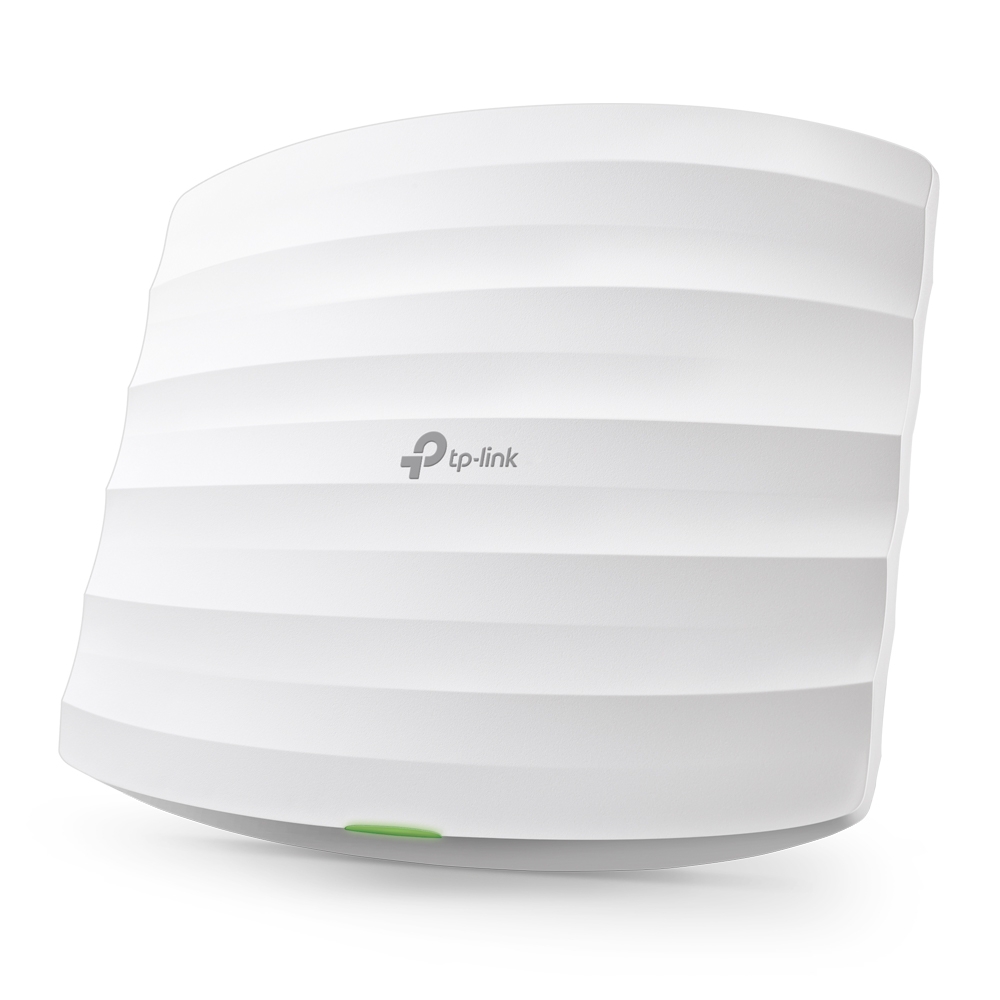

TP-Link EAP115 N300 WiFi Ceiling/Wall Mount AP Omada SDN

Parametry - TP-Link EAP115 N300 WiFi Ceiling/Wall Mount AP Omada SDN

300Mbps Wireless N Ceiling Mount Access Point: EAP115 300Mbps Wireless N Ceiling Mount Access Point, Qualcomm, 300Mbps at 2.4GHz, 802.11b/g/n, 1 10/100Mbps LAN, 802.3af PoE Supported, Centralized Management, Load Balance, Rate Limit, Captive Portal, Cluster Mode, 2 Internal Antennas, Ceiling/Wall Mount
Krátké představení Omada SDN: https://www.youtube.com/watch?v=Veb8-o8EE6U
PŘEHLED *Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs *The user-friendly Cluster Mode allows manage up to 24 (EAP115) without requiring any extra hardware or software *Supports Power over Ethernet (802.3af) for convenient and affordable installation *Simple mounting design for easy attachment to a wall or ceiling *Captive portal provides one convenient method of authentication for Wi-Fi guests *Enterprise class Wi-Fi security help to decrease network security threats *Multi-SSID divides multiple wireless networks for different user types
TECHNICKÁ SPECIFIKACE
Interface * Fast Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)
Button * Reset
Power Supply * PoE or external 12VDC/1.0A power supply
Power Consumption * 5W
Wireless Standards * IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) * 180*180*47.5mm

Antenna Type * Internal 2* 3dBi Omni
Mounting * Ceiling /Wall Mounting (Kits included)
Physical Security Lock * Kensington Lock Slot
Watch Dog * Yes
WIRELESS FEATURES
Wireless Standards * IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency * 2.4-2.4835GHz
Signal Rate * 11n: Up to 300Mbps(dynamic) * 11g: Up to 54Mbps(dynamic) * 11b: Up to 11Mbps(dynamic)
Reception Sensitivity * 300M: -71dBm@10% PER * 150M: -75dBm@10% PER * 54M: -78dBm@10% PER * 11M: -93dBm@8% PER * 6M: -92dBm@10% PER * 1M: -96dBm@8% PER
Wireless Functions * Multiple SSIDs (Up to 8 SSIDs) * Enable/Disable Wireless Radio * Automatic Channel Assignment * Transmit Power Control (Adjust Transmit Power on dBm) * QoS(WMM) * Rate Limit * Reboot Schedule * Wireless Schedule * Wireless Statistics based on SSID/AP/Client
Wireless Security * Captive Portal Authentication * Access Control * Wireless Mac Address Filtering * Wireless Isolation Between Clients * SSID to VLAN Mapping * Rogue AP Detection * 802.1X Support * 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power * CE: * <20dBm * FCC: * <26dBm * MANAGEMENT
Auranet Controller Software * Yes
Cluster Mode * Yes
Email Alerts * Yes
LED ON/OFF Control * Yes
Management MAC Access Control * Yes
SNMP * v1,v2c
System Logging Local/Remote Syslog * Local/Remote Syslog
Telnet * Yes
Web-based Management * HTTP/HTTPS
OTHERS
Certification * CE, FCC, RoHS
Package Contents * 300Mbps Wireless N Ceiling Mount Access Point EAP115 * Power Adapter * Mounting Kits, * Installation Guide
System Requirements * Microsoft Windows 10/8/7/Vista/XP
Environment * Operating Temperature: 0°C~40°C * Storage Temperature: -40°C~70°C * Operating Humidity: 10%~90% non-condensing * Storage Humidity: 5%~90% non-condensing
