UBNT USW-Enterprise-8-PoE

Parametry - UBNT USW-Enterprise-8-PoE

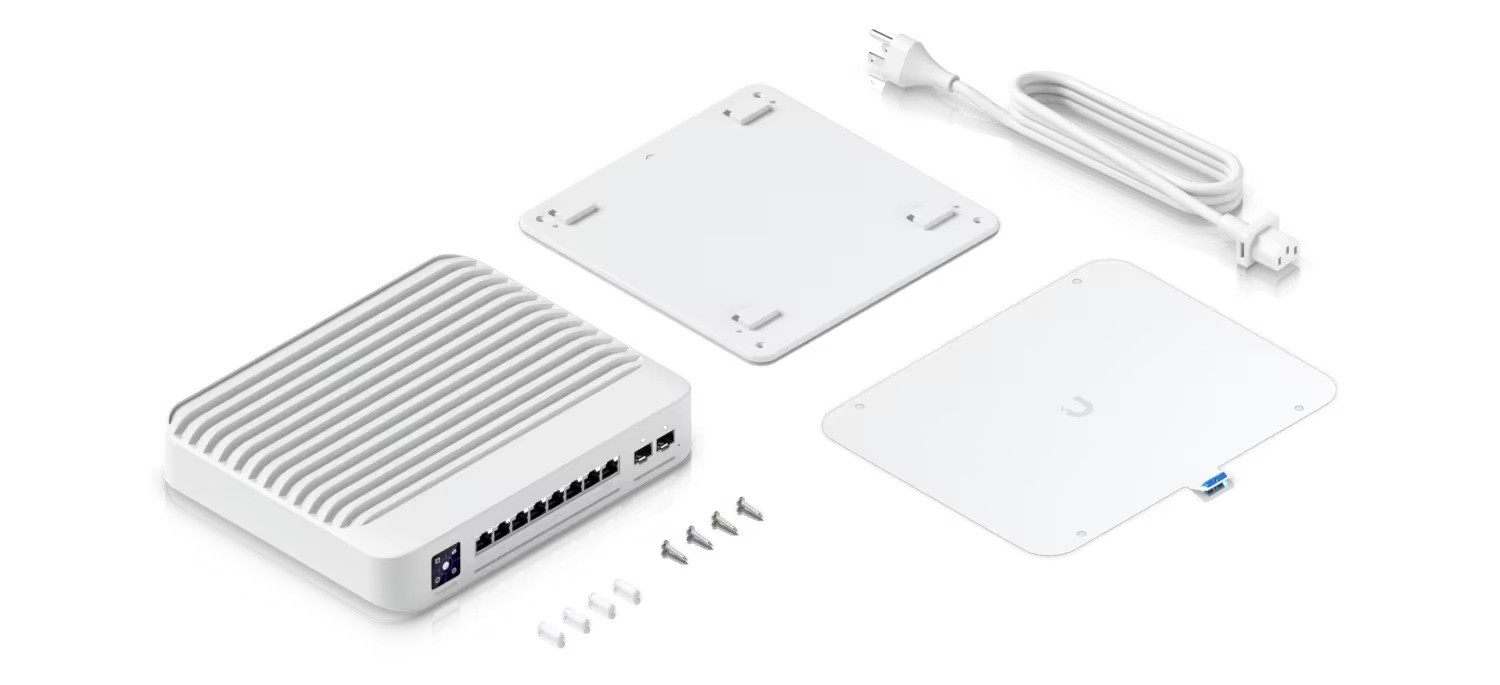

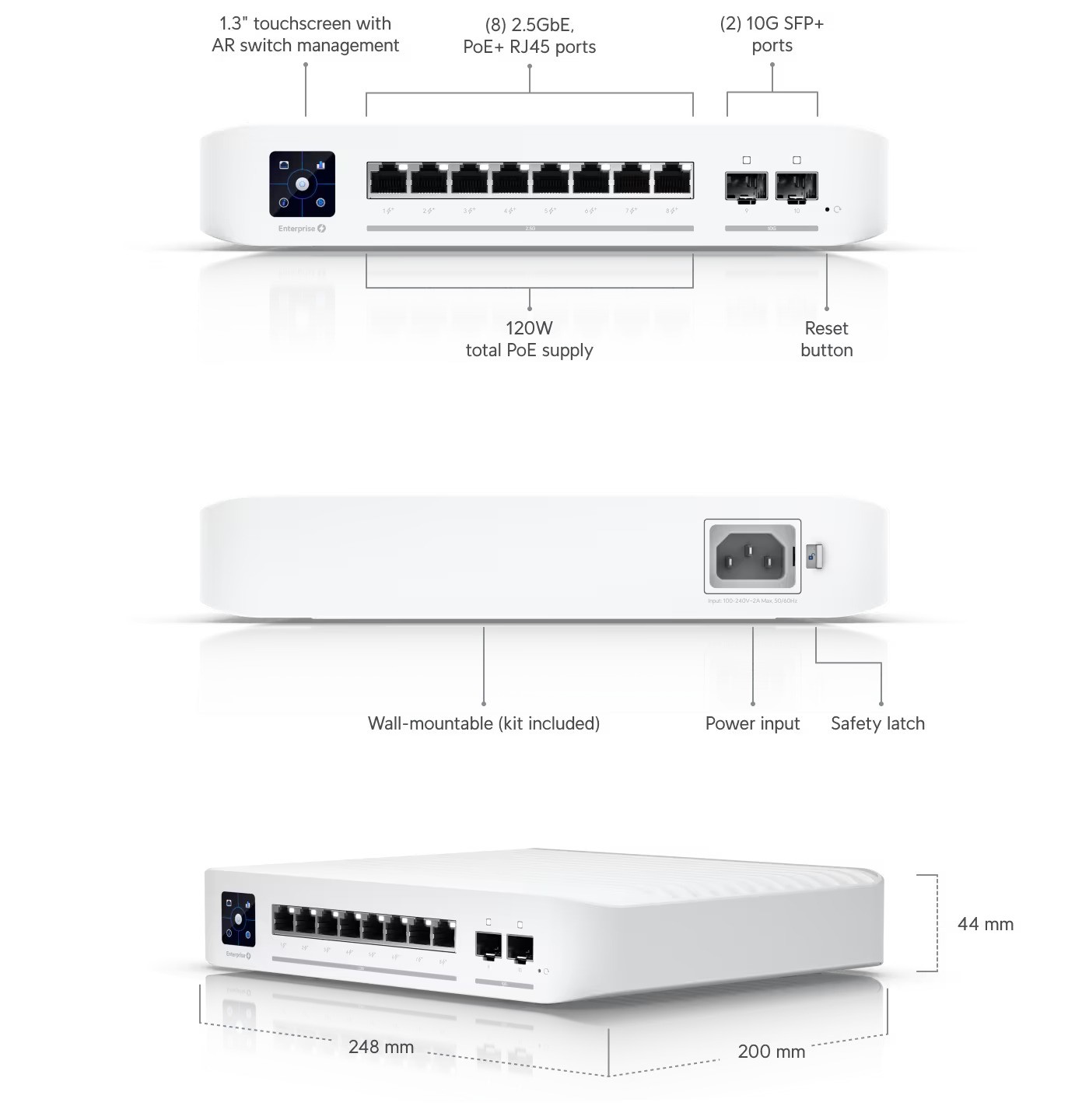

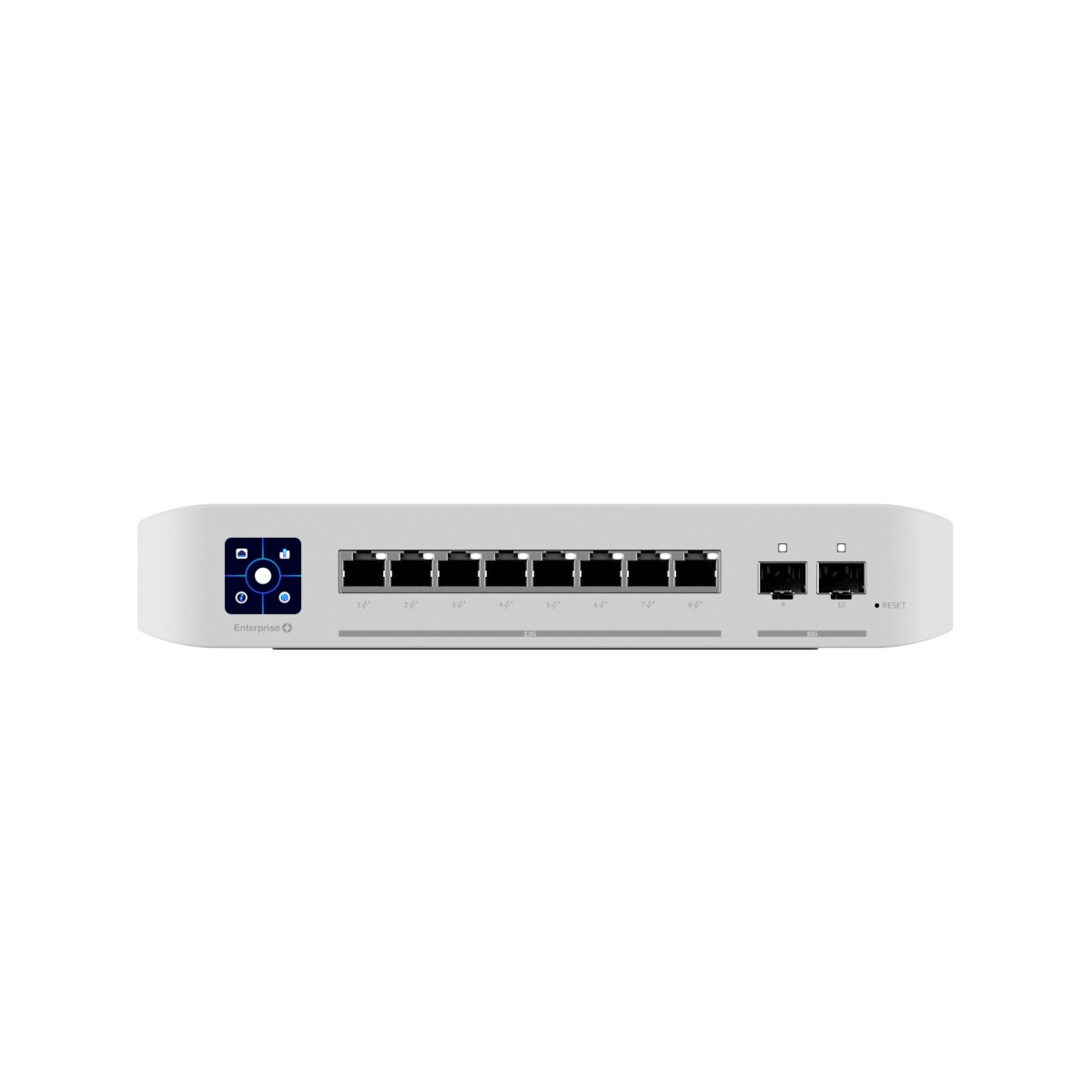

Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports. The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app. Features: (1) 1.3" LCM color touchscreen with AR switch management (8) 2.5GbE, 802.3at PoE+ RJ45 ports (2) 10G SFP+ ports 120W total PoE supply Wall-mountable (kit included) * Layer 3 switching will become available in a future firmware update. Technical Specifications Mechanical Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7") Weight 2.4 kg (5.29 lb) Enclosure Materials Polycarbonate Mount Material Polycarbonate Hardware Total Non-Blocking Throughput 40 Gbps Switching Capacity 80 Gbps Forwarding Rate 59.52 Mpps Max PoE Power 120W Power Method (1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input Power Supply AC/DC, Internal, 150W Management Interface Ethernet In-Band Networking Interfaces (8) 1/2.5 Gbps RJ45 Ethernet SFP+ Interfaces (2) 1/10 Gbps SFP+ PoE Interfaces (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) Max. PoE+ Wattage per Port by PSE 32W Voltage Range 802.3af Mode 44 to 57V Voltage Range 802.3at Mode 50 to 57V Services SMB Layer 3* PoE Gigabit Ethernet Switch * Layer 3 feature will be available in the future firmware release. LCM Display (1) 1.3" Touchscreen Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV Operating Temperature -5 to 45° C (23 to 113° F) Operating Humidity 10 - 90% Noncondensing Certifications CE, FCC, IC LEDs Ethernet White: Link or Activity SFP+ White: Link or Activity
