UBNT USW-EnterpriseXG-24

Parametry - UBNT USW-EnterpriseXG-24

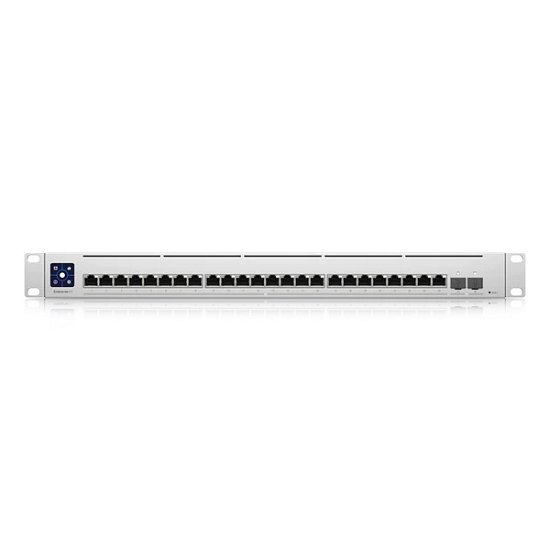

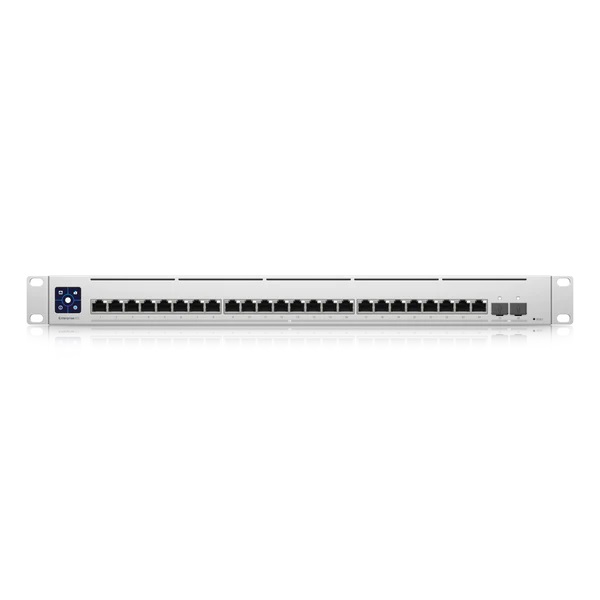

Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app. Features: (1) 1.3" LCM color touchscreen with AR switch management (24) 10GbE RJ45 ports (2) 25G SFP28 ports (1) USP RPS DC input Technical Specifications Mechanical Dimensions 442 x 44 x 285 mm (17.4 x 1.7 x 11.2") Weight Without Mount: 4.47 kg (9.85 lb) With Mount: 4.57 kg (11.02 lb) Enclosure Materials SGCC Steel Mount Material SGCC Steel Hardware Total Non-Blocking Throughput 290 Gbps Switching Capacity 580 Gbps Forwarding Rate 431.52 Mpps Max. Power Consumption 100W Power Method (1) Universal AC input: 100-240VAC, 2A Max., 50/60 Hz (1) USP-RPS DC input: 11.5VDC, 8.7A Power Supply AC/DC, Internal, 100W Management Interface Ethernet In-Band Networking Interfaces (24) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet SFP28 Interfaces (2) 1/10/25 Gbps SFP28* *The two SFP28 ports don't support mixed speed at 25Gbps mode. Once one of the SFP28 ports is con gured at 25Gbps mode, the others will be limited at 25Gbps too. The SFP28 ports only support mixed speed when all ports are at 1Gbps or 10Gbps. Services SMB Layer 3 Gigabit Ethernet Switch ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV LCM Display 1.3" Touchscreen Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted Button Factory Reset LEDs White: Link or Activity Operating Temperature -5 to 40° C (23 to 104° F) Operating Humidity 10 - 95% Noncondensing Certifications CE, FCC, IC Layer 3 switching features Single-row RJ45 port layout for easy patch panel cable management
