UBNT USW-Flex-XG

Parametry - UBNT USW-Flex-XG

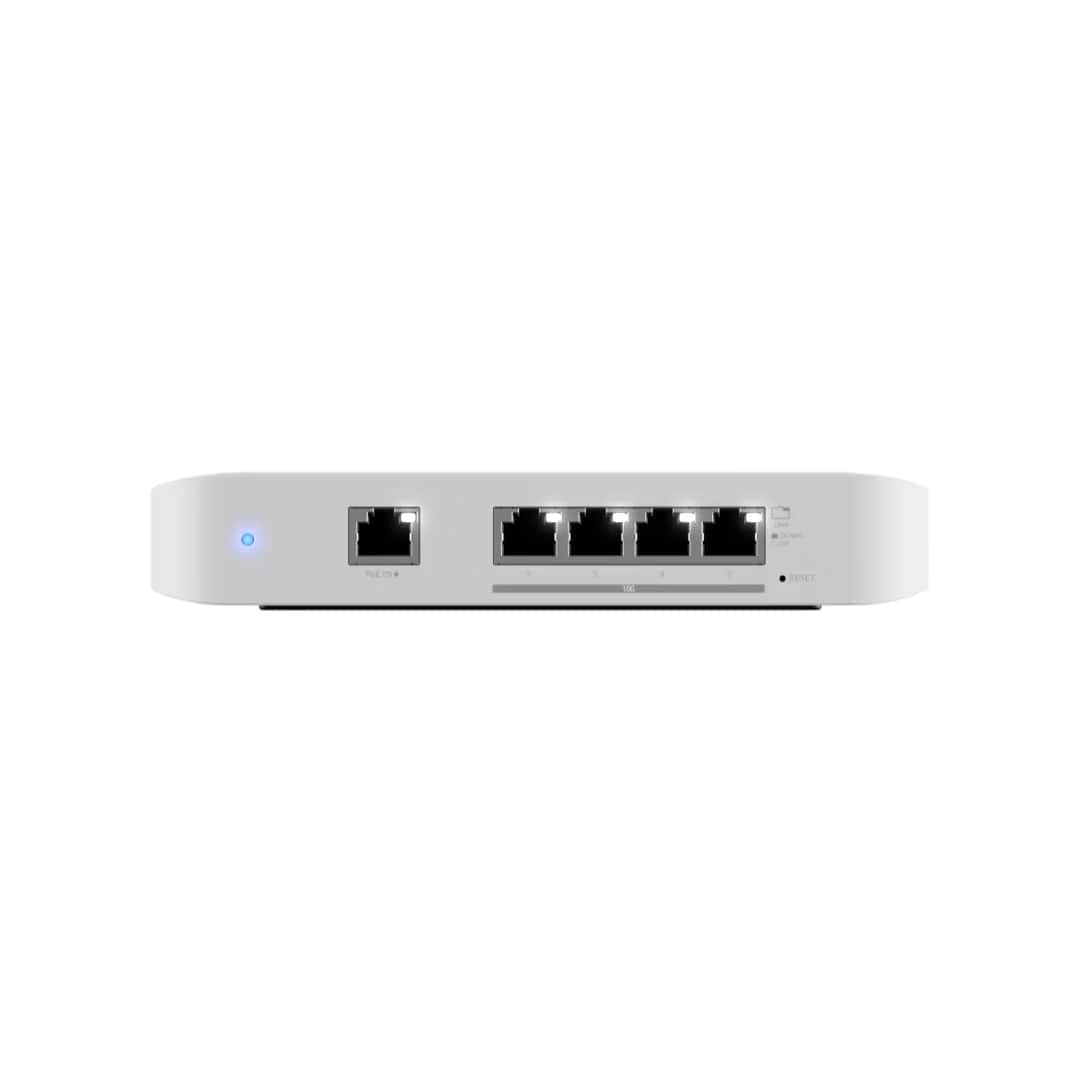

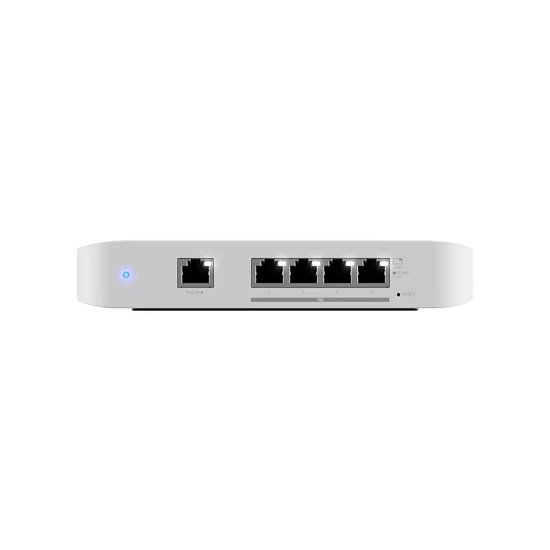

Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE, 802.3at PoE+ RJ45 input. The Switch Flex XG (USW Flex XG) is a fully managed, mult-gigabit, Layer 2 switch with (4) 10GbE RJ45 ports and (1) GbE PoE input. The USW Flex XG sports slim, compact housing and can be mounted on a desktop*. This switch can also be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app. Features: (1) GbE, 802.3at PoE+ RJ45 input (4) 10GbE RJ45 ports Compact, slim housing Can be powered with a 5V, 5A USB-C adapter** *Do not stack other hardware on the USW Flex XG. **Only single-unit packages include the 5V, 1A USB-C power adapter. Managed with the UniFi Network application: Version 6.1.67 and later Mechanical Dimensions 135 x 185 x 32 mm (5.31 x 7.28 x 1.27") Weight 1.2 kg (2.65 lb) Enclosure Material Polycarbonate Hardware Total Non-Blocking Throughput 41 Gbps Switching Capacity 82 Gbps Forwarding Rate 61.012 Mpps Max Power Consumption 25W Power Method (1) 802.3at PoE, 50-57VDC, 25W (1) USB Type-C, 5VDC, 5A Power Supply 802.3at PoE (Pins 1, 2+/3, 6- or 4, 5+/7, 8-) AC/DC Power Adapter, 5VDC, 5A, 1.5 m Cord (Included) Supported Voltage Range 90 to 264VAC (Adapter) Management Interface Ethernet In-Band Networking Interfaces (1) 10/100/1000 Mbps RJ45 Ethernet (4) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet Services SMB Layer 2 Gigabit Ethernet Switch ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV Button Factory Reset Operating Temperature -5 to 45° C (23 to 113° F) Operating Humidity 10 - 90% Noncondensing Certifications CE, FCC, IC LEDs System (1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted Ethernet White: Link or Activity
