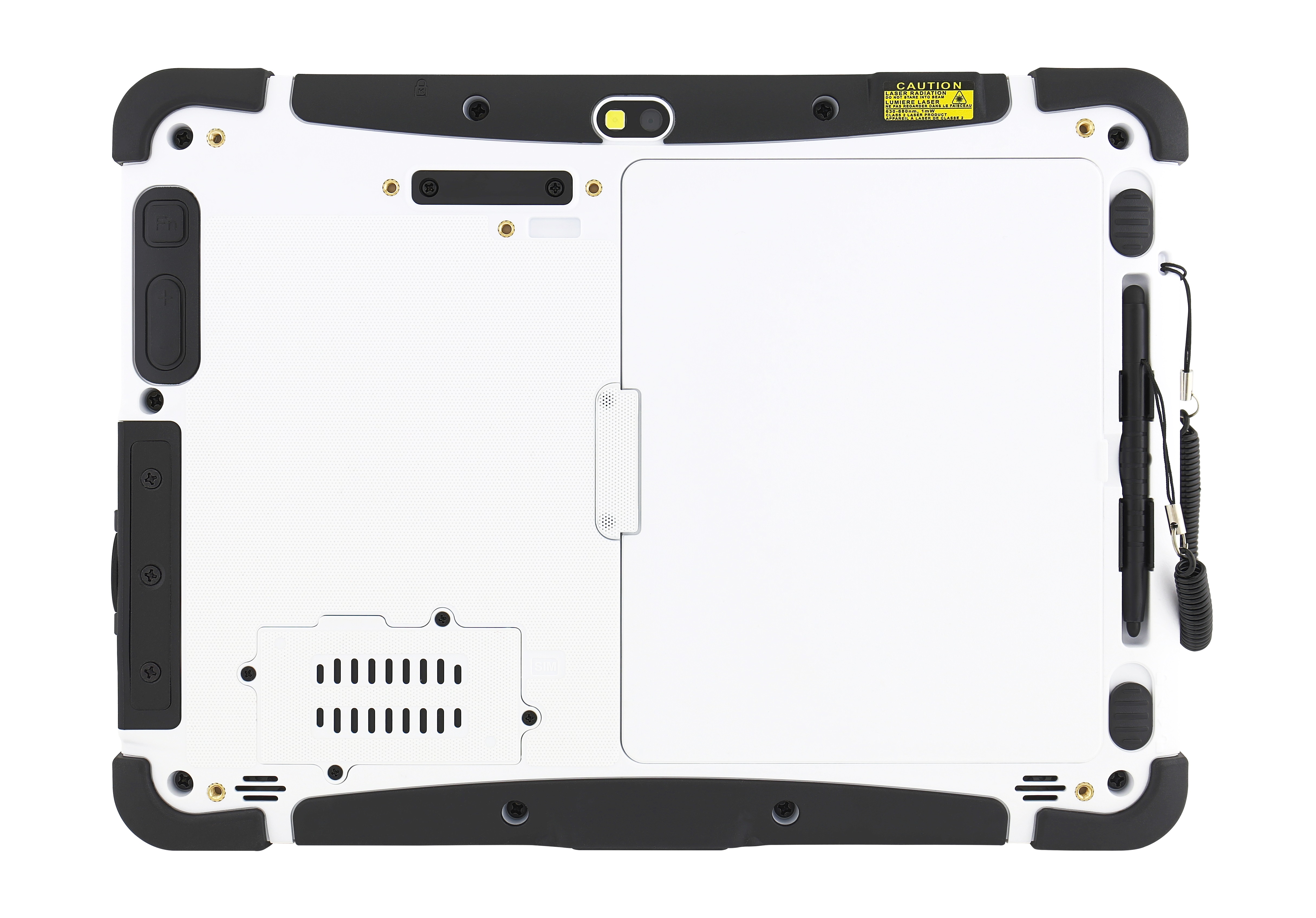

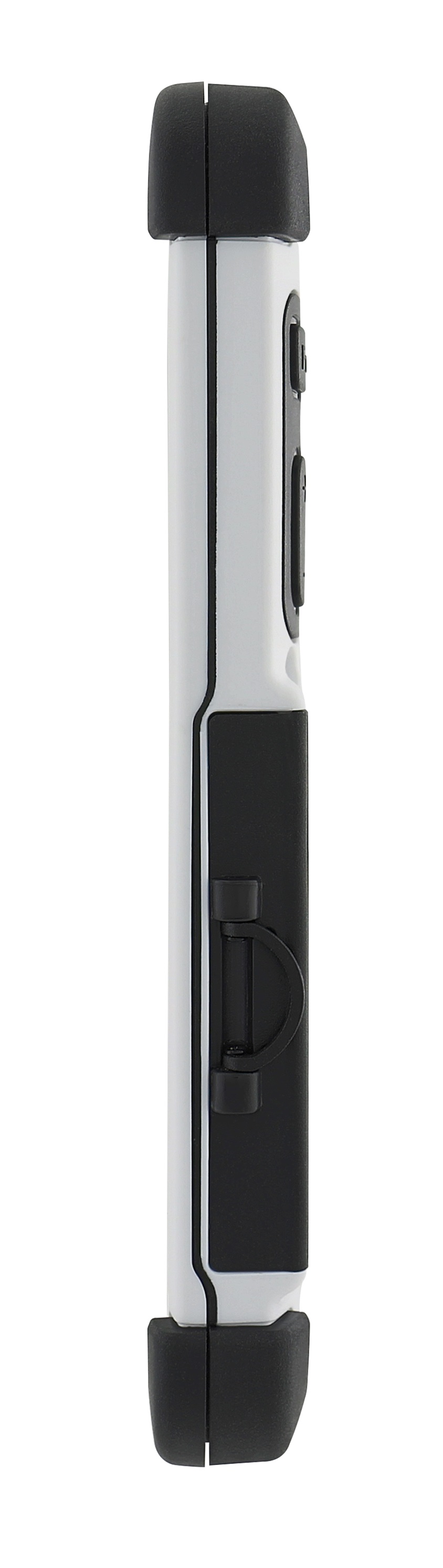

Winmate/M101P-ME/10,1"/1920x1200/4GB/128GB/W10/Bílá

Display Specifications Size 10.1-inch IPS display with LED Backlight Resolution 1920 x 1200 WUXGA Brightness 800 nit With direct optical bonding for sunlight readable Touch Multi-touch projected capacitive Contrast Ratio 800:1 Viewing Angle 85/85/85/85 Technology • Ant- reflective and anti-glare technology (Optional) • Ambient light sensor, e-compass, gyro, acceleration sensors • Automatic screen rotation • Intel HD Graphics (built-in CPU) video controller
System Specification Processor Intel Pentium N4200 Processor 1.10 GHz, up to 2.50 GHz with turbo boost technology System Memory 4GB SODIMM DDR3L-1600 (up to 8GB) 1 Storage 64GB solid state drive (SSD) Optional up to 512GB, up to 128GB additional storage with optional microSDXC card slot Operating System Windows 10 IoT Enterprise (64 bit)
Wireless Communication WLAN 802.11 a/b/g/n/ac Bluetooth Bluetooth 4.2 GNSS GPS, GLONASS, BeiDou Optional 4G/LTE

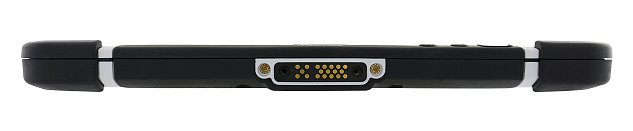

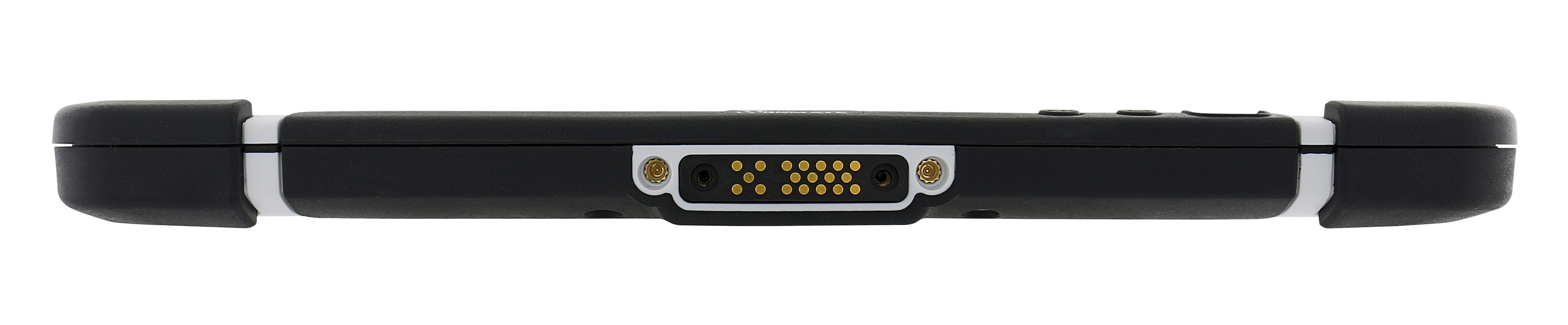

Interface Docking Connector 1 x 19-pin docking connector HDMI 1 x micro HDMI USB 1 x USB3.0 (Type A), 1 x USB3.0 (Type C) Power Input 1 x Power Jack Micro SD 1 x Micro SD Slot Audio Connector 1 x Audio Combo connector (Mic in or Line Out) Expansion Port 1 x Expansion Connector for USB 2.0 / Full RS232 (Optional)
Keyboard and Input Touch • 10-point multi touch, support Rain, Glove, Stylus Button • On-screen QWERTY keyboard Button 1 x power, 1 x Home, 2 x volume key, 2 x function key (Programmable function key configured by Hottab Utility) LED Indicators Power, Battery, HDD, RF
Audio Microphone Built-in dual Digital Mic with Noise Cancellation Speaker 2 x 1 watt speaker
Cameras Web Camera 2MP webcam Rear Camera 8MP rear camera with autofocus and LED light

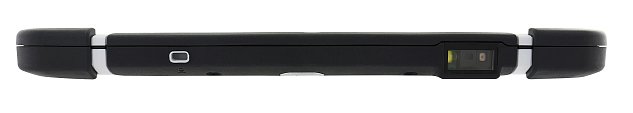

Data Capture Barcode Optional 1D/2D Barcode Reader HF RFID Optional HF RFID reader 13.56 MHz
Security Function Security • Password security for user and hard disk lock • Trusted Platform Module (TPM) 2.0 • Kensington Lock Mobile Device Mgmt. SOTI Mobicontrol compatible
Certificate • CE, FCC, IC • IEC 60601-1, IEC 60601-1-2, EN 60601-1, ANSI/AAMI ES 60601-1
Mechanical and Environment Dimension (W x L x H) 271.8 x 197.2 x 19 mm (10.7 x 7.76 x 0.75 inches) 4 Weight 1.2 kg (2.7 lbs) with standard battery, 1.4 kg (3.1 lbs) with optional high capacity battery Operating Temperature 0°C to 35°C Storage Temperature -30°C to 70°C (-22°F to 158°F) Humidity 10% to 90% RH, non-condensing IP Proof IP65 certified, Dustproof and waterproof Shock MIL-STD-810G Method 516.6 Procedure I Vibration MIL-STD-810G Method 514.6 Procedure I Drop MIL-STD-810G Method 516.6, 4 ft to concrete
Power Management Power Input 12-19V DC Battery 7.4V, typ. 5140 mAh Li-Polymer Battery (2S1P) 7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, optional) Battery Operating Time Std. Battery: 8 hours High Capacity Battery: 16 hours Adapter 100-240V, 50-60Hz / 19V DC
Product Specification Operating system: Windows 10 IoT Enterprise

Příslušenství (součást balení) • Adapter and Power Cord • Capacitive Stylus • Standard Battery

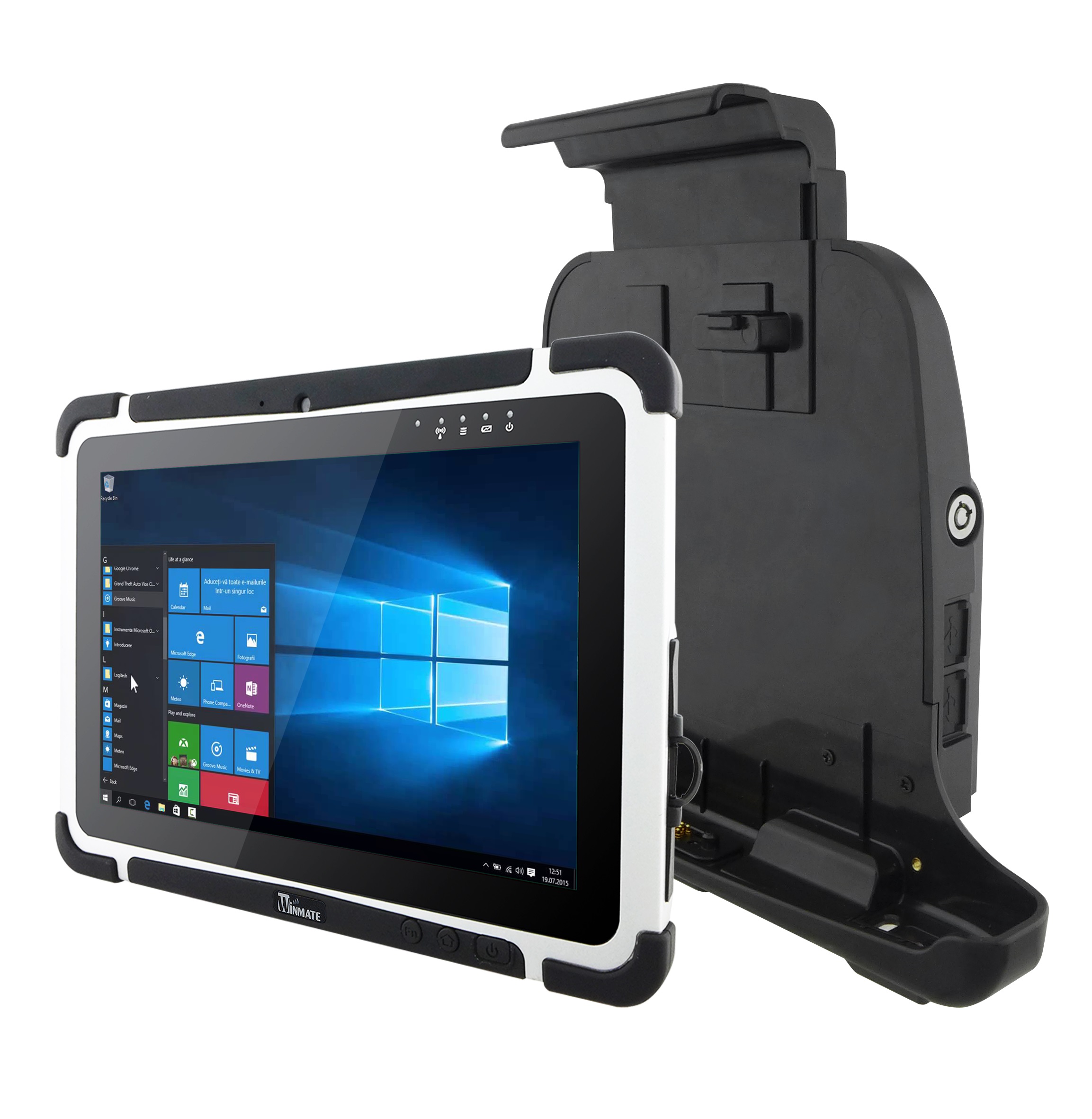

Volitelné příslušenství (lze dokoupit samostatně) • Desk Dock • Vehicle Dock (without VGA output) • Battery Charger • Smart Card Reader • High Capacity Battery • Hand Strap • UHF RFID Reader • VESA Mount Kit • Shoulder Strap • Carry Bag • Micro HDMI Cable • Vehicle Charger • USB-C to Ethernet Adapter • USB-C to RS232 Adapter • USB-C to USB-A Hub
Optional Healthcarely Certified Accessories Healthcare Grade Tablet Dock 98DT00A00012
