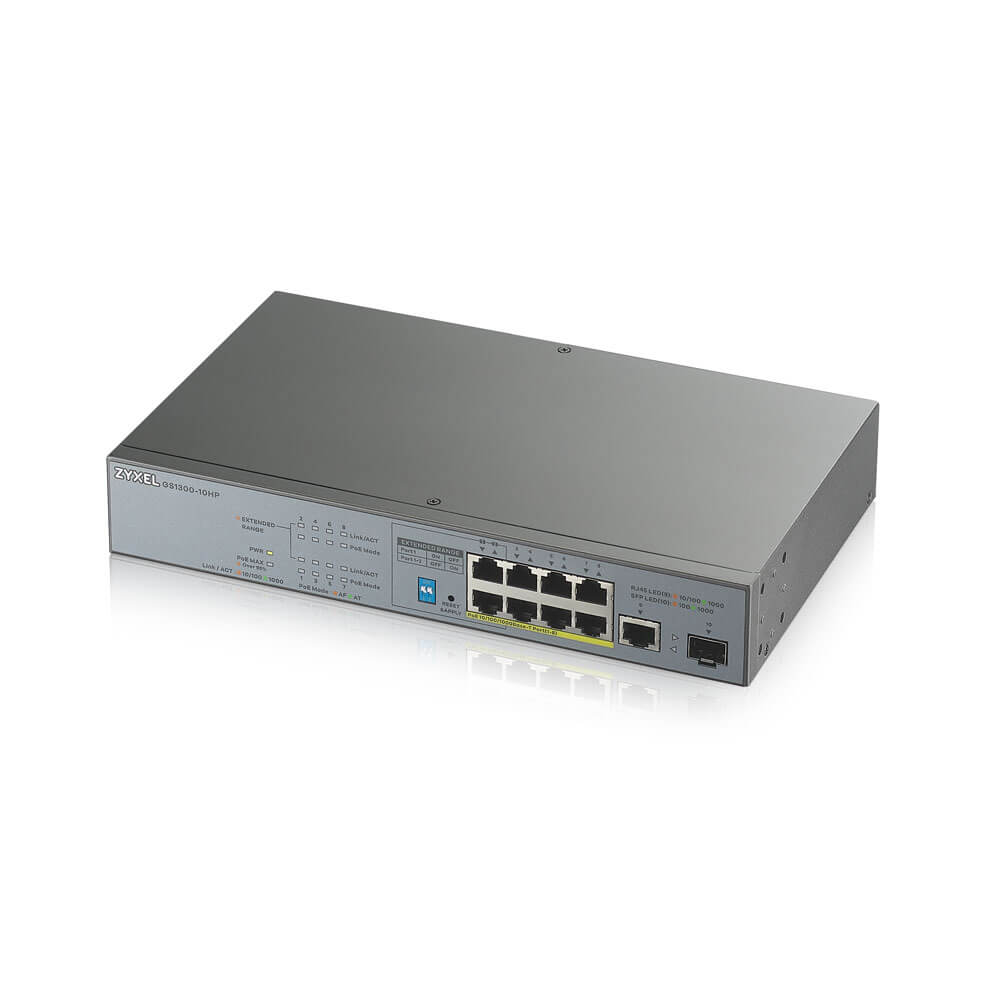

ZYXEL GS1300-10HP 10 Port unmanged CCTV PoE witch, 130W

Parametry - ZYXEL GS1300-10HP 10 Port unmanged CCTV PoE witch, 130W

GS1300-10HP, 10 Port unmanged CCTV PoE witch, long range, 130W Zyxel introduces the GS1300 Series switches specialized in surveillance deployments. With a brand-new titanium grey exterior purpose-built for surveillance, the Series includes 3 models with a range of large power budgets from 130 W to 250 W. The GS1300 Series comes with specialized hardware features such as an extended range mode for long range-applications along with PoE LEDs for real-time status inspection.
TECHNICKÁ SPECIFIKACE
Port Destiny: *Total port count: 10 *100/1000 Mbps: 9 *Gigabit SFP: 1 *Configurable extended range ports: 2
PoE: *PoE ports: 8 *Total PoE budget (watt): 130 *PoE 802.3at: Yes
Performance: *Switching capacity (Gbps): 20 *Forwarding rate (Mpps): 14.8 *Packet buffer (byte): 525 K *MAC address table: 8 K
Power: *Input: 100 - 240 V AC, 50/60 Hz *Max. power consumption (watt): 155.8
Item: *Dimensions (WxDxH)(mm): 267 x 162 x 44/ *Weight (kg): 1.65
Standard: *IEEE 802.3 10Base-T Ethernet *IEEE 802.3u 100Base-Tx Ethernet *IEEE 802.3ab 1000Base-T Ethernet *IEEE 802.3z 1000Base-X *IEEE 802.3x flow control *IEEE 802.3af PoE *IEEE 802.3at PoE plus *IEEE 802.3az EEE *IEEE 802.1p Class of Service (CoS) prioritization
Certifications EMC: *CE, FCC, C-Tick, Class A *BSMI CNS13438 Safety: *LVD EN62368-1 *BSMI CNS14336-1 RoHS compliant
Installation Features Supports lightning surge protection: *Ethernet port: 2 KV *Power input: 4 KV Supports ESD protection (Air/Contact): 8 KV/4 KV *Extended range of up to 250 meters* *Fixed link speed at 10 Mbps Limited to 802.af PDs and cameras - *Extended range excels long range installation but the actual performance may be effected by cabling quality or IP camera’s electrical design. We recommend users to test for IOP before physical deployment. Contact Zyxel for IP camera’s interoperability report.
