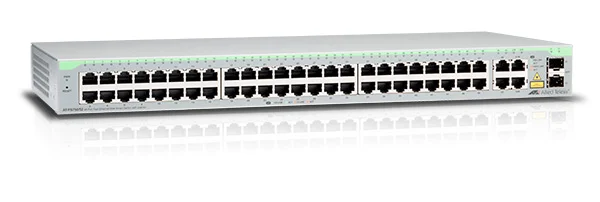

Allied Telesis AT-FS750/52 switch 48x 10/100

AT-FS750/52-50

48 Port Fast Ethernet WebSmart Switch with 4 uplink ports (2 x 10/100/1000T and 2 x SFP-10/100/1000T Combo ports)

Overview

These advanced Allied Telesis WebSmart switches integrate the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective, yet secure and reliable, solution for users to integrate management at the edge of their networks. With user-friendly web-based management, the FS750 Series is an ideal option for integrating simple management and security into a network solution.

Product Contents

• Switch unit
• Rack-mount brackets and screws
• Power cord
• Rubber feet

Technical Specs

Performance

• 14,880pps for 10Mbps Ethernet
• 148,800pps for 100Mbps Ethernet
• 1,488,000pps for 1000Mbps Ethernet
• MAC addresses: 8,000
• VLAN IDs available: 4,000
• Max VLANs: 256
• Packet buffer: 4.1 Mbit
• DRAM: 128MB
• Flash: 16MB

Interface Connections

• 10/100TX
• 10/100/1000T: RJ-45
• SFP: 100FX, 1000T, 1000SX or 1000LX

Environmental Compliance

• RoHS
• Eu-RoHS
• China RoHS
• WEEE

MTBF

• 263,000 hours
• Telcordia SR-332

Environmental Specifications

• Operating temperature 0°C to 40 °C
• Non-operating temperature -25°C to 70°C
• Operating humidity: 5% to 90% non-condensing
• Storage humidity: 5% to 95% non-condensing
