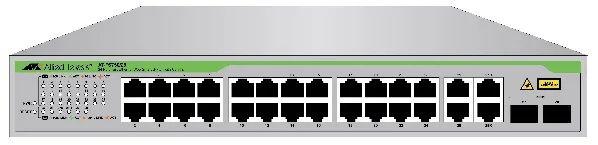

Allied Telesis AT-FS750/28 switch 24x FE+2x Gb+2x SFP

AT-FS750/28: 24-port 10/100TX + 2 10/100/1000T + 2 SFP/1000T Combo Ports

These advanced Allied Telesis WebSmart switches integrate the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective, yet secure and reliable, solution for users to integrate management at the edge of their networks. With user-friendly web-based management, the FS750 Series is an ideal option for integrating simple management and security into a network solution.

TECHNICAL SPECS

VLAN

• IEEE 802.1Q tagged
• Port-based
• Up to 256 groups

Quality of Service Classification

• IEEE 802.1p tagging
• Port-based priority
• Four priority queues per port

IP Multicast Support (IPv4)

• IGMP snooping (v1/v2)
• Static multicast group (up to 256)
• Spanning-Tree, IEEE 802.1d/w/s

IEEE 802.3ad Link Aggregation

IEEE 802.1x Port-based and MAC-based

• Network Access Control
• Local authentication server (MD5 only)
• Remote authentication through RADIUS
• Dynamic VLAN assignment

RADIUS Client

DHCP Client

DHCP Snooping

Statistics Charts in Web

Jumbo Frames - up to 10K

Others

• IEEE 802.3x flow control or HOL (†) blocking prevention († when flow control is off)
• Port mirroring
• Destination MAC filtering
