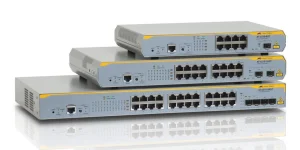

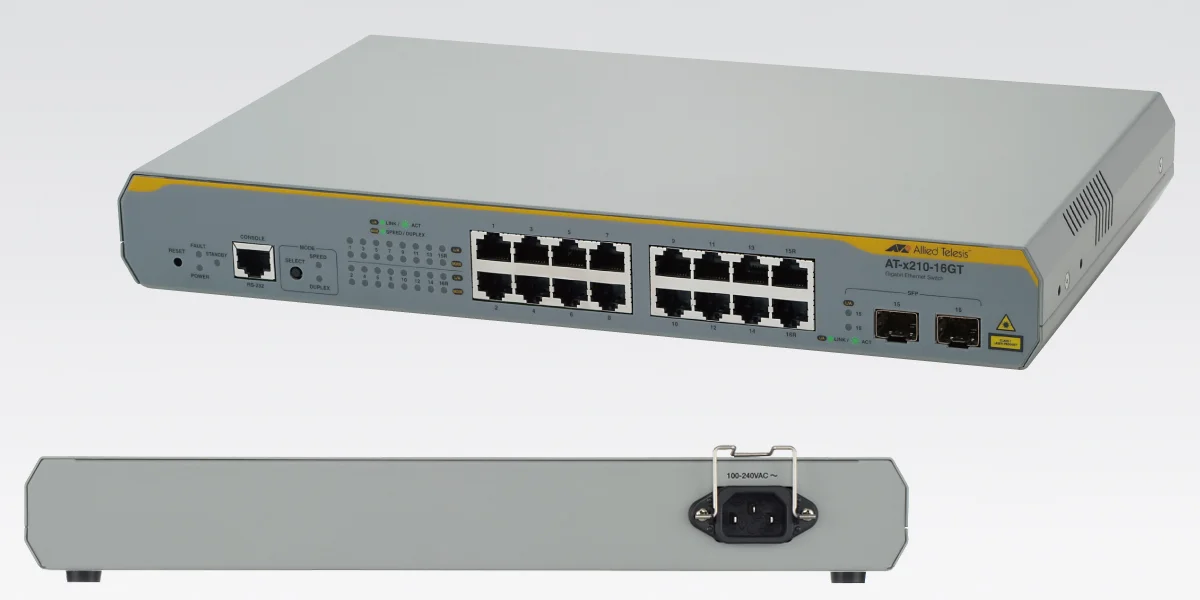

Allied Telesis AT-x210-16GT L2+ switch 16x Gb

• 210 mm

Mounting

• Desktop

Weight

• 2.0 kg

Performance

• Up to 8K MAC addresses

• 256 VLANs (4K VLAN IDs)

• 128MB DDR SDRAM

• 64MB flash memory

• Packet Buffer memory: 512KB

• Supports 9kB jumbo frames

• Wirespeed forwarding

Reliability

• Modular AlliedWare Plus operating system

• Full environmental monitoring of PSU internal temperature and internal voltages. SNMP traps alert network managers in case of any failure

Flexibility and Compatibility

• SFP ports will support any combination of 10/100/1000T, 100X, 100FX, 100BX, 1000X, 1000SX, 1000LX, 1000ZX or 1000ZX CWDM SFPs

ENVIRONMENTAL SPECIFICATIONS

Operating temperature range

• 0°C to 40°C

• 0°C to 35°C with AT-SPLX40 or AT-SPZX80 or AT-SPFX/2 or AT-SPFX/15

Storage temperature range:

• -25°C to 70°C

Operating relative humidity range

• 5% to 90% non-condensing

Storage relative humidity range

• 5% to 95% non-condensing

Operating altitude

• 3,048 meters maximum

Electrical Approvals and Compliances

• EMC: EN55022 class A, FCC class A, VCCI class A

• Immunity: EN55024, EN61000-3-levels 2 (Harmonics), and 3 (Flicker) – AC models only

Safety

• Standards: UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1

• Certification: UL, cUL, TUV
