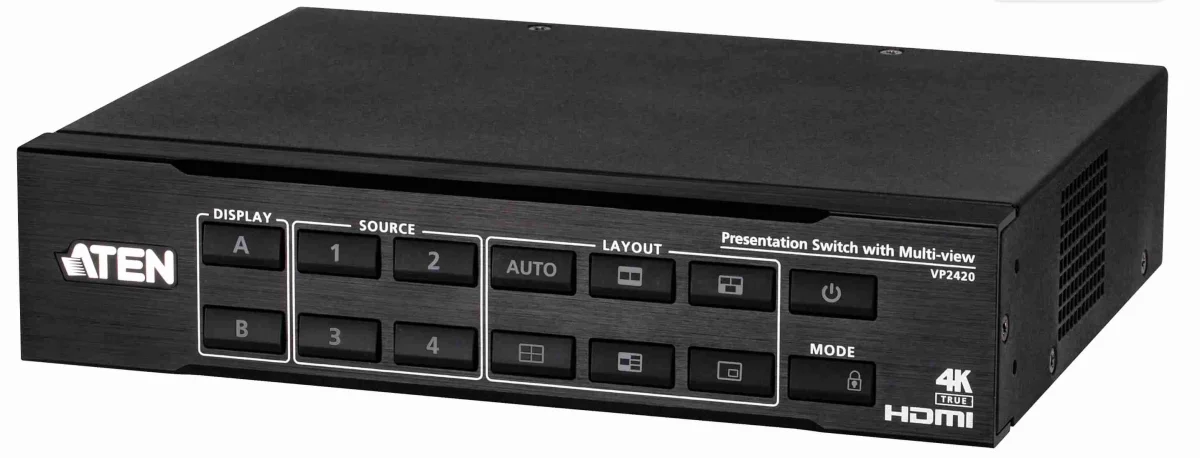

ATEN True 4K HDMI Presentation Switch s Multi View

The VP2420 is a presentation switch featuring 4 HDMI inputs and 2 HDMI outputs and is capable of displaying video content in full screen, PiP, PbP, triple/quad multi-view. With display mode (Matrix/Mirror) and layout mode (Auto/Manual) selectable and its capability of seamless switching* among multiple sources, the VP2420 delivers a dynamic viewing experience in any conference settings. In addition to the support for 4096 × 2160/3840 × 2160 @ 60Hz (4:4:4), a True 4K scaler is also built in the device to ensure crisp and detailed visual quality. Thanks to the audio embedding and de-embedding functionalities, users can adapt suitable audio/video combinations based on various environments.

Designed with flexibility in mind, the VP2420 offers versatile control options including front-panel pushbuttons, RS-232, IR, Telnet, Web GUI, and ATEN Video Presentation Control mobile app, allowing multimedia signals to be easily managed and incorporated into a collaborative event. The VP2420 can be cascaded up to 2 levels by connecting additional 4 VP2420 units to reach the maximum of 16 HDMI video sources being simultaneously displayed on a single screen. Rack-mounting is supported for flexible installation. With a set of features coming in a compact, all-metal casing, which enhances durability, the VP2420 serves as a perfect solution for smooth presentation flow and seamless transition in any education or commercial conferencing applications.

• Note: The function is only available on Display A and applicable to single port switching. Multiview layout switching is inapplicable.

Seamless AV Matrix Switching

Supports 4 × HDMI inputs and 2 × HDMI outputs

Supports Multi-view (full screen, PiP, PbP, triple/quad multi-view), Matrix/Mirror display modes, and Auto/Manual layout modes

Supports audio embedding and de-embedding

Seamless switching* at near-zero-second speed

Auto switching – automatically detects and switches to the latest active source connection

Visually Stunning True 4K Outputs

Supports up to 4096 × 2160/3840 × 2160 @ 60Hz (4:4:4) and 4K HDR

Built-in True 4K scaler – supports video upscaling to True 4K
