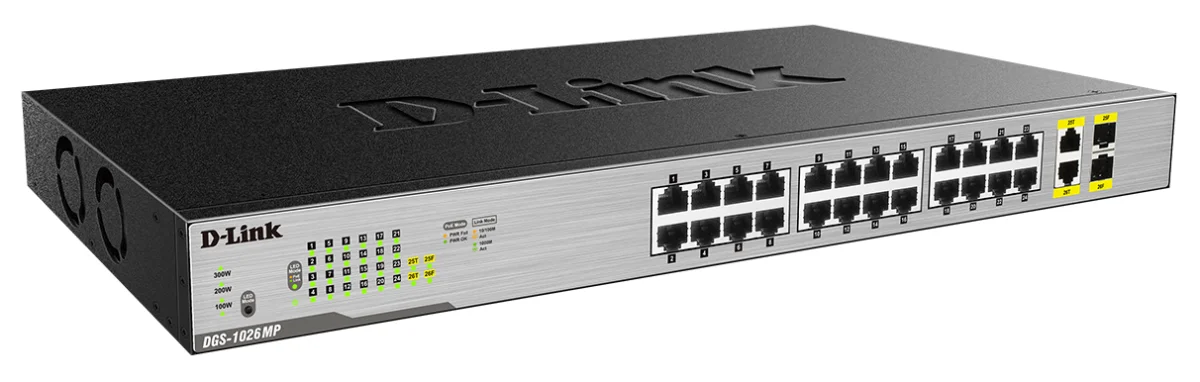

D-Link DGS-1026MP 24-portový switch Gigabit

26 Port Gigabit Max PoE Switch: DGS-1026MP PŘEHLED The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable… Číst více

Kód: 512026131 P/N: DGS-1026MP EAN: 790069426667
Počet LAN portů 26 Optika Ano SFP porty 2 PoE Out (výstup) PoE výkon 301-400 W
P/N: DGS-1026MP EAN: 790069426667
Obvykle 14 dní
10 590 Kč s DPH
8 752 Kč bez DPH
Doprava zdarma
•
Záruka 24 měsíců
•
14 dní na vrácení
Produkt není skladem! Dodací lhůta může být delší.
10 590 Kč s DPH
Kupujete víc kusů nebo máte lepší nabídku? nebo zavolejte 732 18 11 18

Popis

26 Port Gigabit Max PoE Switch: DGS-1026MP

PŘEHLED

The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones.

The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W.

The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems.

With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface.

To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required.

The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network.

TECHNICKÁ SPECIFIKACE

General

Number of Ports

  • 24 x 10/100/1000 Mbps ports
  • 2 x 10/100/1000BASE-T/SFP combo ports

Standards

  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3z
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy Efficient Ethernet (EEE)

Switching Capacity

  • 52 Gbps switching fabric

64 Byte Max. Forwarding Rate

  • 38.69 Mpps

Media Interface Exchange

  • Auto MDI/MDI-X

Transmission Method

  • Store-and-forward

MAC Address Table

  • 8K (8192) entries per device

Packet Buffer Memory

  • 512 KB per device

PoE Standards

  • IEEE 802.3at
  • IEEE 802.3af

PoE Ports

  • Ports 1 to 24

PoE Budget

  • 370 W
  • Up to 30 W per port

Diagnostic LEDs

Per Unit

  • Power
  • PoE Power Budget

Per Port

  • Activity/Link
  • Speed

Per PoE Port

  • Power Fail
  • Power OK

Physical

Fan

  • 2 x Smart fans*

Dimensions

  • 440 x 250.4 x 44 mm

Weight

  • 3.1 kg

Power Input

  • AC Input: 100 to 240 V AC, 50/60 Hz

Power Consumption

  • Maximum:
  • 444.1 W (PoE on)
  • 82.1 W (PoE off)
  • Standby:
  • 240 V: 18.25 W

Temperature

  • Operating: 0 to 50 °C
  • Storage: -40 to 70 °C

Humidity

  • Operating: 10% to 90% RH, non-condensing
  • Storage: 5% to 90% RH, non-condensing

MTBF

  • 205,975 hours

Heat Dissipation

  • 1,515 BTU/h

EMI

  • FCC Class A
  • CE
  • CCC
  • RoHS
  • VCCI
  • BSMI
  • RCM

Safety

  • UL/CSA 60950-1
  • EN 60950-1
  • IEC 60950-1

Optional SFP Transceivers

  • DEM-310GT - 1000BASE-LX, Single-mode, 10 km
  • DEM-311GT - 1000BASE-SX, Multi-mode, 550 m
  • DEM-312GT2 - 1000BASE-SX, Multi-mode, 2 km
  • DEM-314GT - 1000BASE-LHX, Single-mode, 50 km

Parametry

Hlavní vlastnosti

Management Unmanaged switch

Konektivita

Počet LAN portů 26
Optika
SFP porty 2

Napájení

PoE Out (výstup)
PoE Out standard 802.3at (max. 33,6W) - PoE+
PoE In standard Nepodporuje
PoE výkon 301-400 W
