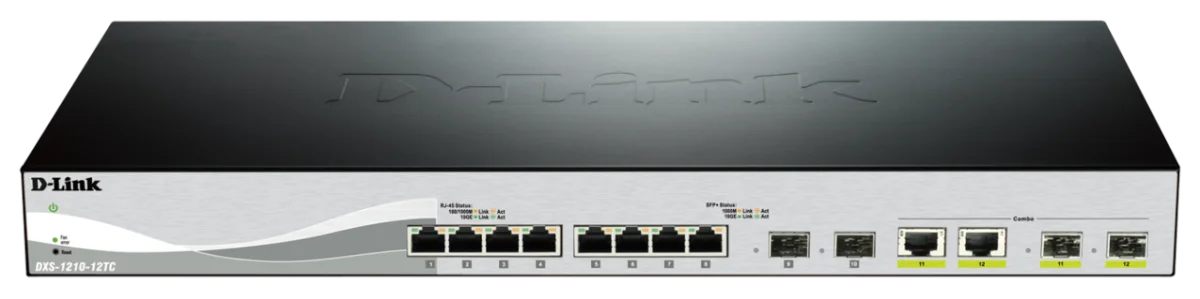

D-Link DXS-1210-12TC 8x10GbE 4xSFP+ switch

D-Link DXS-1210-12TC 8x10GbE 4xSFP+ switch

Informace k záruce:

Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě.

Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál.

OVERVIEW

Green Technology

· Power saving via the following features:

o Link Status detection

o LED Shut-Off

o Port Shut-Off

o System Hibernation

Security Features

· Access Control List secures network

· D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding

· Port Security supports 64 MACs per port

· ARP Spoofing Prevention

Intuitive Management

· D-Link Network Assistant Utility or Web-based GUI

· Built-in SNMP MIB for remote NMS (D-View 6.0)

· Compact CLI through Telnet

Advanced Features

· Auto Surveillance VLAN

· Loopback Detection automatically disables a port when a loop is detected

· Cable Diagnostics allows administrators to determine cable status

· SFP ports for flexibility

· Auto MDI/MDIX

SPECIFICATIONS

GENERAL

Interfaces

o 8-port 10GBASE-T

o 2-port SFP+

o 2-port 10GBASE-T/SFP+ combo design

Port Standard & Functions

· IEEE 802.3u 100BASE-TX Fast Ethernet

· IEEE 802.3ab 1000BASE-T Gigabit Ethernet

· IEEE 802.3az compliance

· IEEE 802.3an 10GBASE-T 10GbE over copper

· IEEE 802.3ae 10GbE over fiber

· IEEE 802.3z 1000BASE-X

· Auto MDI/MDIX support for 1000/10GBASE-T

Network Cables for 10GBASE-T

· CAT-6 (30 m max)

· CAT-6A

· CAT-7(100 m max)

Media Interface Exchange

· Auto MDI/MDIX adjustment for all twisted-pair ports

PERFORMANCE

Switching Capacity

· 240 Gbps

Maximum Packet Forwarding Rate

· 178.56 Mpps

Transmission Method

· Store-and-forward

MAC Address Table

· Up to 16 ,000 entries per device

PHYSICAL/ENVIRONMENTAL

AC Input

· 100 to 240 VAC

Maximum Power Consumption

· 90.81 watts

Standby Power Consumption

· 42.65 watts

Operating Temperature

· -5 to 50 ° C

Storage Temperature

· -40 to 70 ° C

Operating Humidity

· 0 % to 95 % non-condensing

Storage Humidity

· 0 % to 95 % non-condensing

Dimensions (L x W x H)

· 440 x 210 x 44 mm

Weight

· DXS-1210-10TS: 3.1 kg

· DXS-1210-12TC: 3.15 kg

Diagnostic LEDs

· Link/Activity/Speed (Per 10GBASE-T port)

· Link/Activity/Speed (Per 10G SFP+ port)

· Power/Fan (Per device)

Certifications

· CE

· FCC

· C-Ticket

· VCCI

· BSMI

· CCC

Safety

· cUL

· CB

· CE

· CCC

· BSMI

SOFTWARE

L2 Features

· MAC Address Table

o Up to 16K entries

· Static MAC Addresses

o 1K

· IGMP Snooping

o IGMP v1/v2/v3 Snooping

o Supports 384 IGMP groups

o Supports at least 128 static multicast addresses

o Per VLAN IGMP Snooping

o Support host-based fast leave

· MLD Snooping

o MLD v1/v2 Snooping

o Support 384 groups

o Support 128 static multicast addresses

o Support host-based fast leave

· LLDP

· LLDP-MED

· Spanning Tree Protocol

o 802.1D STP

o 802.1w RSTP

o 802.1s MSTP

· Flow Control

o 802.3x Flow Control

o HOL Blocking Prevention

· Port Mirroring

o One-to-One

o Many-to-One

o Supports Mirroring for Tx/Rx/Both

· 802.3ad Link Aggregation:

o Maximum of 8 groups/8 ports per group

· Jumbo Frame

o Up to 9KB

· Loopback Detection

· ERPS (Ethernet Ring Protection Switching)1

VLAN

· 802.1Q VLAN

· Port-based VLAN

· 4K VLAN Groups

· Configurable VID

o 1~4094

· Voice VLAN1

· Auto Surveillance VLAN1

· GVRP1

· Asymmetric VLAN

Quality of Service (QoS)

· CoS based on

o 802.1p Priority Queues

o DSCP

o ToS

o IPv6 Traffic Class

o TCP/UDP port

o VLAN ID

o MAC Address

o Ether Type

o IP Address

o Protocol Type

o IPv6 Flow Label

· 802.1p Priority Queue
