Chipset:AMD B550
Rozměrový formát:Micro ATX Form Factor; 24.4cm x 24.4cm
Podpora pro procesory:
- AMD Ryzen™ 5000 Series Processors
- AMD Ryzen™ 5000 G-Series Processors
- AMD Ryzen™ 4000 G-Series Processors
- AMD Ryzen™ 3000 G-Series Processors
- AMD Ryzen™ 3000 Series Processors
Patice procesoru:AM44
Paměť:
- 4x DDR4 DIMM sloty podporující až 128 GB (32GB každý slot) paměti
- Podpora pro DDR4 3200/2933/2667/2400/2133 MT/s moduly
- Dual channel memory architecture
- Podpora pro ECC Un-buffered DIMM 1Rx8/2Rx8 moduly
- Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 moduly
- Podpora pro XMP
Grafické porty:Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Zvuková karta:
- Realtek® ALC1220 CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
Ethernet:Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WLAN + Bluetooth:Realtek® Wi-Fi 7 RTL8922AE
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
Rozšiřující sloty:1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
- Supporting PCIe 3.0 x4 mode
RAID řadič:RAID 0, RAID 1, RAID 10
Úložný prostor:1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
- AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSDs4 x SATA 6Gb/s connectors, integrated in the Chipset
USB:
CPU:

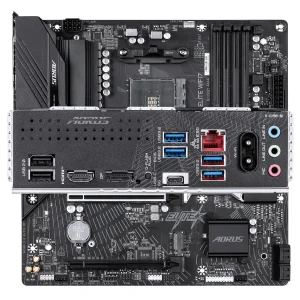

- 3 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 1 support
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
