GIGABYTE

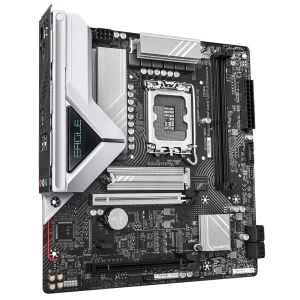

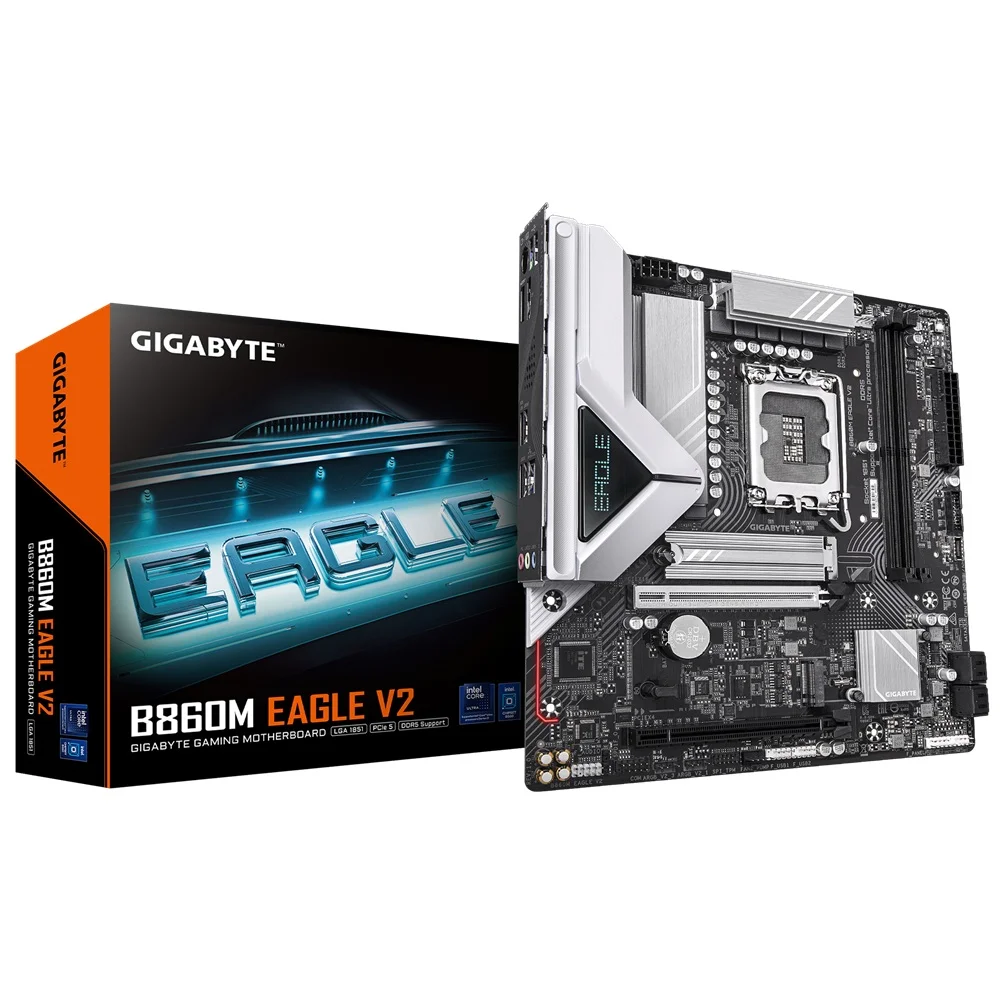

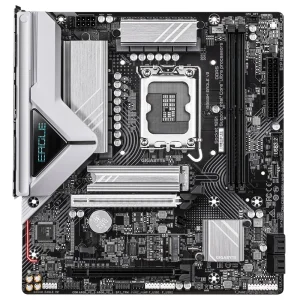

Gigabyte B860M EAGLE V2/LGA 1851/mATX

GIGABYTE B860M EAGLE V2 Chipset: Intel B860 Express Chipset Rozměrový formát: Micro ATX Form Factor; 24.4cm x 22.5cm Podpora pro procesory: Intel ® Core™ Ultra… Číst více

Kód: 2006321081 P/N: B860M EAGLE V2 EAN: 4719331869656
LGA 1851 mikro ATX B860
P/N: B860M EAGLE V2 EAN: 4719331869656
Skladem · Odešleme dnes
2 979 Kč s DPH
2 462 Kč bez DPH
Doprava zdarma od 5 000 Kč
•
Záruka 36 měsíců
2 979 Kč s DPH

GIGABYTE B860M EAGLE V2

Chipset:Intel B860 Express Chipset
Rozměrový formát:Micro ATX Form Factor; 24.4cm x 22.5cm
Podpora pro procesory:Intel ® Core™ Ultra
Patice procesoru:LGA1851

Paměť:

  • 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules

Grafické výstupy:

  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz - Support for HDMI 2.1 version and HDCP 2.3
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - Support for DisplayPort 2.1 version

Zvuková karta:

  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
Ethernet:Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Rozšiřující sloty:

  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Úložný prostor:

  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU)
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
  • 4 x SATA 6Gb/s connectors
RAID řadič:RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB:

  • 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • 3 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

  • 4 x USB 2.0/1.1 ports available through the internal USB headers

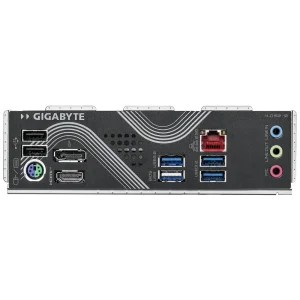

Porty na zadním panelu:

  • 1 x PS/2 keyboard/mouse port
  • 1 x HDMI por*
  • 1 x DisplayPort*
  • 3 x USB 3.2 Gen 1 ports
  • 3 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks

Interní porty:

Napájení

  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector

Související s ventilátorem a chlazením

  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 1 x system fan header
  • 1 x system fan/water cooling pump header

Související s úložištěm

  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors

USB

  • 1 x USB Type-C® header, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers

Ostatní

  • 3 x addressable RGB Gen2 LED strip headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  • 1 x serial port header
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper

BIOS:

  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Odkaz na stránku výrobce:https://www.gigabyte.com/Motherboard/B860M-EAGLE-V2/sp#sp

Procesor

Patice LGA 1851
Výrobce chipsetu Intel

Ostatní

Form factor desky mikro ATX
Model Gigabyte B860M EAGLE V2

Čipová sada

Chipset B860

Úložiště

M.2 sloty 2
M.2 PCIe 4.0 x4
M.2 PCIe 5.0 x4

Konektivita

HDMI
Rychlost Ethernet 2,5 Gbs
LAN porty
DisplayPort/miniDP
PCIe x16 sloty 2
PCI sloty

Grafika

PCIe 4.0 x16
PCIe 5.0 x16
