Differentiator

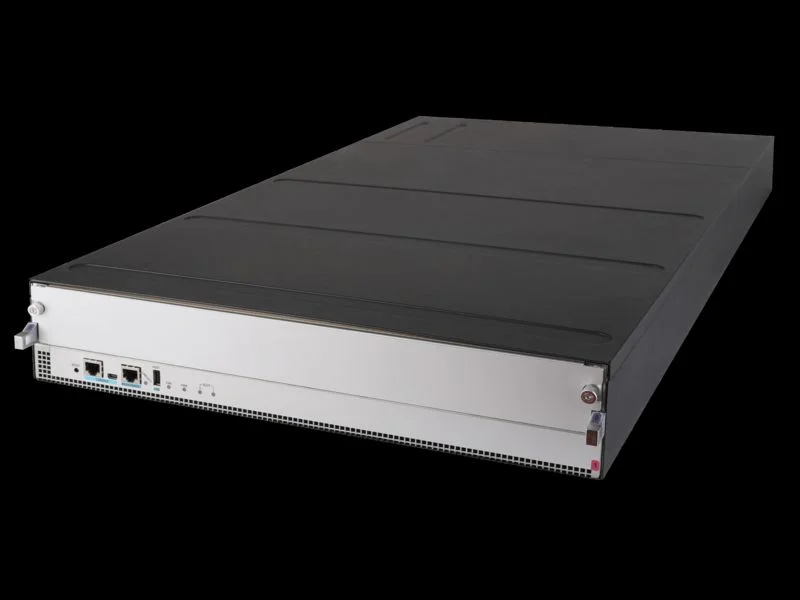

2-slot horizontal chassis, 2U, with 1 MPU slot and 1 I/O slot
Ports
Supports a maximum of 48 100GbE, 40GbE or 10GbE ports or a combination
Memory and processor
Quad Core MIPS64 @ 1.2GHz, 1 GB flash, 16 GB DDR3 SDRAM
Throughput
up to 5.8 Bpps
Switching capacity
9.6 Tbps
Stacking capabilities
IRF
2 switches
Management features
IMC - Intelligent Management Center
Command-line interface
Out-of-band management (serial RS-232C)
SNMP manager
Telnet
Terminal interface (serial RS-232C)
Modem interface
IEEE 802.3 Ethernet MIB
Ethernet interface MIB
Input voltage
100 - 240 VAC, rated
-48 to -60 VDC, rated (depending on power supply chosen)
Product dimensions (H x W x D)
3.4 x 17.32 x 33.7 in
Weight
77.2. lb
