Mikrotik RB952Ui-5ac2nD, 650MHz, hAP, 5xLAN

hAP ac lite PRESENTATION VIDEO OVERVIEW The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the… Číst více

Kód: 5170001833 P/N: RB952Ui-5ac2nD EAN: 4752224003195
300 Mbit/s 5 x 100 Mbps In/Out (vstup i výstup... ✓
P/N: RB952Ui-5ac2nD EAN: 4752224003195
Skladem · Odešleme dnes
1 179 Kč s DPH
974 Kč bez DPH
Doprava zdarma od 5 000 Kč
•
Záruka 24 měsíců
1 179 Kč s DPH

PRESENTATION VIDEO

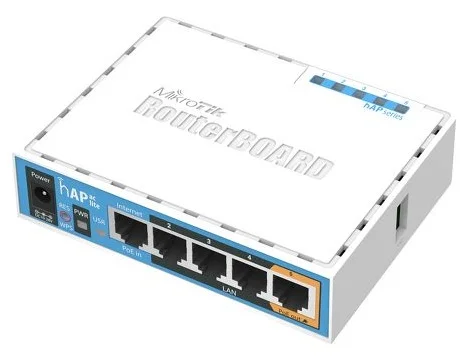

hAP ac lite

OVERVIEW

The hAP ac lite is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4GHz and 5GHz frequencies at the same time.

Unit is equipped with a 650MHz CPU, 64MB RAM, five 10/100Mbps Ethernet ports (PoE output on port #5), dual-chain 802.11b/g/n 2.4GHz wireless, single chain 802.11ac 5GHz wireless, USB port for 3G/4G modem and a RouterOS L4 license.

We have two versions available - RB952Ui-5ac2nD (International) and RB952Ui-5ac2nD-US (USA). RB952Ui-5ac2nD-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. RB952Ui-5ac2nD (International) supports 2412-2484MHz and 5150MHz - 5875MHz range.

TECHNICAL SPECS

Product code

  • RB952Ui-5ac2nD

CPU nominal frequency

  • 650 MHz

CPU core count

  • 1

Size of RAM

  • 64 MB

10/100 Ethernet ports

  • 5

Wireless chip model

  • QCA-9887-0-68BMQFN-TR-02-0

Wireless standards

  • 802.11a/n/ac

Secondary wireless chip model

  • QCA9531

Number of USB ports

  • 1

Power Jack

  • 1

PoE in

  • Yes

PoE out

  • Yes

Supported input voltage

  • 10 V - 30 V

Dimensions

  • 113 x 89 x 28mm

Operating System

  • RouterOS

Operating temperature range

  • -30 + 70 C °

License level

  • 4

Antenna gain DBI

  • 2

CPU

  • QCA9531

Max Power consumption

  • 8W

USB slot type

  • USB type A

Number of chains

  • 1

Storage type

  • FLASH

Storage size

  • 16 MB

Ostatní

Typ zařízení Router
Použití Vnitřní

Konektivita

Max rychlost Wi-Fi 300 Mbit/s
LAN porty 5
Max rychlost LAN 100 Mbps
Wi-Fi 4 (802.11n)
WiFi 1 (802.11b)
WiFi 3 (802.11g)
Wi-Fi 5 (802.11ac)
WiFi 2 (802.11a)
Wi-Fi 2,4 GHz
Wi-Fi 5 GHz
USB porty routeru USB 2.0

Napájení

PoE In/Out (vstup i výstup)
PoE Out standard Pasivní
PoE In standard Pasivní
PoE výkon (W) Nevztahuje se

Software

HTML popis Výrobce nemá info
