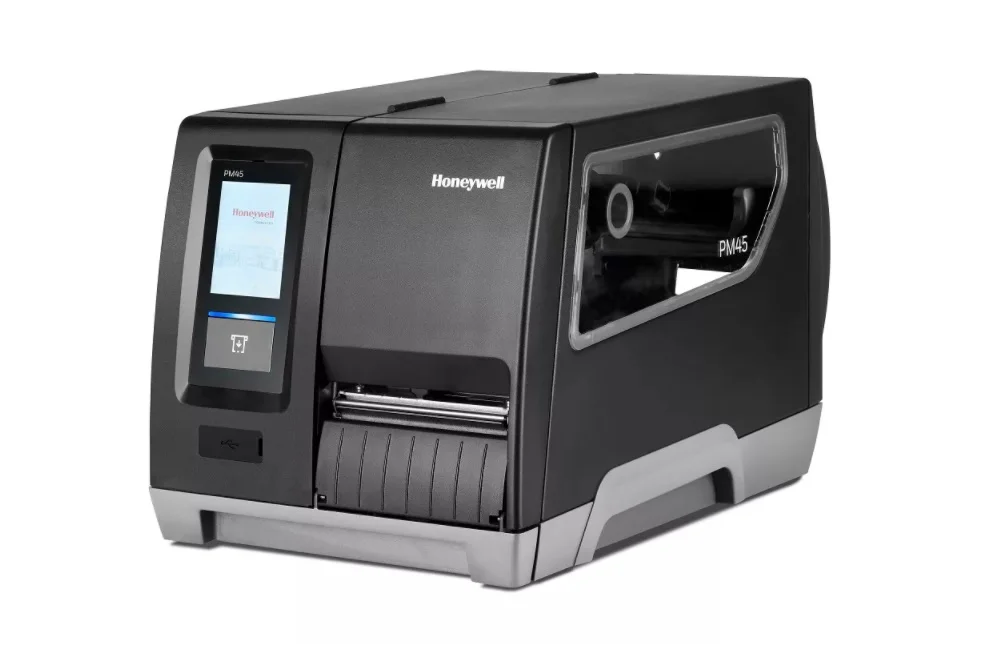

Honeywell PM45 FullTouch

Name: Honeywell PM45 FullTouch
Brand: HONEYWELL
SKU: IMPM4502
Price: 53290.00 CZK
Availability: InStock

Tiskárna na štítky a etikety určená pro vysoce náročné provozy s dotykový panel FullTouch a rozlišením 300 dpi. Systém LTS a vestavěný rewinder zajišťují nepřetržitý tisk velkých objemů s jednoduchou manipulací a efektivní organizací vytištěných materiálů. Číst více

Kód: IMPM4502 P/N: PM45A10000030300 EAN: PM45A10000030300

Typ Tiskárna Prostředí Průmyslové Rozlišení (DPI) 300 Tisk Termotransferový

P/N: PM45A10000030300 EAN: PM45A10000030300

Skladem

Odešleme zítra. Doručíme nejpozději v pátek 16. 10.

53 290 Kč s DPH

44 041 Kč bez DPH

Doprava zdarma

•

Záruka 12 měsíců

•

14 dní na vrácení

53 290 Kč s DPH

Kupujete víc kusů nebo máte lepší nabídku? nebo zavolejte 732 18 11 18

Popis

PHYSICAL CHARACTERISTICS

PM45:

L x H x W:483 mm x 295mm x 284 mm (19.0 in x 11.11.6 in x 11.2 in)

Weight:13.2 kg (29.1lbs)

PM45c:L x H x W: 432 mm x 181 mm x 253 mm (17.0 in x 7.1 in x 10.0 in)

Weight:12.6 kg (27.7 lbs)

PM45c with Mega Door

L x H x W:500 mm x 245 mm x 253 mm (19.7 in x 9.6 in x 10.0 in)

Weight:12.8 kg (28.0 lbs)

PM45/45C PRINT SPECIFICATIONS

Max.Width at 203 dpi:108 mm (4.25 in)

Max.Width at 300 dpi:105.7 mm (4.17 in)

Max.Width at 406 dpi:104 (4.09 in)

Max.Width at 600 dpi:105.6 mm (4.16 in)

Max.length at 203 dpi:4.8 m (189 in)

Max.length at 300 dpi:2.2m (85in)

Max.length at 406 dpi:1.2 m (47.2 in)

Max.length at 600 dpi:0.55m (22in)

WIRELESS CONNECTIVITY

WLAN:IEEE 802.11 a/b/g/n/ac; Wi-Fi certified, 1x1 SISO

Additional WLAN Features:802.11d/e/h/ i/k/r

Security:OPEN, WEP, WPA/WPA2 (Personal and Enterprise),

Supported EAP:TLS, PEAP, TTLS, PWD, LEAP, FAST

Bluetooth:V5.0 Bluetooth and BLE Supported

WWAN:WWAN Radio

CAT4 LTE Modem

MIMO - Main/Rx-diversity

LTE FDD:B1/B2/B3/B4/B5/B7/B8/B12/ B13/ B18/B19/B20/B25/B26/B28

LTE TDD:B38/B39/B40/B41 UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8

Slot:Micro Sim Card slot x 1

PRINT SPEED

At 203 dpi:50-350 mm/s (2-14ips)

At 300 dpi:50-300 mm/s (2-12ips)

At 406 dpi:50-250 mm/s (2-10ips)

At 600 dpi:50-150 mm/s (2-6ips)

PRINT RESOLUTION

At 203 dpi:8 dots/mm

At 300 dpi:11.8 dots/mm

At 406 dpi:16 dots/mm

At 600 dpi:23.6 dots/mm

PM 45/45C MEDIA SPECIFICATION

Type:Labels and Tags and Linered media

Max./Min.Width:114/19 mm (4.5/0.75 in)

Configuration:Roll-fed or fan-fold

Media Sensing:Gap, Notch, Black mark, Continous, Media low, Media end

Other sensing:Label Taken sensing, Ribbon Low/End sensing, Head lift sensing

Label Roll Max.Diameter:152 mm (6 in) for PM45c long door models; 213 mm (8.38 in) for all other models of PM45/PM45c

Label Roll Core ID:38-76 mm (1.5-3 in)

RIBBON SPECIFICATION

Type:Wax, mid-range and resin

INTERFACES

Standard:

Ethernet 10/100/1000 Mbps
USB 2.0 Host (x2 PM45, x1 PM45C)
USB 2.0 Device RS-232, up to 115.2 KB/s

Optional:

Parallel Interface (IEEE 1284)
Industrial interface - eight digital in/out, four analog relays, one RS232/422/485 port
Applicator Interface - Ext Error 8-pin miniDIN, Z-style standard DB15 port, S-style standard 14-pin Centronics, Ext Power 6-pin mini-DIN
RFID - Supports EPC Class 1 Gen2, 18000-6C. Radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular region.

Supported Network Protocols:

SOFTWARE

Printer Command Languages:Fingerprint (FP) Direct Protocol (DP) Intermec Printer Language (IPL)3 ZSim2 (ZPL-II), DPL, XML-enabled for SAP® AII and Oracle® WMS, PDF, C#

Applications/Drivers:InterDriver Windows® printer driver, CUPS driver for Linux, Honeywell Device Types for SAP, Honeywell label design and print package

Smart Printing Languages:C# for Printers: Honeywell Smart Printing Developer Resource Kit; write apps with .NET- compatible development environments.

Configuration and Device Management Support (optional):OpIntel - PrintSet 5 for printer configuration; sophisticated web interface for configuration, upgrades and 1:1 management; Print Set MC (Android™ and Apple® iOS) for printer configuration via Bluetooth LE only

BARCODES/FONTS/GRAPHICS

Barcode Symbologies:All major 1D and 2D symbologies are supported

Standards Supported:UPC/EAN Shipping Container, UCC/EAN 128, Serial Shipping Container, MH10.8 Shipping Label, AIAG (shipping parts label), OGMARS, POSTNET, HIBCC, ISBT 128, GM1724, UPS Shipping Label, Global Transport Label

FONTS

Monotype font engine

Non-Latin fonts available through WTLE

GRAPHICS

Supports PCX, PNG, GIFand BMP file formats.

Other formats supported with Label Generation Tools.

MEMORY

Standard:512 MB Flash memory, 256 MB SDRAM, Multi-GB USB memory device (FAT16/FAT22)

User Partitioning:256MB

USER INTERFACE

Full Touch UI, Icon UI

USER INTERFACE LANGUAGES

On Full Touch LCD and Web Interface:English, Russian, German, French, Portuguese, Spanish, Italian, Korean, Thai, Japanese, Simplified and Traditional Chinese

POWER SUPPLY

AC Voltage:100 to 240V AC, 50 to 60 Hz

Power Consumption:Standby 9.6W; Peak 270W (24V), Peak 145W (33V)

OPERATING ENVIRONMENT

Ambient Operating Temperature:+5°C to +40°C (+41°F to +104°F)

Storage Temperature:-20°C to +70°C (-4°F to +152°F)

Operating Humidity:20 to 85% non-condensing

Storage Humidity:5 to 90% non-condensing

REGULATORY APPROVALS

RoHS Compliant, CE (EN55032 Class B*), FCC Class B*, Energy Star 3.0 Qualified For more countries compliant, please contact your local sales office.

Parametry

Design

Účel použití Průmyslové

Tisk

Rozlišení DPI 300

Technologie tisku Termotransferový

Ostatní

Typ Tiskárna
