HONEYWELL

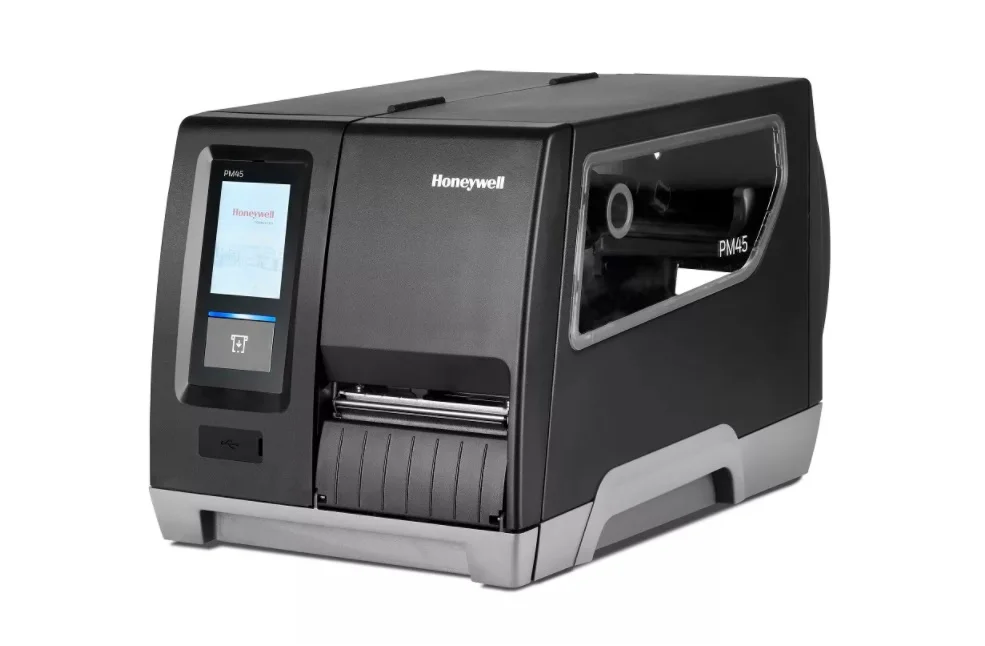

Honeywell PM45
Průmyslová tiskárna na štítky a etikety s rozlišením 600 dpi, určená pro profesionální a logistické aplikace. Zařízení je vybaveno dotykovým displejem FullTouch, systémem chlazení LTS a možností připojení rewinder modulu pro automatické navinutí vytisknutého materiálu. Číst více
Typ
Tiskárna
Prostředí
Průmyslové
Rozlišení (DPI)
600
Tisk
Termotransferový
Poslední 1 kus
Odešleme zítra. Doručíme nejpozději v pátek 16. 10.
72 990 Kč
s DPH
60 322 Kč
bez DPH
Doprava zdarma
•
Záruka 12 měsíců
•
14 dní na vrácení
72 990 Kč
s DPH
Kupujete víc kusů nebo máte lepší nabídku?
nebo zavolejte 732 18 11 18
Popis
Průmyslová tiskárna na štítky a etikety s rozlišením 600 dpi, určená pro profesionální a logistické aplikace. Zařízení je vybaveno dotykovým displejem FullTouch, systémem chlazení LTS a možností připojení rewinder modulu pro automatické navinutí vytisknutého materiálu.
PHYSICAL CHARACTERISTICS
PM45:
L x H x W:483 mm x 295mm x 284 mm (19.0 in x 11.11.6 in x 11.2 in)
Weight:13.2 kg (29.1lbs)
PM45c:L x H x W: 432 mm x 181 mm x 253 mm (17.0 in x 7.1 in x 10.0 in)
Weight:12.6 kg (27.7 lbs)
PM45c with Mega Door
L x H x W:500 mm x 245 mm x 253 mm (19.7 in x 9.6 in x 10.0 in)
Weight:12.8 kg (28.0 lbs)
PM45/45C PRINT SPECIFICATIONS
Max.Width at 203 dpi:108 mm (4.25 in)
Max.Width at 300 dpi:105.7 mm (4.17 in)
Max.Width at 406 dpi:104 (4.09 in)
Max.Width at 600 dpi:105.6 mm (4.16 in)
Max.length at 203 dpi:4.8 m (189 in)
Max.length at 300 dpi:2.2m (85in)
Max.length at 406 dpi:1.2 m (47.2 in)
Max.length at 600 dpi:0.55m (22in)
WIRELESS CONNECTIVITY
WLAN:IEEE 802.11 a/b/g/n/ac; Wi-Fi certified, 1x1 SISO
Additional WLAN Features:802.11d/e/h/ i/k/r
Security:OPEN, WEP, WPA/WPA2 (Personal and Enterprise),
Supported EAP:TLS, PEAP, TTLS, PWD, LEAP, FAST
Bluetooth:V5.0 Bluetooth and BLE Supported
WWAN:WWAN Radio
CAT4 LTE Modem
MIMO - Main/Rx-diversity
LTE FDD:B1/B2/B3/B4/B5/B7/B8/B12/ B13/ B18/B19/B20/B25/B26/B28
LTE TDD:B38/B39/B40/B41 UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8
Slot:Micro Sim Card slot x 1
PRINT SPEED
At 203 dpi:50-350 mm/s (2-14ips)
At 300 dpi:50-300 mm/s (2-12ips)
At 406 dpi:50-250 mm/s (2-10ips)
At 600 dpi:50-150 mm/s (2-6ips)
PRINT RESOLUTION
At 203 dpi:8 dots/mm
At 300 dpi:11.8 dots/mm
At 406 dpi:16 dots/mm
At 600 dpi:23.6 dots/mm
PM 45/45C MEDIA SPECIFICATION
Type:Labels and Tags and Linered media
Max./Min.Width:114/19 mm (4.5/0.75 in)
Configuration:Roll-fed or fan-fold
Media Sensing:Gap, Notch, Black mark, Continous, Media low, Media end
Other sensing:Label Taken sensing, Ribbon Low/End sensing, Head lift sensing
Label Roll Max.Diameter:152 mm (6 in) for PM45c long door models; 213 mm (8.38 in) for all other models of PM45/PM45c
Label Roll Core ID:38-76 mm (1.5-3 in)
RIBBON SPECIFICATION
Type:Wax, mid-range and resin
INTERFACES
Standard:
- Ethernet 10/100/1000 Mbps
- USB 2.0 Host (x2 PM45, x1 PM45C)
- USB 2.0 Device RS-232, up to 115.2 KB/s
Optional:
- Parallel Interface (IEEE 1284)
- Industrial interface - eight digital in/out, four analog relays, one RS232/422/485 port
- Applicator Interface - Ext Error 8-pin miniDIN, Z-style standard DB15 port, S-style standard 14-pin Centronics, Ext Power 6-pin mini-DIN
- RFID - Supports EPC Class 1 Gen2, 18000-6C. Radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular region.
Supported Network Protocols:
SOFTWARE
Printer Command Languages:Fingerprint (FP) Direct Protocol (DP) Intermec Printer Language (IPL)3 ZSim2 (ZPL-II), DPL, XML-enabled for SAP® AII and Oracle® WMS, PDF, C#
Applications/Drivers:InterDriver Windows® printer driver, CUPS driver for Linux, Honeywell Device Types for SAP, Honeywell label design and print package
Smart Printing Languages:C# for Printers: Honeywell Smart Printing Developer Resource Kit; write apps with .NET- compatible development environments.
Configuration and Device Management Support (optional):OpIntel - PrintSet 5 for printer configuration; sophisticated web interface for configuration, upgrades and 1:1 management; Print Set MC (Android™ and Apple® iOS) for printer configuration via Bluetooth LE only
BARCODES/FONTS/GRAPHICS
Barcode Symbologies:All major 1D and 2D symbologies are supported
Standards Supported:UPC/EAN Shipping Container, UCC/EAN 128, Serial Shipping Container, MH10.8 Shipping Label, AIAG (shipping parts label), OGMARS, POSTNET, HIBCC, ISBT 128, GM1724, UPS Shipping Label, Global Transport Label
FONTS
Monotype font engine
Non-Latin fonts available through WTLE
GRAPHICS
Supports PCX, PNG, GIFand BMP file formats.
Other formats supported with Label Generation Tools.
MEMORY
Standard:512 MB Flash memory, 256 MB SDRAM, Multi-GB USB memory device (FAT16/FAT22)
User Partitioning:256MB
USER INTERFACE
Full Touch UI, Icon UI
USER INTERFACE LANGUAGES
On Full Touch LCD and Web Interface:English, Russian, German, French, Portuguese, Spanish, Italian, Korean, Thai, Japanese, Simplified and Traditional Chinese
POWER SUPPLY
AC Voltage:100 to 240V AC, 50 to 60 Hz
Power Consumption:Standby 9.6W; Peak 270W (24V), Peak 145W (33V)
OPERATING ENVIRONMENT
Ambient Operating Temperature:+5°C to +40°C (+41°F to +104°F)
Storage Temperature:-20°C to +70°C (-4°F to +152°F)
Operating Humidity:20 to 85% non-condensing
Storage Humidity:5 to 90% non-condensing
REGULATORY APPROVALS
RoHS Compliant, CE (EN55032 Class B*), FCC Class B*, Energy Star 3.0 Qualified For more countries compliant, please contact your local sales office.
Parametry
Design
Účel použití
Průmyslové
Tisk
Rozlišení DPI
600
Technologie tisku
Termotransferový
Ostatní
Typ
Tiskárna
Dokumenty
PDF dokumenty
