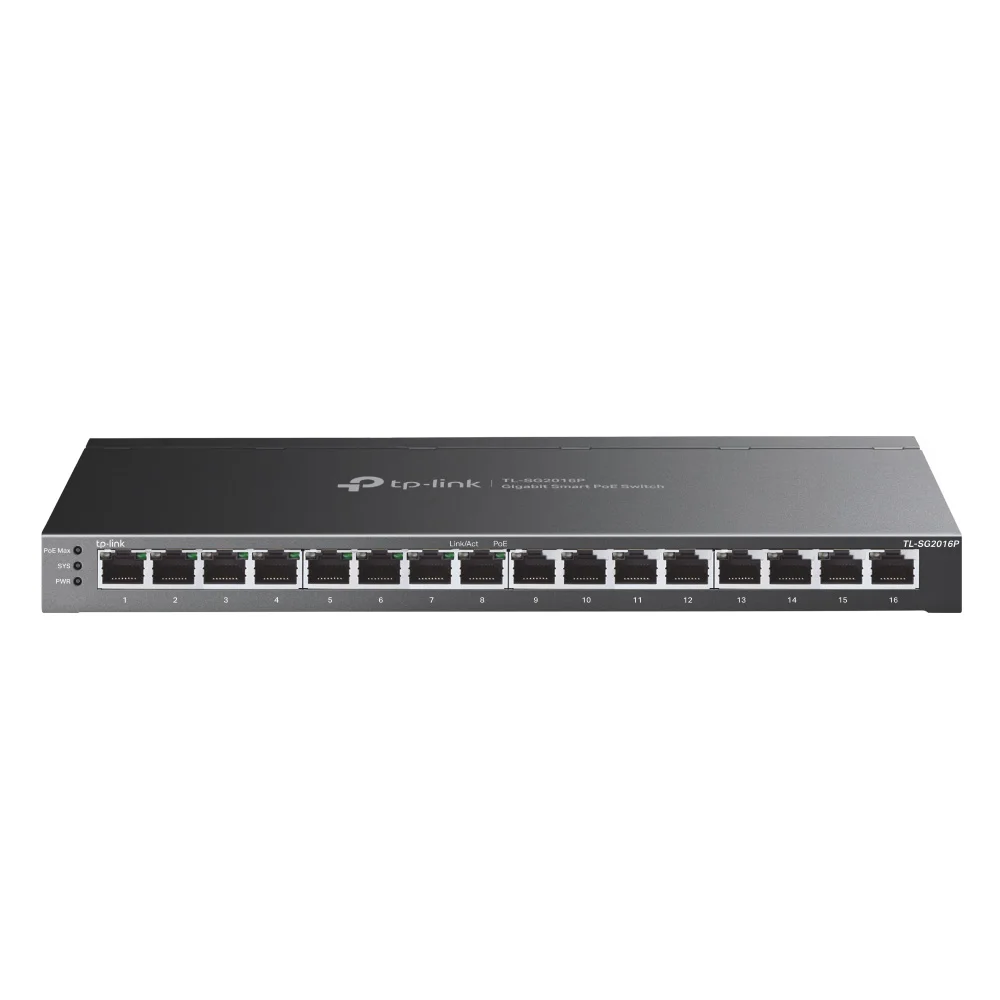

TP-LINK SG2016P switch 16x Gigabit, 8x PoE

HARDWARE FEATURES

Standards and Protocols:

• IEEE 802.3i
• IEEE 802.3ab
• IEEE 802.3ad
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x
• IEEE 802.1d
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1q
• IEEE 802.1p
• IEEE 802.1x

Interface:

• 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)
• Auto-Negotiation/Auto MDI/MDIX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity

• Fanless

Power Supply

• External Power Adapter (Output: 53.5 VDC/ 2.43 A)

PoE Ports (RJ45)

• Standard: 802.3af/at compliant
• PoE Ports: 8 Ports
• Power Supply: 120 W*

Dimensions ( W x D x H )

• 11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)

Max Power Consumption

• 146.5 W (110 V/60 Hz) (with 120 W PD connected)

Max Heat Dissipation

• 499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected)

PERFORMANCE

Bandwidth/Backplane:

• 16 Gbps

MAC Address Table:

• 8k

Packet Buffer Memory:

• 4.1 Mbit

Jumbo Frame:

• 9 KB

SOFTWARE FEATURES

Quality of Service:

• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode

- SP (Strict Priority)

- WRR (Weighted Round Robin)

• Queue Weight Config
• Bandwidth Control

- Port/Flow-based Rating Limit

• Smoother Performance
• Storm Control

- Multiple Control Modes(kbps/ratio)

- Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features:

• DHCP Relay

- DHCP VLAN Relay

• DHCP L2 Relay
• Link Aggregation

- Static link aggregation

- 802.3ad LACP

- Up to 8 aggregation groups and up to 8 ports

per group

• Spanning Tree Protocol

- 802.1D STP

- 802.1w RSTP

- 802.1s MSTP

- STP Security: TC Protect, BPDU Filter/Protect,

Root Protect

• Loopback Detection
• Flow Control

- 802.3x Flow Control

• Mirroring

- Port Mirroring

- CPU Mirroring

- One-to-One

- Many-to-One

- Flow-Based

- Ingress/Egress/Both

• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED

L2 Multicast:

• 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

- IGMP Snooping Querier

- Static Group Config

• Multicast VLAN Registration (MVR)
• Multicast Filtering
• MLD Snooping

- MLD v1/v2 Snooping

- Fast Leave

- MLD Snooping Querier

- Static Group Config

• Limited IP Multicast (256 profiles and 16 entries per profile)

IPv6 Support:

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications

- DHCPv6 Client

- Ping6

- Tracert6

- Telnet (v6)

- IPv6 SNMP

- IPv6 SSH

- IPv6 SSL

- IPv6 TFTP

VLAN:

• VLAN Group

- Max. 4K VLAN Groups

• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN

Access Control List:

• Support up to 230 entries
• Time-Range

- Time Slice

- Week Time-Range

- Absolute Time-Range

- Holiday
