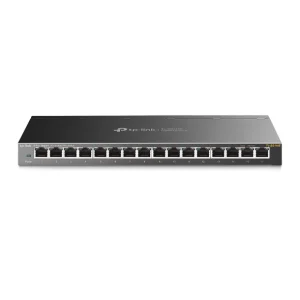

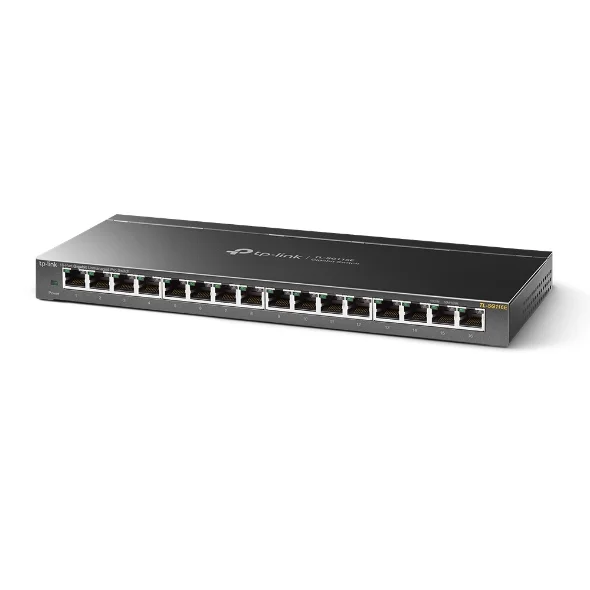

TP-Link TL-SG116E 16xGb easy smart desktop switch

TL-SG116E 16-Port Gigabit Easy Smart Switch, 16 Gigabit RJ45 Ports, Desktop Steel Case, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management The… Číst více

Kód: 5172221316 P/N: TL-SG116E EAN: 1210002617000
Skladem · Odešleme zítra
1 659 Kč s DPH
1 371 Kč bez DPH
Doprava zdarma od 5 000 Kč
•
Záruka 60 měsíců
1 659 Kč s DPH

TL-SG116E

16-Port Gigabit Easy Smart Switch, 16 Gigabit RJ45 Ports, Desktop Steel Case, MTU/Port/Tag-based VLAN, QoS, IGMP Snooping, Web/Utility Management

The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments.

HARDWARE FEATURES

Standards and Protocols> IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface:

  • 16 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation/AUTO MDI/MDIX

Network Media:

  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100? STP (maximum 100m)

Fan Quantity: Fanless

Power Supply: External Power Adapter(Output: 9VDC/0.6A)

Dimensions ( W x D x H ): 11.3*4.4*1.0 in. (286*111.7*25.4 mm)

Max Power Consumption: 9.19W(220V/50Hz)

Max Heat Dissipation: 31.36BTU/h

PERFORMANCE

Switching Capacity: 32Gbps

Packet Forwarding Rate: 23.81Mpps

MAC Address Table: 8K

Packet Buffer Memory: 4.1Mb

Jumbo Frame: 9KB

SOFTWARE FEATURES

Quality of Service:

  • Support Port-based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control

L2 Features:

  • IGMP Snooping V1/V2/V3
  • Static Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention

VLAN:

  • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  • MTU/Port/Tag VLAN

Transmission Method: Store-And-Forward

OTHERS

Certification: FCC, CE, RoHS

Package Contents:

  • TL-SG116E
  • Power Cord
  • Installation Guide
  • Rubber Feet

System Requirements: Microsoft® Windows® for running Utility

Environment:

  • Operating Temperature: 0?~40? (32?~104?)
  • Storage Temperature: -40?~70? (-40?~158?)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

Konektivita

Max rychlost LAN 1 Gbps
LAN porty 16
Switch
Optika
Provedení switche Desktop

Napájení

PoE výkon (W) Nevztahuje se
PoE Out standard Nepodporuje
PoE In standard Nepodporuje
PoE

Design

Bezventilátorový

Software

Správa Smart switch
