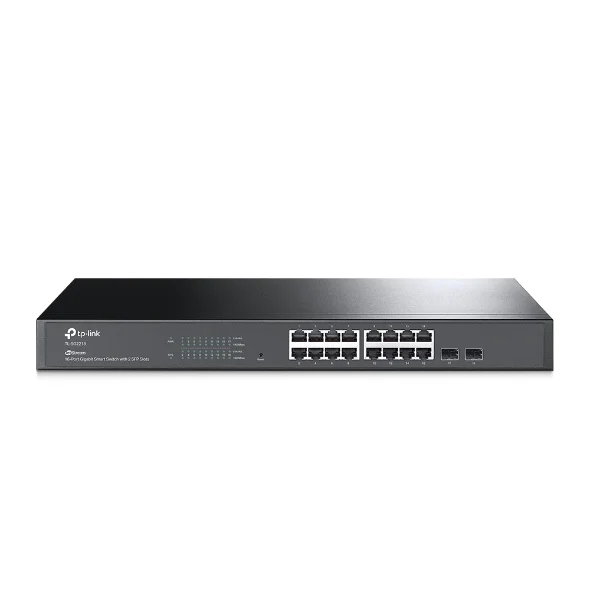

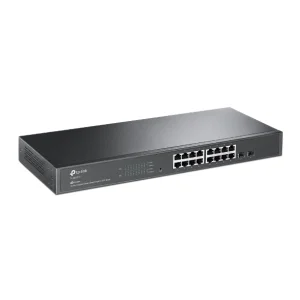

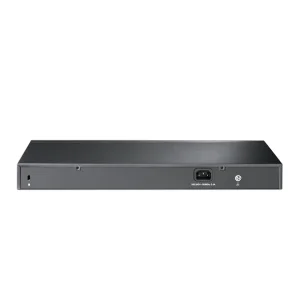

TP-Link TL-SG2218P 16xGb PoE+ 2xSFP smart

18portový gigabitový inteligentní switch JetStream s 16 porty PoE+

Platforma softwarově definovaných sítí Omada (SDN) integruje síťová zařízení, včetně přístupových bodů, switchů a bran, a poskytuje 100% centralizovanou cloudovou správu.

Technická specifikace

HARDWARE FEATURES

Standards and Protocols

• IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface

• 16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× Gigabit SFP Slots

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF

Fan Quantity

• 1

Power Supply

• 100-240V AC, 50/60Hz

PoE Ports (RJ45)

• Standard: 802.3at/af compliant
• PoE+ Ports: 16 Ports
• PoE Power Budget: 150 W*

Dimensions ( W x D x H )

• 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)

Mounting

• Rack Mountable

Max Power Consumption

• 181.4 W (110 V/60 Hz) (with 150 W PD connected)
• 178.3 W (220 V/50 Hz) (with 150 W PD connected)

Max Heat Dissipation

• 619.06 BTU/hr (110 V/60 Hz) (with 150 W PD connected)
• 608.52 BTU/hr (220 V/50 Hz) (with 150 W PD connected)

PERFORMANCE

Switching Capacity

• 36 Gbps

Packet Forwarding Rate

• 26.78 Mpps

MAC Address Table

• 8K

Packet Buffer Memory

• 4.1 Mbit

Jumbo Frame

• 9 KB

Software features

Quality of Service(QoS)

• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
• Queue Weight Config
• Bandwidth Control
• Smoother Performance
• Storm Control

L2 and L2+ Features

• 16 IP Interfaces
• Static Routing
• DHCP Server
• DHCP Relay
• Static ARP
• Proxy ARP
