Chipset:AMD B550
Rozměrový formát:ATX Form Factor; 30.5cm x 24.4cm
Podpora pro procesory:
- AMD Ryzen™ 5000 G-Series Processors
- AMD Ryzen™ 5000 Series Processors
- AMD Ryzen™ 4000 G-Series Processors
- AMD Ryzen™ 3000 G-Series Processors
- AMD Ryzen™ 3000 Series Processors
Patice procesoru:AM4
Paměť:
- 4x DDR4 DIMM sloty podporující až 128GB (32GB každý slot) paměti
- Podpora pro DDR 3200/2933/2667/2400/2133 MT/s moduly
- Dual channel memory architecture)
- Podpora pro ECC Un-buffered DIMM 1Rx8/2Rx8 moduly
- Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 moduly
- Podpora pro XMP
Grafické porty:
Integrated Graphics Processor with AMD Radeon™ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Zvuková karta:
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
Ethernet:Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Rozšiřující sloty:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode
Chipset:
- 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
RAID řadič:RAID 0, RAID 1, RAID 10
Úložný prostor:
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors

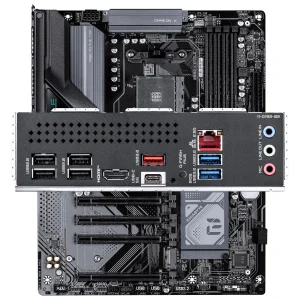

USB:
CPU:
- AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel
- AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 2 x USB 3.2 Gen 1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
